🧩 Blackmagic Products - Final Version
ENG / ä¸ć–‡
Professional Cameras
DaVinci Resolve and Fusion Software
ATEM Production Switchers
Ultimatte
Disk Recorders
Capture and Playback
Cintel Scanner
Standards Conversion
Broadcast Converters
Monitoring
Cloud and Network Storage
MultiView
Routing and Distribution
Streaming and Encoding
Compare Selected (max 4)
Clear Selection
Ultimatte
Ultimatte 12 4K
Add to Compare
View Details
Ultimatte 12 4K
Price:
HK$20,450
Description:
Ultimatte 12 4K is an advanced real time compositing processor designed for keying live action video with next generation broadcast graphics, virtual sets and more. Ultimatte 12 4K features new algorithms and color science, incredible edge handling and color separation, amazing color fidelity, and better spill suppression than ever before. The high performance 12G-SDI design gives you the power to work in Ultra HD and HD with sub pixel processing for an amazing image.
Sdi_Video_Inputs:
8
Sdi_Video_Outputs:
9.0
Sdi_Video_Loop_Outputs:
7 Reclocked SD, HD, Ultra HD for corresponding inputs.
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Video_Input_Resync:
On all inputs.
Reference_Connections:
1 x BNC In, 1 x BNC Out, 1 x RJ45 Ethernet Tri-Sync, Black Burst and PTP.
Gpio:
DE15
Ethernet:
Up to 10Gb/s for SMPTE 2110 IP video in and out, device control and loading stills into Media Pool.
Computer_Interface:
1 x USB-C 3.0 for device configuration and software updates.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40
Video_Sampling:
4:2:2
Color_Precision:
10-bit
Color_Space:
REC 601, REC 709, REC 2020.
Multiple_Rate_Support:
Auto detection of SD, HD, 6G‑SDI and 12G‑SDI.
Foreground:
1 x 12G-SDI In with Loop Out 1 x RJ45 Ethernet for SMPTE 2110 IP video
Background:
1 x 12G-SDI In with Loop Out Still from Media Pool
Background_Matte:
1 x 12G-SDI In with Loop Out Internal Window Still from Media Pool
Garbage_Matte:
1 x 12G-SDI In with Loop Out Internal Window Still from Media Pool
Holdout_Matte:
1 x 12G-SDI In with Loop Out Internal Window Still from Media Pool
Layer:
1 x 12G-SDI In with Loop Out Still from Media Pool
Layer_Matte:
1 x 12G-SDI In with Loop Out Internal Window Still from Media Pool
Fill:
2 x 12G-SDI
Matte:
2 x 12G-SDI
Program:
2 x 12G-SDI, 1 x RJ45 Ethernet for SMPTE 2110 IP video
Talent:
2 x 12G-SDI
Monitor_In:
1 x 12G-SDI for monitor cascade
Monitor_Out:
1 x 12G-SDI For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.
Background_Still_Image_Formats:
TGA, TIFF, BMP, PNG, JPG.
Background_With_Alpha_Still_Image_Formats:
TGA, TIFF, BMP.
Layer_Image_Still_Image_Formats:
TGA, TIFF, BMP, PNG, JPG.
Layer_With_Alpha_Still_Image_Formats:
TGA, TIFF, BMP.
Garbage_Matte_Still_Image_Formats:
TIFF, BMP, PNG, JPG.
Holdout_Matte_Still_Image_Formats:
TIFF, BMP, PNG, JPG.
Media_Pool_Memory:
6GB non-volatile internal storage.
Na:
Ultimatte 12 4K Welcome wallet with QR code for software download
Front_Panel:
2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob.
Control_Connection:
Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4.
Software_Control:
Ultimatte Software Control supported on Mac™ or Windows™ computers.
Hardware_Control_Panel:

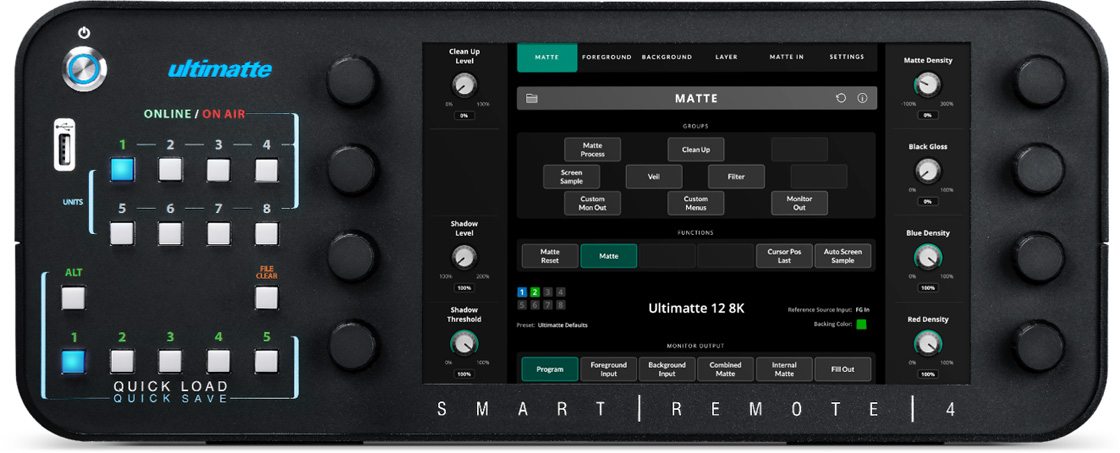

Ultimatte Smart Remote 4
Custom_Control:
Ethernet protocol and GPIO pin out included in the Ultimatte instruction manual.
Software_Updates:
Using USB‑C or Ethernet connection to Mac™ or Windows™ computers.
Configuration:
Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.
Power_Supply:
2 x Internal 100-240V AC, 50/60Hz
Power_Usage:
54W
Optional_Accessories:
Ultimatte Smart Remote 4
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing.
Connections:
SDI Video Inputs 8 SDI Video Outputs 9 SDI Video Loop Outputs 7 Reclocked SD, HD, Ultra HD for corresponding inputs. SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. ST 2110 Video Inputs 1 ST 2110 Video Outputs 1 Video Input Re-Sync On all inputs. Reference Connections 1 x BNC In, 1 x BNC Out, 1 x RJ45 Ethernet Tri-Sync, Black Burst and PTP. GPIO DE15 Ethernet Up to 10Gb/s for SMPTE 2110 IP video in and out, device control and loading stills into Media Pool. Computer Interface 1 x USB-C 3.0 for device configuration and software updates.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40 Video Sampling 4:2:2 Color Precision 10-bit Color Space REC 601, REC 709, REC 2020. Multiple Rate Support Auto detection of SD, HD, 6G‑SDI and 12G‑SDI.
Composite_Sources:
Foreground 1 x 12G-SDI In with Loop Out 1 x RJ45 Ethernet for SMPTE 2110 IP video Background 1 x 12G-SDI In with Loop Out Still from Media Pool Background Matte 1 x 12G-SDI In with Loop Out Internal Window Still from Media Pool Garbage Matte 1 x 12G-SDI In with Loop Out Internal Window Still from Media Pool Holdout Matte 1 x 12G-SDI In with Loop Out Internal Window Still from Media Pool Layer 1 x 12G-SDI In with Loop Out Still from Media Pool Layer Matte 1 x 12G-SDI In with Loop Out Internal Window Still from Media Pool
Composite_Outputs:
Fill 2 x 12G-SDI Matte 2 x 12G-SDI Program 2 x 12G-SDI, 1 x RJ45 Ethernet for SMPTE 2110 IP video Talent 2 x 12G-SDI
Monitor:
Monitor In 1 x 12G-SDI for monitor cascade Monitor Out 1 x 12G-SDI For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.
Media_Pool:
Background Still Image Formats TGA, TIFF, BMP, PNG, JPG. Background with Alpha Still Image Formats TGA, TIFF, BMP. Layer Image Still Image Formats TGA, TIFF, BMP, PNG, JPG. Layer with Alpha Still Image Formats TGA, TIFF, BMP. Garbage Matte Still Image Formats TIFF, BMP, PNG, JPG. Holdout Matte Still Image Formats TIFF, BMP, PNG, JPG. Media Pool Memory 6GB non-volatile internal storage.
Displays:
Built in 2.2 inch color display for device name, video preview, video standard audio meters, status and menus.
Control:
Front Panel 2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob. Control Connection Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4. Software Control Ultimatte Software Control supported on Mac™ or Windows™ computers. Hardware Control Panel Ultimatte Smart Remote 4 Custom Control Ethernet protocol and GPIO pin out included in the Ultimatte instruction manual.
Software:
Software Updates Using USB‑C or Ethernet connection to Mac™ or Windows™ computers. Configuration Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11.
Power_Requirements:
Power Supply 2 x Internal 100-240V AC, 50/60Hz Power Usage 54W
Accessories:
Optional Accessories Ultimatte Smart Remote 4
Physical_Installation:
1 rack unit height
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing.
St_2110_Video_Inputs:
1.0
St_2110_Video_Outputs:
1.0
Smpte_211020:
IGMP v2
Smpte_211021:
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_211030:
Audio Conformance level: Level C
Smpte_211040:
Access to SMPTE ancillary data stream RPÂ 188/SMPTEÂ 12M-2
Precision_Time_Protocol:
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is04:
v1.3.2 Peer-to-peer via mDNS/DNS-SD
Nmos_Is05:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Ip_Compliance:
SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Access to SMPTE ancillary data stream RPÂ 188/SMPTEÂ 12M-2 Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Src:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-4k-sm.jpg?_v=1662099706
Col_1120w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-4k-md.jpg?_v=1662099705
Col_1324w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-4k-xl.jpg?_v=1662099705
Col_662w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-4k-sm.jpg?_v=1662099706
Ultimatte 12 8K
Add to Compare
View Details

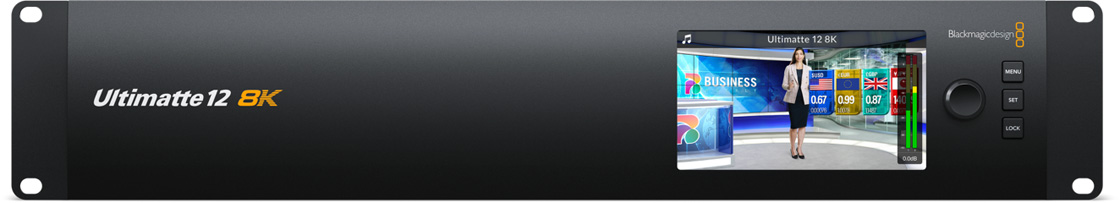

Ultimatte 12 8K
Price:
HK$57,300
Description:
Ultimatte 12 8K is an advanced real time compositing processor designed for keying live action video with next generation broadcast graphics, virtual sets and more. Ultimatte 12 8K features new algorithms and color science, incredible edge handling and color separation, amazing color fidelity, and better spill suppression than ever before. The high performance Quad Link 12G-SDI design gives you the power to work in HD, Ultra HD and incredible 8K with sub pixel processing for an amazing image.
Sdi_Video_Inputs:
32
Sdi_Video_Outputs:
20.0
Sdi_Video_Loop_Outputs:
20 reclocked SD, HD, Ultra HD, 8K for corresponding inputs.
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Video_Input_Resync:
On all inputs.
Reference_Connections:
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Gpio:
DE15
Ethernet:
Up to 10Gb/s for device control and loading stills into Media Pool.
Computer_Interface:
1 x USB-C 3.0 for device configuration and software updates.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_8k_Video_Standards:
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2081-12, SMPTE 2082-11 and SMPTE 2082-12.
Video_Sampling:
4:2:2
Color_Precision:
10-bit
Color_Space:
REC 601, REC 709, REC 2020.
Multiple_Rate_Support:
Auto detection of SD, HD, 6G‑SDI, 12G-SDI, 2SI Quad Link 12G‑SDI, 2SI Dual Link 12G‑SDI and 2SI Quad Link 6G‑SDI.
Foreground:
4 x 12G-SDI In with Loop Out
Background:
4 x 12G-SDI In with Loop Out Still from Media Pool
Background_Matte:
4 x 12G-SDI In with Loop Out Internal Window Still from Media Pool
Garbage_Matte:
4 x 12G-SDI In Internal Window Still from Media Pool
Holdout_Matte:
4 x 12G-SDI In Internal Window Still from Media Pool
Layer:
4 x 12G-SDI In with Loop Out Still from Media Pool
Layer_Matte:
4 x 12G-SDI In with Loop Out Internal Window Still from Media Pool
Fill:
4 x 12G-SDI
Matte:
4 x 12G-SDI
Program:
4 x 12G-SDI
Talent:
4 x 12G-SDI
Monitor_In:
4 x 12G-SDI for monitor cascade
Monitor_Out:
4 x 12G-SDI For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.
Background_Still_Image_Formats:
TGA, TIFF, BMP, PNG, JPG.
Background_With_Alpha_Still_Image_Formats:
TGA, TIFF, BMP.
Layer_Image_Still_Image_Formats:
TGA, TIFF, BMP, PNG, JPG.
Layer_With_Alpha_Still_Image_Formats:
TGA, TIFF, BMP.
Garbage_Matte_Still_Image_Formats:
TIFF, BMP, PNG, JPG.
Holdout_Matte_Still_Image_Formats:
TIFF, BMP, PNG, JPG.
Media_Pool_Memory:
6GB non-volatile internal storage.
Na:
Ultimatte 12 8K Welcome wallet with QR code for software download
Front_Panel:
5 inch color display with 3 menu buttons and spin knob.
Control_Connection:
Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4.
Software_Control:
Ultimatte Software Control supported on Mac™ or Windows™ computers.
Hardware_Control_Panel:
Ultimatte Smart Remote 4
Custom_Control:
Ethernet protocol and GPIO pin out included in the Ultimatte instruction manual.
Software_Updates:
Using USB‑C or Ethernet connection to Mac™ or Windows™ computers.
Configuration:
Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.
Power_Supply:
2 x Internal 100-240V AC, 50/60Hz
Power_Usage:
218W
Optional_Accessories:
Ultimatte Smart Remote 4
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing.
Connections:
SDI Video Inputs 32 SDI Video Outputs 20 SDI Video Loop Outputs 20 reclocked SD, HD, Ultra HD, 8K for corresponding inputs. SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Video Input Re-Sync On all inputs. Reference Connections 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. GPIO DE15 Ethernet Up to 10Gb/s for device control and loading stills into Media Pool. Computer Interface 1 x USB-C 3.0 for device configuration and software updates.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 8K Video Standards 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2081-12, SMPTE 2082-11 and SMPTE 2082-12. Video Sampling 4:2:2 Color Precision 10-bit Color Space REC 601, REC 709, REC 2020. Multiple Rate Support Auto detection of SD, HD, 6G‑SDI, 12G-SDI, 2SI Quad Link 12G‑SDI, 2SI Dual Link 12G‑SDI and 2SI Quad Link 6G‑SDI.
Composite_Sources:
Foreground 4 x 12G-SDI In with Loop Out Background 4 x 12G-SDI In with Loop Out Still from Media Pool Background Matte 4 x 12G-SDI In with Loop Out Internal Window Still from Media Pool Garbage Matte 4 x 12G-SDI In Internal Window Still from Media Pool Holdout Matte 4 x 12G-SDI In Internal Window Still from Media Pool Layer 4 x 12G-SDI In with Loop Out Still from Media Pool Layer Matte 4 x 12G-SDI In with Loop Out Internal Window Still from Media Pool
Composite_Outputs:
Fill 4 x 12G-SDI Matte 4 x 12G-SDI Program 4 x 12G-SDI Talent 4 x 12G-SDI
Monitor:
Monitor In 4 x 12G-SDI for monitor cascade Monitor Out 4 x 12G-SDI For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.
Media_Pool:
Background Still Image Formats TGA, TIFF, BMP, PNG, JPG. Background with Alpha Still Image Formats TGA, TIFF, BMP. Layer Image Still Image Formats TGA, TIFF, BMP, PNG, JPG. Layer with Alpha Still Image Formats TGA, TIFF, BMP. Garbage Matte Still Image Formats TIFF, BMP, PNG, JPG. Holdout Matte Still Image Formats TIFF, BMP, PNG, JPG. Media Pool Memory 6GB non-volatile internal storage.
Displays:
Built in 5 inch color display for device name, video preview, audio meters and menus.
Control:
Front Panel 5 inch color display with 3 menu buttons and spin knob. Control Connection Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4. Software Control Ultimatte Software Control supported on Mac™ or Windows™ computers. Hardware Control Panel Ultimatte Smart Remote 4 Custom Control Ethernet protocol and GPIO pin out included in the Ultimatte instruction manual.
Software:
Software Updates Using USB‑C or Ethernet connection to Mac™ or Windows™ computers. Configuration Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11.
Power_Requirements:
Power Supply 2 x Internal 100-240V AC, 50/60Hz Power Usage 218W
Accessories:
Optional Accessories Ultimatte Smart Remote 4
Physical_Installation:
2 rack units height.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing.
Src:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-8k-sm.jpg?_v=1662428264
Col_1120w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-8k-md.jpg?_v=1662428263
Col_1324w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-8k-xl.jpg?_v=1662428261
Col_662w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-8k-sm.jpg?_v=1662428264

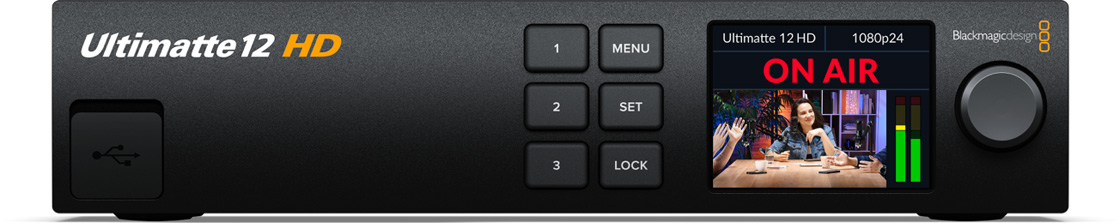

Ultimatte 12 HD
Add to Compare
View Details
Ultimatte 12 HD
Price:
HK$7,350
Description:
Ultimatte 12 HD is an advanced real time compositing processor designed for keying live action video with next generation broadcast graphics, virtual sets and more. Ultimatte 12 HD features new algorithms and color science, incredible edge handling and color separation, amazing color fidelity, and better spill suppression than ever before. The high performance 3G-SDI design gives you the power to work in HD with sub pixel processing for an amazing image.
Sdi_Video_Inputs:
5
Sdi_Video_Outputs:
4.0
Sdi_Video_Loop_Outputs:
1 reclocked SD or HD Camera FG.
Sdi_Rates:
270Mb, 1.5G, 3G.
Video_Input_Resync:
On all inputs.
Reference_Connections:
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
Gpio:
DE15
Ethernet:
Up to 1Gb/s for device control and loading stills into Media Pool.
Computer_Interface:
1 x USB-C 3.0 for device configuration and software updates.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video_Sampling:
4:2:2
Color_Precision:
10-bit
Color_Space:
REC 601, REC 709, REC 2020.
Multiple_Rate_Support:
Auto detection of SD and HD.
Foreground:
1 x 3G-SDI In with Loop Out
Background:
1 x 3G-SDI In Still from Media Pool
Background_Matte:
Internal Window Still from Media Pool
Garbage_Matte:
1 x 3G-SDI In Internal Window Still from Media Pool
Holdout_Matte:
1 x 3G-SDI In Internal Window Still from Media Pool
Layer:
Still from Media Pool
Layer_Matte:
Internal Window Still from Media Pool
Fill:
1 x 3G-SDI
Matte:
1 x 3G-SDI
Program:
1 x 3G-SDI
Monitor_In:
1 x 3G-SDI for monitor cascade
Monitor_Out:
1 x 3G-SDI For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.
Background_Still_Image_Formats:
TGA, TIFF, BMP, PNG, JPG.
Background_With_Alpha_Still_Image_Formats:
TGA, TIFF, BMP.
Layer_Image_Still_Image_Formats:
TGA, TIFF, BMP, PNG, JPG.
Layer_With_Alpha_Still_Image_Formats:
TGA, TIFF, BMP.
Garbage_Matte_Still_Image_Formats:
TIFF, BMP, PNG, JPG.
Holdout_Matte_Still_Image_Formats:
TIFF, BMP, PNG, JPG.
Media_Pool_Memory:
6GB non-volatile internal storage.
Na:
Ultimatte 12 HD Welcome wallet with QR code for software download
Front_Panel:
2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob.
Control_Connection:
Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4.
Software_Control:
Ultimatte Software Control supported on Mac™ or Windows™ computers.
Hardware_Control_Panel:
Ultimatte Smart Remote 4
Custom_Control:
Ethernet protocol and GPIO pin out included in the Ultimatte instruction manual.
Software_Updates:
Using USB‑C or Ethernet connection to Mac™ or Windows™ computers.
Configuration:
Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.
Power_Supply:
1 x Internal 100-240V AC, 50/60Hz
Power_Usage:
15W
Optional_Accessories:
Ultimatte Smart Remote 4
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing.
Connections:
SDI Video Inputs 5 SDI Video Outputs 4 SDI Video Loop Outputs 1 reclocked SD or HD Camera FG. SDI Rates 270Mb, 1.5G, 3G. Video Input Re-Sync On all inputs. Reference Connections 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. GPIO DE15 Ethernet Up to 1Gb/s for device control and loading stills into Media Pool. Computer Interface 1 x USB-C 3.0 for device configuration and software updates.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. Video Sampling 4:2:2 Color Precision 10-bit Color Space REC 601, REC 709, REC 2020. Multiple Rate Support Auto detection of SD and HD.
Composite_Sources:
Foreground 1 x 3G-SDI In with Loop Out Background 1 x 3G-SDI In Still from Media Pool Background Matte Internal Window Still from Media Pool Garbage Matte 1 x 3G-SDI In Internal Window Still from Media Pool Holdout Matte 1 x 3G-SDI In Internal Window Still from Media Pool Layer Still from Media Pool Layer Matte Internal Window Still from Media Pool
Composite_Outputs:
Fill 1 x 3G-SDI Matte 1 x 3G-SDI Program 1 x 3G-SDI
Monitor:
Monitor In 1 x 3G-SDI for monitor cascade Monitor Out 1 x 3G-SDI For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.
Media_Pool:
Background Still Image Formats TGA, TIFF, BMP, PNG, JPG. Background with Alpha Still Image Formats TGA, TIFF, BMP. Layer Image Still Image Formats TGA, TIFF, BMP, PNG, JPG. Layer with Alpha Still Image Formats TGA, TIFF, BMP. Garbage Matte Still Image Formats TIFF, BMP, PNG, JPG. Holdout Matte Still Image Formats TIFF, BMP, PNG, JPG. Media Pool Memory 6GB non-volatile internal storage.
Displays:
Built in 2.2 inch color display for device name, video preview, video standard audio meters, status and menus.
Control:
Front Panel 2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob. Control Connection Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4. Software Control Ultimatte Software Control supported on Mac™ or Windows™ computers. Hardware Control Panel Ultimatte Smart Remote 4 Custom Control Ethernet protocol and GPIO pin out included in the Ultimatte instruction manual.
Software:
Software Updates Using USB‑C or Ethernet connection to Mac™ or Windows™ computers. Configuration Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11.
Power_Requirements:
Power Supply 1 x Internal 100-240V AC, 50/60Hz Power Usage 15W
Accessories:
Optional Accessories Ultimatte Smart Remote 4
Physical_Installation:
Half rack unit width, 1 rack unit height.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing.
Src:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-hd-sm.jpg?_v=1662347918
Col_1120w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-hd-md.jpg?_v=1662347918
Col_1324w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-hd-xl.jpg?_v=1662347918
Col_662w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-hd-sm.jpg?_v=1662347918

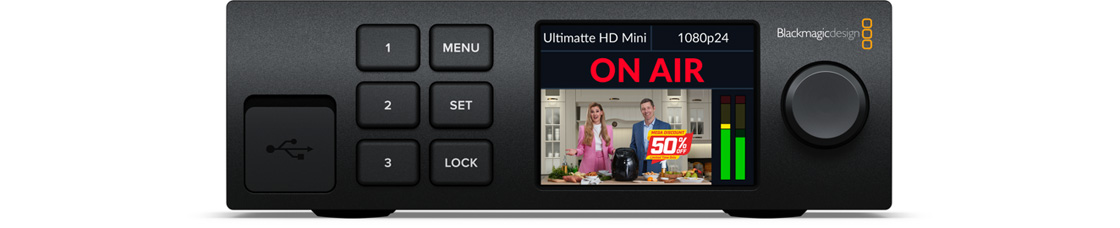

Ultimatte 12 HD Mini
Add to Compare
View Details
Ultimatte 12 HD Mini
Price:
HK$4,100
Description:
Ultimatte 12 HD Mini is an advanced real time keyer designed for creating next generation virtual sets and more with consumer cameras. The HDMI connections are perfect for use with Blackmagic Studio Cameras, Pocket Cinema Cameras and ATEM Mini live production switchers. Plus there’s a massive 6 GB frame store for realistic fixed camera virtual sets from pre rendered still frames. Ultimatte 12 HD Mini features broadcast quality algorithms and color science to deliver photorealistic composites.
Sdi_Video_Inputs:
2 Monitor In for monitor cascade plus Return In for camera control.
Sdi_Video_Outputs:
2.0
Sdi_Rates:
270Mb, 1.5G, 3G.
Video_Input_Resync:
On all inputs.
Ethernet:
Up to 1Gb/s for device control and loading stills into Media Pool.
Computer_Interface:
1 x USB-C 3.0 for device configuration and software updates.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video_Sampling:
4:2:2
Color_Precision:
10-bit
Color_Space:
REC 601, REC 709.
Multiple_Rate_Support:
Auto detection of SD and HD.
Foreground:
1 x HDMI In
Background:
1 x HDMI In Still from Media Pool
Background_Matte:
Internal Window Still from Media Pool
Garbage_Matte:
Internal Window Still from Media Pool
Holdout_Matte:
Internal Window Still from Media Pool
Layer:
Still from Media Pool
Layer_Matte:
Internal Window Still from Media Pool
Program:
1 x HDMI 1 x 3G-SDI
Monitor_In:
1 x 3G-SDI for monitor cascade
Monitor_Out:
1 x 3G-SDI For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.
Background_Still_Image_Formats:
TGA, TIFF, BMP, PNG, JPG.
Background_With_Alpha_Still_Image_Formats:
TGA, TIFF, BMP.
Layer_Image_Still_Image_Formats:
TGA, TIFF, BMP, PNG, JPG.
Layer_With_Alpha_Still_Image_Formats:
TGA, TIFF, BMP.
Garbage_Matte_Still_Image_Formats:
TIFF, BMP, PNG, JPG.
Holdout_Matte_Still_Image_Formats:
TIFF, BMP, PNG, JPG.
Media_Pool_Memory:
6GB non-volatile internal storage.
Na:
Ultimatte 12 HD Mini Welcome wallet with QR code for software download
Front_Panel:
2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob.
Control_Connection:
Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4.
Software_Control:
Ultimatte Software Control supported on Mac™ or Windows™ computers.
Hardware_Control_Panel:
Ultimatte Smart Remote 4
Custom_Control:
Ethernet protocol included in the Ultimatte instruction manual.
Software_Updates:
Using USB‑C or Ethernet connection to Mac™ or Windows™ computers.
Configuration:
Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.
Power_Supply:
1 x Internal 100-240V AC, 50/60Hz
Power_Usage:
12W
Optional_Accessories:
Ultimatte Smart Remote 4
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing.
Connections:
SDI Video Inputs 2 Monitor In for monitor cascade plus Return In for camera control. SDI Video Outputs 2 HDMI Video Inputs 2 HDMI Video Outputs 1 Video Input Re-Sync On all inputs. SDI Rates 270Mb, 1.5G, 3G. Ethernet Up to 1Gb/s for device control and loading stills into Media Pool. Computer Interface 1 x USB-C 3.0 for device configuration and software updates.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. Video Sampling 4:2:2 Color Precision 10-bit Color Space REC 601, REC 709. Multiple Rate Support Auto detection of SD and HD.
Composite_Sources:
Foreground 1 x HDMI In Background 1 x HDMI In Still from Media Pool Background Matte Internal Window Still from Media Pool Garbage Matte Internal Window Still from Media Pool Holdout Matte Internal Window Still from Media Pool Layer Still from Media Pool Layer Matte Internal Window Still from Media Pool
Composite_Outputs:
Program 1 x HDMI 1 x 3G-SDI
Monitor:
Monitor In 1 x 3G-SDI for monitor cascade Monitor Out 1 x 3G-SDI For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.
Media_Pool:
Background Still Image Formats TGA, TIFF, BMP, PNG, JPG. Background with Alpha Still Image Formats TGA, TIFF, BMP. Layer Image Still Image Formats TGA, TIFF, BMP, PNG, JPG. Layer with Alpha Still Image Formats TGA, TIFF, BMP. Garbage Matte Still Image Formats TIFF, BMP, PNG, JPG. Holdout Matte Still Image Formats TIFF, BMP, PNG, JPG. Media Pool Memory 6GB non-volatile internal storage.
Displays:
Built in 2.2 inch color display for device name, video preview, video standard audio meters, status and menus.
Control:
Front Panel 2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob. Control Connection Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4. Software Control Ultimatte Software Control supported on Mac™ or Windows™ computers. Hardware Control Panel Ultimatte Smart Remote 4 Camera Control Blackmagic camera control and tally supported when used with compatible cameras and ATEM switchers. Custom Control Ethernet protocol included in the Ultimatte instruction manual.
Software:
Software Updates Using USB‑C or Ethernet connection to Mac™ or Windows™ computers. Configuration Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10, 64-bit. Windows 11.
Power_Requirements:
Power Supply 1 x Internal 100-240V AC, 50/60Hz Power Usage 12W
Accessories:
Optional Accessories Ultimatte Smart Remote 4
Physical_Installation:
One third rack unit width, 1 rack unit height.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing.
Hdmi_Video_Inputs:
2.0
Hdmi_Video_Outputs:
1.0
Camera_Control:
Blackmagic camera control and tally supported when used with compatible cameras and ATEM switchers.
Src:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-hd-mini-sm.jpg?_v=1662099836
Col_1120w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-hd-mini-md.jpg?_v=1662099836
Col_1324w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-hd-mini-xl.jpg?_v=1662099836
Col_662w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-12-hd-mini-sm.jpg?_v=1662099836

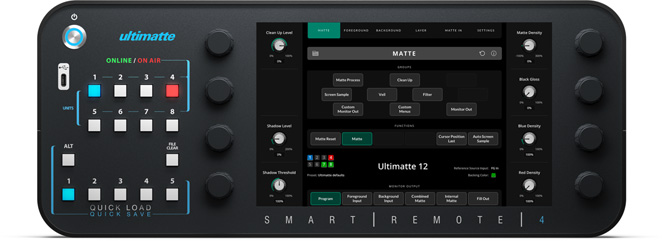

Ultimatte Smart Remote 4
Add to Compare
View Details
Ultimatte Smart Remote 4
Price:
HK$32,750
Description:
Now you can control up to 8 different Ultimatte 12 units at the same time via Ethernet. Smart Remote 4 features a 10.1 inch touchscreen for quickly navigating menus and adjusting settings, along with hard buttons with online and on air indicators for quickly switching between units. The file clear button automatically adjusts the most important settings to instantly give you incredible composites!
Ethernet:
2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12.
Na:
1 Year Limited Manufacturer’s Warranty.
Software_Updates:
Software updates via USB to load Smart Remote utility.
Power_Supply:
100 - 240V AC.
Power_Usage:
24W
Operating_Temperature:
0° to 35°C (32° to 95°F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing.
Connections:
Software Updates 2 x USB 2.0 and 1 x USB 3.0 for software updates. SVGA and Display Port Outputs SVGA and Display Port outputs allows for graphics to be viewed on an external monitor. Ethernet 2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12. RS-422 2 x for controlling Ultimatte 11.
Control:
Touchscreen 10.1 inch 1280 x 800 colour display panel. Integrated capacitive touchscreen with onscreen controls for settings and navigating menus.
Software:
Software Updates Software updates via USB to load Smart Remote utility.
Operating_Systems:
Windows 10, 64-bit.
Power_Requirements:
Power Supply 100 - 240V AC. Power Usage 24W
Physical_Installation:
Adjustable desk mounting option.
Environmental_Specifications:
Operating Temperature 0° to 35°C (32° to 95°F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing.
Svga_And_Display_Port_Outputs:
SVGA and Display Port outputs allows for graphics to be viewed on an external monitor.
Rs422:
2 x for controlling Ultimatte 11.
Rotary_Knobs:
8 x rotary knobs for adjusting parameters.
Unit_Id_Buttons:
8 x buttons. Illuminated blue for active.
Unit_Id_Led_Indicators:
Illuminated green for online and red for on air.
Alt_Quick_Loadsave_Buttons:
Alt button plus 5 buttons for saving presets.
Quick_Loadsave_Buttons:
5 x buttons for loading presets.
File_Clear_Button:
1 x button for Auto Key.
Alt_File_Clear:
Alt button plus file clear button for Auto Key using some user defined presets.
Customizable_Menus:
4 x menus for building your own menu with your most used controls.
Led_Control:
User adjustable brightness control for LEDs.
Fan_Speed_Control:
User adjustable.
Touchscreen:
10.1 inch 1280 x 800 colour display panel. Integrated capacitive touchscreen with onscreen controls for settings and navigating menus.
Product_Specifics:
Rotary Knobs 8 x rotary knobs for adjusting parameters. Unit ID Buttons 8 x buttons. Illuminated blue for active. Unit ID LED Indicators Illuminated green for online and red for on air. Alt + Quick Load/Save Buttons Alt button plus 5 buttons for saving presets. Quick Load/Save Buttons 5 x buttons for loading presets. File Clear Button 1 x button for Auto Key. Alt + File Clear Alt button plus file clear button for Auto Key using some user defined presets. Customizable Menus 4 x menus for building your own menu with your most used controls. LED Control User adjustable brightness control for LEDs. Fan Speed Control User adjustable.
Warranty:
1 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-smart-remote-4-sm.jpg?_v=1661835753
Col_1120w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-smart-remote-4-md.jpg?_v=1661835753
Col_1324w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-smart-remote-4-xl.jpg?_v=1661835753
Col_662w:
https://images.blackmagicdesign.com/images/products/ultimatte/techspecs/hero/ultimatte-smart-remote-4-sm.jpg?_v=1661835753
×
