đ§Š Blackmagic Products - Final Version
ENG / ä¸ć
Professional Cameras
DaVinci Resolve and Fusion Software
ATEM Production Switchers
Ultimatte
Disk Recorders
Capture and Playback
Cintel Scanner
Standards Conversion
Broadcast Converters
Monitoring
Cloud and Network Storage
MultiView
Routing and Distribution
Streaming and Encoding
Compare Selected (max 4)
Clear Selection
DaVinci Resolve and Fusion Software
DaVinci Resolve Replay Editor
Add to Compare
View Details

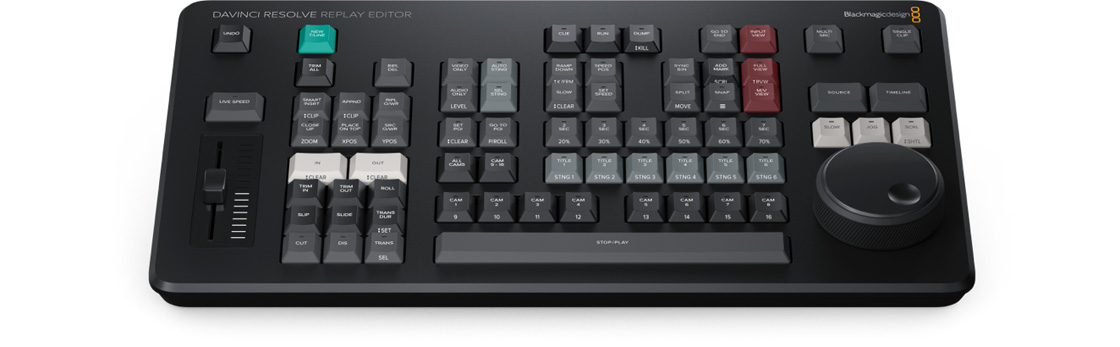

DaVinci Resolve Replay Editor
Price:
HK$4,100
Description:
Editor panel specifically designed for multi-cam editing for news cutting and live sports replay. Includes buttons to make camera selection and editing extremely fast! Connects via Bluetooth or USBâC.
Computer_Interface:
USB TypeâC.
Na:
1 Year Limited Manufacturerâs Warranty.
Power_Supply:
Internal battery with power switch. USB-C port for external power supply and battery charging.
Power_Usage:
6 W max.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Computer Interface USB TypeâC. Bluetooth Bluetooth 5.1 LE
Operating_Systems:
Mac 14.3 Sonoma or later. Windows 10 Creators Update Windows 11 Windows 11 for ARM Rocky Linux 8.6
Power_Requirements:
Power Supply Internal battery with power switch. USB-C port for external power supply and battery charging. Power Usage 6 W max.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
DaVinci Resolve Replay Editor Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturerâs Warranty.
Bluetooth:
Bluetooth 5.1 LE
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-sm.jpg?_v=1721707845
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-md.jpg?_v=1721707844
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-xl.jpg?_v=1721707844
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-sm.jpg?_v=1721707845

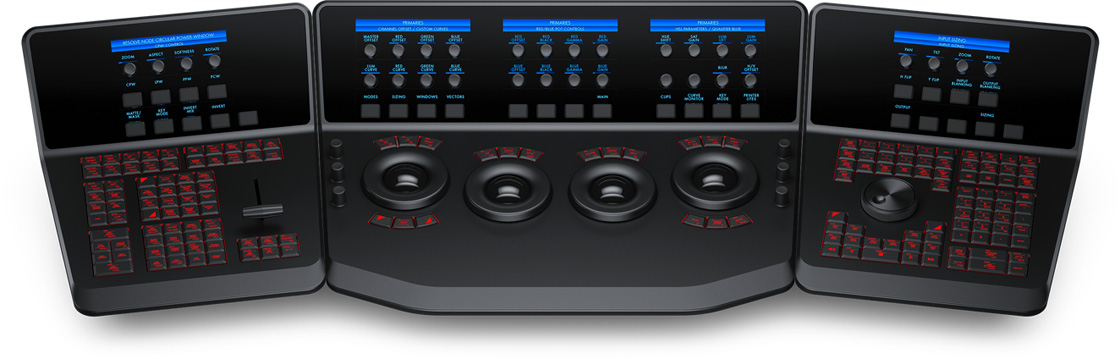

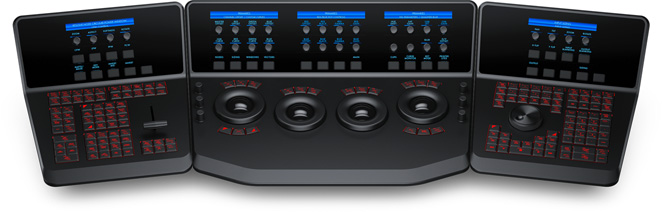

DaVinci Resolve Advanced Panel
Add to Compare
View Details
DaVinci Resolve Advanced Panel
Price:
HK$225,950
Description:
Designed with three ergonomically connected control surfaces and a pull out keyboard, DaVinci Resolve Advanced Panel gives you complete command of every color grading session! Each correction control has a separate soft key, knob, high resolution weighted trackball or ring so you can experiment quicker to create a wider range of looks!
Computer_Interface:
USB TypeâB connector on each panel.
Power_Supply:
External 100 - 240V AC 1.5A 50/60Hz with IEC C14 mains input.
Power_Usage:
80W max.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
Computer Interface USB TypeâB connector on each panel. USB Loop Out 2 x loop out USB TypeâA connectors for side panels. USB Hub 2 x USB TypeâA connectors for a mouse and other USB devices. Software Updates USB Type MiniâB connectors on each panel for factory software updates. 12V Power Input Centre 3âpin 3W3 DâSub connector on Trackball Panel. 3âpin 3W3 DâSub connector on the Search Dial and Tâbar Panels. 12V Power Output Left and right 3âpin 3W3 DâSub connectors on Trackball Panel.
Power_Requirements:
Power Supply External 100 - 240V AC 1.5A 50/60Hz with IEC C14 mains input. Power Usage 80W max.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11 Rocky Linux 8.6
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
DaVinci Resolve Advanced Trackball Panel DaVinci Resolve Advanced Search Dial Panel DaVinci Resolve Advanced T-bar Panel DaVinci Resolve Advanced Panel Dongle DaVinci Resolve Studio Activation Key 12V Power Supply with IEC C14 Mains Inlet 2 x 1m 3âpin Inter Panel Power Cables 3 x 2m USB TypeâA to TypeâB Cables
Warranty:
1 Year Limited Manufacturerâs Warranty.
Usb_Hub:
2 x USB TypeâA connectors for a mouse and other USB devices.
Usb_Loop_Out:
2 x loop out USB TypeâA connectors for side panels.
Software_Updates:
USB Type MiniâB connectors on each panel for factory software updates.
Col_12v_Power_Input:
Centre 3âpin 3W3 DâSub connector on Trackball Panel. 3âpin 3W3 DâSub connector on the Search Dial and Tâbar Panels.
Col_12v_Power_Output:
Left and right 3âpin 3W3 DâSub connectors on Trackball Panel.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-advanced-panel-sm.jpg?_v=1602221976
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-advanced-panel-md.jpg?_v=1602221976
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-advanced-panel-xl.jpg?_v=1602221975
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-advanced-panel-sm.jpg?_v=1602221976
DaVinci Resolve Editor Keyboard
Add to Compare
View Details

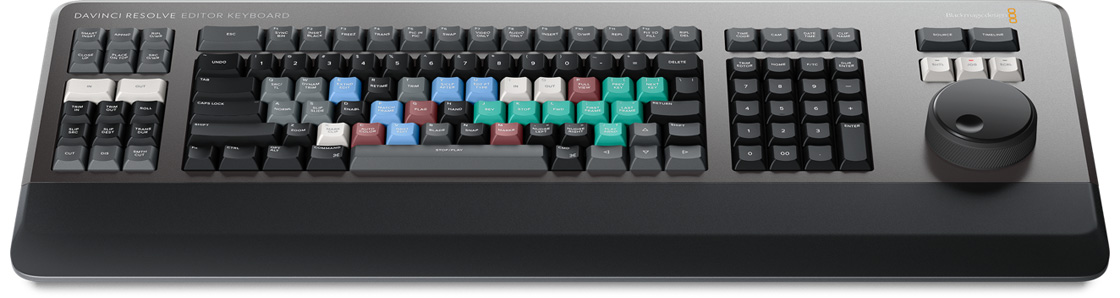

DaVinci Resolve Editor Keyboard
Price:
HK$4,900
Description:
DaVinci Resolve Editor Keyboard is designed for professional editors who need to work faster and turn around work quickly. More than just a simple keyboard, DaVinci Resolve Editor Keyboard provides an alternative way to edit that is much faster than a mouse because you can use both hands at the same time! You also get an integrated search dial built right into the keyboard. Simply plug the keyboard into any computerâs USBâC connection and you are ready to go! While most keys work as a standard USB keyboard, DaVinci Resolve Editor Keyboard has also been designed to enable a dramatically faster editing experience with DaVinci Resolve.
Computer_Interface:
USB TypeâC.
Power_Usage:
8W max via USB TypeâC.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
Computer Interface USB TypeâC. USB Hub 2 x USB TypeâA for a mouse and other USB devices.
Power_Requirements:
Power Usage 8W max via USB TypeâC.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11 Windows 11 for ARM Rocky Linux 8.6
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
DaVinci Resolve Editor Keyboard DaVinci Resolve Studio activation key
Warranty:
1 Year Limited Manufacturerâs Warranty.
Usb_Hub:
2 x USB TypeâA for a mouse and other USB devices.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-editor-keyboard-sm.jpg?_v=1602124829
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-editor-keyboard-md.jpg?_v=1602124829
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-editor-keyboard-xl.jpg?_v=1602124829
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-editor-keyboard-sm.jpg?_v=1602124829
DaVinci Resolve Micro Color Panel
Add to Compare
View Details

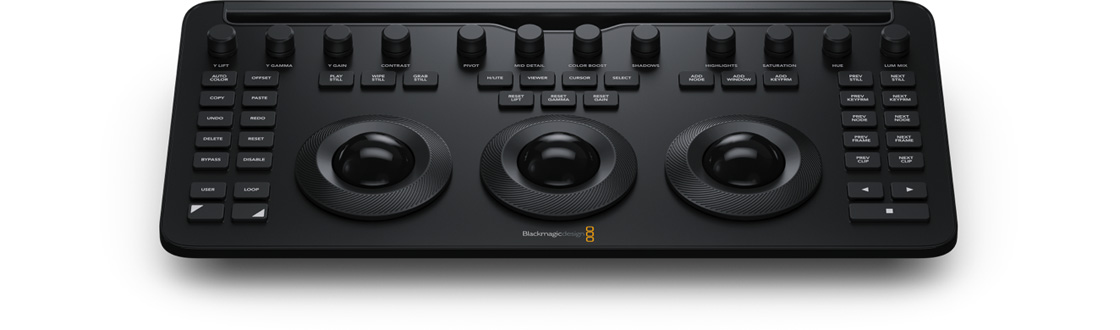

DaVinci Resolve Micro Color Panel
Price:
HK$4,100
Description:
The DaVinci Resolve Micro Color Panel is a compact yet powerful color panel that gives you all the control you need to create cinematic images. The Micro Panel features a row of direct control knobs at the top of the panel, three trackballs with rings for color grading and transport keys to speed up your grading session. Includes controls for refined color grading including adding windows and a tablet slot designed to hold an Apple iPad. Connects via Bluetooth or USBâC.
Computer_Interface:
USB TypeâC.
Bluetooth:
Bluetooth 5.1 LE
Power_Supply:
Internal battery with power switch. USB-C port for external power supply and battery charging.
Power_Usage:
3 W max.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
Computer Interface USB TypeâC. Bluetooth Bluetooth 5.1 LE
Power_Requirements:
Power Supply Internal battery with power switch. USB-C port for external power supply and battery charging. Power Usage 3 W max.
Operating_Systems:
Mac 14.3 Sonoma or later. Windows 11 Rocky Linux 8.6
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
DaVinci Resolve Micro Color Panel Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturerâs Warranty.
Labels:
Localized button options: English, Chinese, French, German, Italian, Japanese, Korean, Portuguese, Spanish, Thai, Vietnamese.
Languages:
Labels Localized button options: English, Chinese, French, German, Italian, Japanese, Korean, Portuguese, Spanish, Thai, Vietnamese.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-micro-color-panel-sm.jpg?_v=1712569143
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-micro-color-panel-md.jpg?_v=1712569143
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-micro-color-panel-xl.jpg?_v=1712569143
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-micro-color-panel-sm.jpg?_v=1712569143

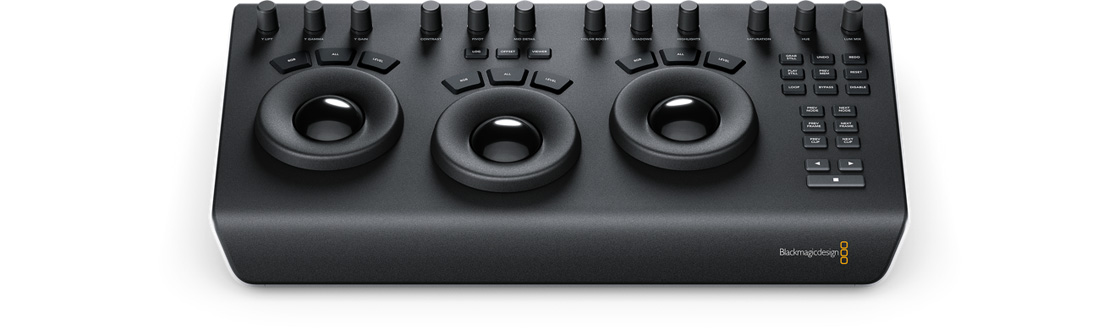

DaVinci Resolve Micro Panel
Add to Compare
View Details
DaVinci Resolve Micro Panel
Price:
HK$6,850
Description:
A remarkably small, portable hardware control panel, DaVinci Resolve Micro Panel has 3 high resolution weighted trackballs, 12 control knobs for essential tools, 18 dedicated navigation and transport keys, and more!
Computer_Interface:
USB TypeâC.
Power_Usage:
2W max via USB TypeâC.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
Computer Interface USB TypeâC.
Power_Requirements:
Power Usage 2W max via USB TypeâC.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11 Rocky Linux 8.6
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
DaVinci Resolve Micro Panel DaVinci Resolve Studio activation key
Warranty:
1 Year Limited Manufacturerâs Warranty.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-micro-panel-sm.jpg?_v=1602221617
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-micro-panel-md.jpg?_v=1602221617
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-micro-panel-xl.jpg?_v=1602221617
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-micro-panel-sm.jpg?_v=1602221617

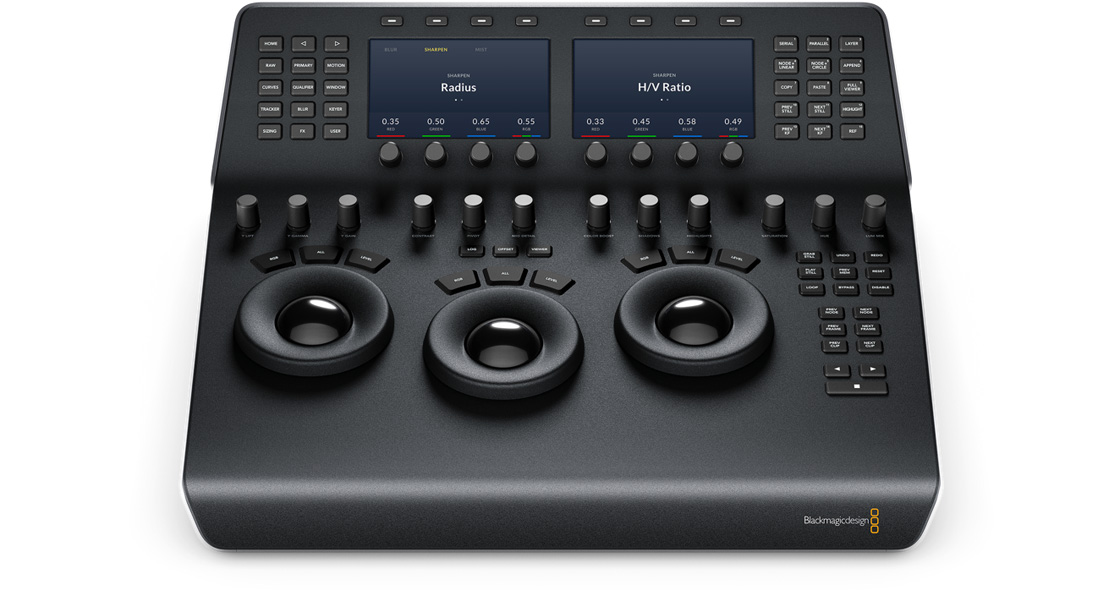

DaVinci Resolve Mini Panel
Add to Compare
View Details
DaVinci Resolve Mini Panel
Price:
HK$16,850
Description:
A compact professional hardware control panel featuring 3 high resolution weighted trackballs, 12 control knobs for essential tools and an upper deck with two 5â screens, DaVinci Resolve Mini Panel has 8 soft knobs and 8 soft buttons, and dedicated keys for switching tools, working with nodes, grabbing stills, navigating the timeline and more!
Computer_Interface:
USB TypeâC.
Power_Supply:
Internal 100 - 240V AC 1.5A 50/60Hz with IEC C14 mains input.
Power_Usage:
17W max.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
Computer Interface USB TypeâC. Ethernet 1 x Ethernet connection supporting 10/100/1000 BaseT with PoE. 1 x Ethernet connection supporting 10/100/1000 BaseT. Power 1 x IEC C14 mains input. 1 x +12V DC 4âpin XLR. 1 x Ethernet with PoE.
Power_Requirements:
Power Supply Internal 100 - 240V AC 1.5A 50/60Hz with IEC C14 mains input. Power Usage 17W max.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11 Rocky Linux 8.6
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
DaVinci Resolve Mini Panel DaVinci Resolve Studio activation key
Warranty:
1 Year Limited Manufacturerâs Warranty.
Ethernet:
1 x Ethernet connection supporting 10/100/1000 BaseT with PoE. 1 x Ethernet connection supporting 10/100/1000 BaseT.
Power:
1 x IEC C14 mains input. 1 x +12V DC 4âpin XLR. 1 x Ethernet with PoE.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-mini-panel-sm.jpg?_v=1602222105
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-mini-panel-md.jpg?_v=1602222105
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-mini-panel-xl.jpg?_v=1602222105
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-mini-panel-sm.jpg?_v=1602222105
DaVinci Resolve Replay Editor
Add to Compare
View Details
DaVinci Resolve Replay Editor
Price:
HK$4,100
Description:
Editor panel specifically designed for multi-cam editing for news cutting and live sports replay. Includes buttons to make camera selection and editing extremely fast! Connects via Bluetooth or USBâC.
Computer_Interface:
USB TypeâC.
Bluetooth:
Bluetooth 5.1 LE
Power_Supply:
Internal battery with power switch. USB-C port for external power supply and battery charging.
Power_Usage:
6 W max.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
Computer Interface USB TypeâC. Bluetooth Bluetooth 5.1 LE
Power_Requirements:
Power Supply Internal battery with power switch. USB-C port for external power supply and battery charging. Power Usage 6 W max.
Operating_Systems:
Mac 14.3 Sonoma or later. Windows 10 Creators Update Windows 11 Windows 11 for ARM Rocky Linux 8.6
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
DaVinci Resolve Replay Editor Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturerâs Warranty.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-sm.jpg?_v=1721707845
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-md.jpg?_v=1721707844
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-xl.jpg?_v=1721707844
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-sm.jpg?_v=1721707845

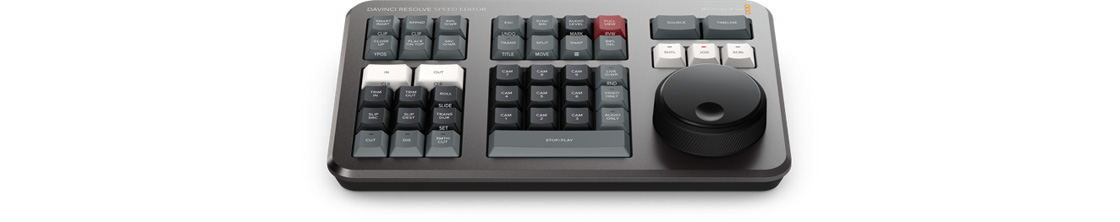

DaVinci Resolve Speed Editor
Add to Compare
View Details
DaVinci Resolve Speed Editor
Price:
HK$3,250
Description:
DaVinci Resolve Speed Editor is designed for professional editors who need to work faster and turn around work quickly. With dedicated buttons and a high quality jog shuttle knob, itâs much faster than a mouse! Simply plug DaVinci Resolve Speed Editor into any computerâs USBâC connection or use Bluetooth BLE and you are ready to go!
Power_Usage:
4W max via USB TypeâC.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
USB TypeâC.
Power_Requirements:
Power Usage 4W max via USB TypeâC.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11 Windows 11 for ARM Rocky Linux 8.6
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
DaVinci Resolve Speed Editor DaVinci Resolve Studio activation key
Warranty:
1 Year Limited Manufacturerâs Warranty.
Updates_And_Configuration:
1 x USB TypeâC for software configuration and software updates.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-speed-editor-sm.jpg?_v=1602125479
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-speed-editor-md.jpg?_v=1602125479
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-speed-editor-xl.jpg?_v=1602125478
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-speed-editor-sm.jpg?_v=1602125479

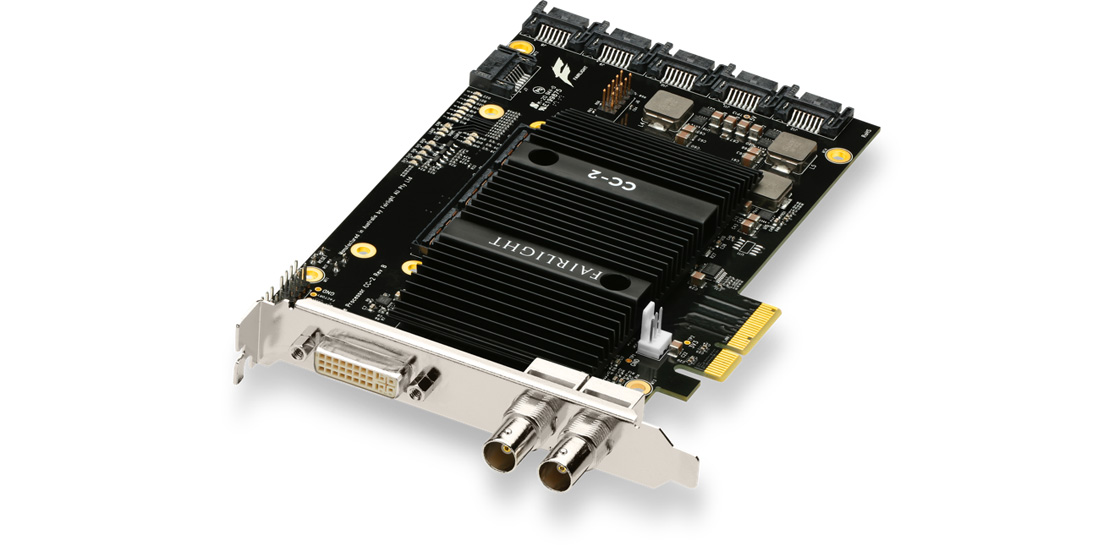

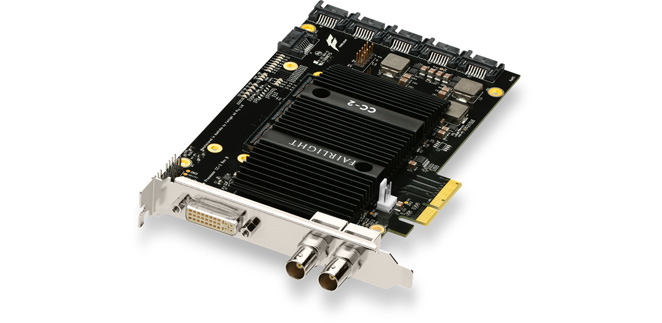

Fairlight Audio Accelerator
Add to Compare
View Details
Fairlight Audio Accelerator
Price:
HK$9,300
Description:
Fairlight Audio Accelerator with DaVinci Resolve offers ultra low latency for up to 2000 tracks, cascading bus management with FlexBus and real time processing, and one coax MADI I/O with up to 64 inputs and outputs at 24 bit/48kHz! The single width PCIe card connects to the Fairlight Audio Interface with a proprietary interface to synchronize to house reference via the interface word clock, AES, MADI or HD Triâsync or reference video inputs.
Power_Usage:
14W
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
MADI Inputs 1 x MADI input via 75 ohm BNC MADI Outputs 1 x MADI output via 75 ohm BNC MADI Expansion Supports Fairlight Audio MADI Upgrade via SATA connectors 1, 2 and 3. I/O Expansion Supports Fairlight Audio Interface via multiâpin connector on shield. PCI Form Factor Single half length PCIe x4 board
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Fairlight Audio Accelerator
Warranty:
1 Year Limited Manufacturerâs Warranty.
Power:
Power Usage 14W
Product_Specifics:
Sampling 44.1, 48, 96 and 192 KHz with minimum 32 bit floating point processing. Channel Structure Verified using Mac Pro 7,1 with Intel CPU. Core Audio Track count organized from mono to 26.0. 2000 Mono Audio Tracks at 48kHz. 1000 Mono Audio Tracks at 96kHz. 500 Mono Audio Tracks at 192kHz. Total Busses 256 Busses plus 512 Bus elements at 48kHz. 256 Busses plus 256 Bus elements at 96kHz. 256 Busses plus 128 Bus elements at 192kHz. Record Channels 128 at 48kHz. 64 at 96kHz. 32 at 192kHz. Additional Record Channels When used with Core Audio plus Fairlight Accelerator. 256 at 48kHz. 128 at 96kHz. 64 at 192kHz. Channel Facilities Elastic wave time warping and sample rate conversion. Six band EQ. Expander/gate, compressor and limiter. Up to six Resolve, VST or AU plugins. Direct out. Four band clip based EQ. Up to six Resolve, VST or AU clip based plugins. Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D channel formats. In place solo. Up to 16 VCA groups. FlexBus Structure Up to 512 mono bus elements, organized in any format from mono to 26.0. Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D bus formats. Up to 10 bus sends per channel and bus with independent level control. Up to 10 post fader bus sends per channel and bus. Automatic and flexible delay compensation. Bus Facilities Four band EQ. Compressor and limiter. Up to six Resolve, VST or AU pre fader plugins. Direct out. Plug-ins Up to six Resolve, VST or AU plug-ins on any channel or bus. Tactile control of plug-ins from the Fairlight audio editor. Plug-ins are fully controllable with automation. Monitoring Up to four simultaneous sources. Source from internal buses or external inputs. Up to 16 different speaker sets. Customizable fold up and fold down when crossing formats. Optional B-Chain processor for cinematic setups with up to 64 speakers.
Madi_Inputs:
1 x MADI input via 75 ohm BNC
Madi_Outputs:
1 x MADI output via 75 ohm BNC
Madi_Expansion:
Supports Fairlight Audio MADI Upgrade via SATA connectors 1, 2 and 3.
Io_Expansion:
Supports Fairlight Audio Interface via multiâpin connector on shield.
Pci_Form_Factor:
Single half length PCIe x4Â board
Sampling:
44.1, 48, 96 and 192 KHz with minimum 32 bit floating point processing.
Channel_Structure:
Verified using Mac Pro 7,1 with Intel CPU.
Core_Audio:
Track count organized from mono to 26.0. 2000 Mono Audio Tracks at 48kHz. 1000 Mono Audio Tracks at 96kHz. 500 Mono Audio Tracks at 192kHz.
Total_Busses:
256 Busses plus 512 Bus elements at 48kHz. 256 Busses plus 256 Bus elements at 96kHz. 256 Busses plus 128 Bus elements at 192kHz.
Record_Channels:
128 at 48kHz. 64 at 96kHz. 32 at 192kHz.
Additional_Record_Channels:
When used with Core Audio plus Fairlight Accelerator. 256 at 48kHz. 128 at 96kHz. 64 at 192kHz.
Channel_Facilities:
Elastic wave time warping and sample rate conversion. Six band EQ. Expander/gate, compressor and limiter. Up to six Resolve, VST or AU plugins. Direct out. Four band clip based EQ. Up to six Resolve, VST or AU clip based plugins. Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D channel formats. In place solo. Up to 16 VCA groups.
Flexbus_Structure:
Up to 512 mono bus elements, organized in any format from mono to 26.0. Mono, stereo, 5.1, 7.1 up to 26.0 and other 3D bus formats. Up to 10 bus sends per channel and bus with independent level control. Up to 10 post fader bus sends per channel and bus. Automatic and flexible delay compensation.
Bus_Facilities:
Four band EQ. Compressor and limiter. Up to six Resolve, VST or AU pre fader plugins. Direct out.
Plugins:
Up to six Resolve, VST or AU plug-ins on any channel or bus. Tactile control of plug-ins from the Fairlight audio editor. Plug-ins are fully controllable with automation.
Monitoring:
Up to four simultaneous sources. Source from internal buses or external inputs. Up to 16 different speaker sets. Customizable fold up and fold down when crossing formats. Optional B-Chain processor for cinematic setups with up to 64 speakers.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-audio-accelerator-sm.jpg?_v=1601698185
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-audio-accelerator-md.jpg?_v=1601698185
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-audio-accelerator-xl.jpg?_v=1601698185
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-audio-accelerator-sm.jpg?_v=1601698185

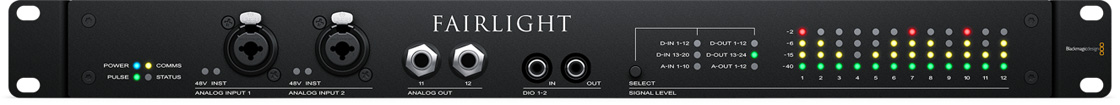

Fairlight Audio Interface
Add to Compare
View Details
Fairlight Audio Interface
Price:
HK$19,500
Description:
Fairlight Audio Interface is a professional audio post production I/O interface with an extensive variety of analog and digital inputs and outputs, preamps for microphones and instruments, built in sample rate conversion, sync at any standard frame rate and dual 9âpin control ports! Fairlight Audio Interface requires Fairlight Audio Accelerator and connects to the Fairlight Audio Interface with a supplied proprietary interface cable.
Power_Supply:
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power_Usage:
40W
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
Analog Audio Inputs 2 x remote controlled XLR/TRS microphone inputs with 48v phantom power / instrument preamps. 8 x +24dBu balanced analog inputs. Analog Audio Outputs 12 x +24dBu balanced analog outputs with mute protection. Digital Audio Inputs 9 x fully transformer coupled AES stereo digital inputs. 1 x S/PDIF input with sample-rate conversion. Digital Audio Outputs 11 x AES stereo digital outputs. 1 x stereo digital S/PDIF output. Standard 25pin Tascam interface for Analog and AES looms. Sync Input 1 x 75 ohm BNC Reference input. TriâSync or Black Burst. 1 x 75 ohm BNC word clock input. Sync Output 1 x 75 ohm BNC Reference loop out. TriâSync or Black Burst. 1 x 75 ohm BNC word clock regenerated output. Sync to all common frame rates and formats including HD Triâlevel sync, video sync, wordâclock and AES/EBU. Device Control 1 x RS-422 9-pin machine control input. 1 x RS-422 9-pin machine control output. Timecode Timecode input and output with regeneration. MIDI For future use GPIO GPI and GPO connections for cough and âOnâAirâ control
Power_Requirements:
Power Supply Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. Power Usage 40W Power Management Automatically powered-on/off only when the Fairlight Audio Accelerator is powered on.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Fairlight Audio Interface Fairlight Audio Interface multi-pin cable to connect to Fairlight Audio Accelerator.
Warranty:
1 Year Limited Manufacturerâs Warranty.
Analog_Audio_Inputs:
2 x remote controlled XLR/TRS microphone inputs with 48v phantom power / instrument preamps. 8 x +24dBu balanced analog inputs.
Analog_Audio_Outputs:
12 x +24dBu balanced analog outputs with mute protection.
Digital_Audio_Inputs:
9 x fully transformer coupled AES stereo digital inputs. 1 x S/PDIF input with sample-rate conversion.
Digital_Audio_Outputs:
11 x AES stereo digital outputs. 1 x stereo digital S/PDIF output. Standard 25pin Tascam interface for Analog and AES looms.
Sync_Input:
1 x 75 ohm BNC Reference input. TriâSync or Black Burst. 1 x 75 ohm BNC word clock input.
Sync_Output:
1 x 75 ohm BNC Reference loop out. TriâSync or Black Burst. 1 x 75 ohm BNC word clock regenerated output. Sync to all common frame rates and formats including HD Triâlevel sync, video sync, wordâclock and AES/EBU.
Device_Control:
1 x RS-422 9-pin machine control input. 1 x RS-422 9-pin machine control output.
Timecode:
Timecode input and output with regeneration.
Midi:
For future use
Gpio:
GPI and GPO connections for cough and âOnâAirâ control
Sample_Rate:
44.1, 48, 96, 192 kHz
Max_Input:
Inputs 1-2 (mic): +2.5dBu Inputs 1-2 (instrument): +24dBu Inputs 3-10 (Line): +24dBu
Gain_Range:
Inputs 1-2: Mic Inputs: 50dB gain range (+21.5 to +71.5dB) Inputs 1-2 : Instrument Setting: 50dB gain range (+0 to +50dB)
Mic_Ein_Unweighted:
Inputs 1-2: -127dBu @40dB (61.5dB) Gain: 150 ohm source, 20Hz - 20kHz THD+N (mic input) Inputs 1-2: <0.001%@ 1kHz, -1 dBFS at 0dB gain Inputs 1-2: <0.004%@ 1kHz, -1 dBFS at 40dB (61.5dB) gain
Thdn_Line_Input:
Inputs 1-2: <0.001%@ 1kHz, -1 dBFS after 0dB gain (unweighted) Inputs 3-10 : <0.001 % @ 1 kHz (unweighted)
Dynamic_Range_Line_Input:
Inputs 1-2 : 108dB @ 0dB gain (unweighted) Inputs 3-10: 110dB (unweighted)
Input_Frequency_Response:
+0.05/-0.05dB, 20Hz - 20kHz
Input_Impedance:
Inputs 1-2 (XLR) : 2k ohm Inputs 1-2 (1/4"): >1M ohm Inputs 3-10: 15k ohm
Max_Output:
Outputs 1-12: +24 dBu
Thdn_Line_Outputs:
Outputs 1-12: <0.002%
Dynamic_Range_Line_Output:
Outputs 1-12 : 109 dB (unweighted)
Output_Frequency_Response:
+0.05/-0.5dB, 20Hz - 20kHz
Output_Impedance:
Outputs 1-12 : 50 ohms
Power_Management:
Automatically powered-on/off only when the Fairlight Audio Accelerator is powered on.
Product_Specifics:
Sample Rate 44.1, 48, 96, 192 kHz Max Input Inputs 1-2 (mic): +2.5dBu Inputs 1-2 (instrument): +24dBu Inputs 3-10 (Line): +24dBu Gain Range Inputs 1-2: Mic Inputs: 50dB gain range (+21.5 to +71.5dB) Inputs 1-2 : Instrument Setting: 50dB gain range (+0 to +50dB) Mic E.I.N (unweighted) Inputs 1-2: -127dBu @40dB (61.5dB) Gain: 150 ohm source, 20Hz - 20kHz THD+N (mic input) Inputs 1-2: <0.001%@ 1kHz, -1 dBFS at 0dB gain Inputs 1-2: <0.004%@ 1kHz, -1 dBFS at 40dB (61.5dB) gain THD+N (line input) Inputs 1-2: <0.001%@ 1kHz, -1 dBFS after 0dB gain (unweighted) Inputs 3-10 : <0.001 % @ 1 kHz (unweighted) Dynamic Range (line input) Inputs 1-2 : 108dB @ 0dB gain (unweighted) Inputs 3-10: 110dB (unweighted) Input Frequency Response +0.05/-0.05dB, 20Hz - 20kHz Input Impedance Inputs 1-2 (XLR) : 2k ohm Inputs 1-2 (1/4"): >1M ohm Inputs 3-10: 15k ohm Max Output Outputs 1-12: +24 dBu THD+N (Line Outputs) Outputs 1-12: <0.002% Dynamic Range (Line Output) Outputs 1-12 : 109 dB (unweighted) Output Frequency Response +0.05/-0.5dB, 20Hz - 20kHz Output Impedance Outputs 1-12 : 50 ohms
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-audio-interface-sm.jpg?_v=1601683734
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-audio-interface-md.jpg?_v=1601683733
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-audio-interface-xl.jpg?_v=1601683733
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-audio-interface-sm.jpg?_v=1601683734

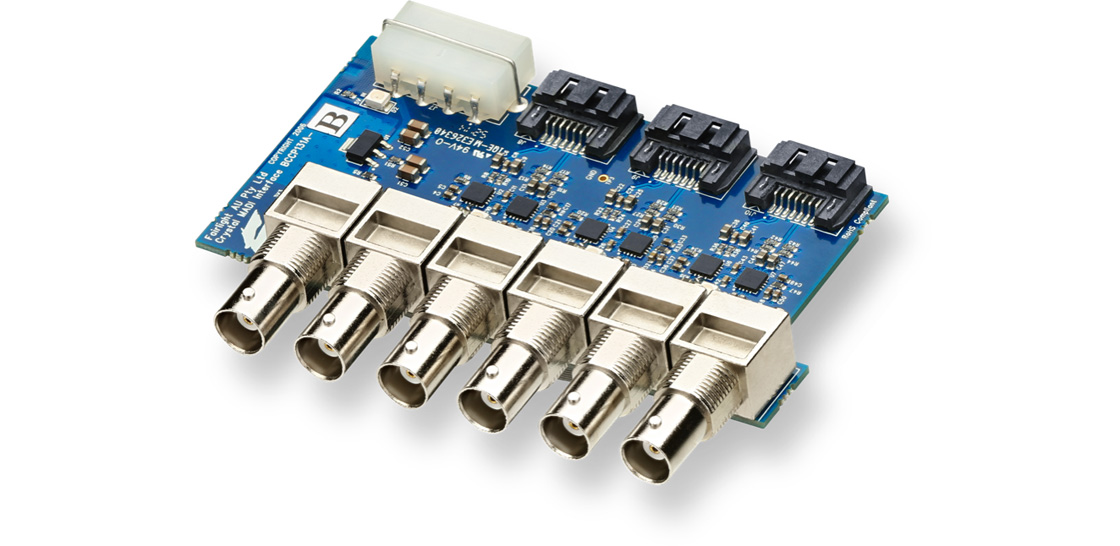

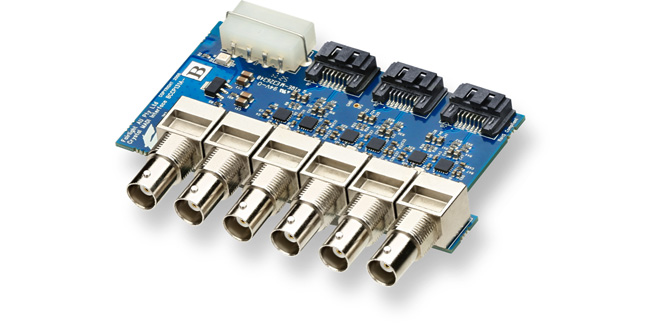

Fairlight Audio MADI Upgrade
Add to Compare
View Details
Fairlight Audio MADI Upgrade
Price:
HK$1,650
Description:
Fairlight Audio MADI Upgrade adds three coax MADI input and output connections to the single MADI on the Fairlight Accelerator card. That gives you a total of four MADI inputs and four MADI outputs for 256 inputs and outputs each at 24 bit / 48kHz!
Power_Usage:
4W
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
MADI Inputs 3 x MADI inputs via 75 ohm BNCs MADI Outputs 3 x MADI outputs via 75 ohm BNCs Audio Channels Total of 192 inputs and outputs Bit Depth and Sample Rate 24 bit / 48kHz PCI Form Factor Single half length PCIe x4 board Power 4âpin computer power cable connector. Hardware Requirements Requires Fairlight Audio Accelerator. PCIe Requirements Connection to Fairlight Audio Accelerator using three SATA cables. Fairlight Audio MADI Upgrade board requires no additional PCIe bandwidth.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Fairlight Audio MADI Upgrade 3 x 30cm SATA cables. 1 x computer power cable.
Warranty:
1 Year Limited Manufacturerâs Warranty.
Power:
Power Usage 4W
Madi_Inputs:
3 x MADI inputs via 75 ohm BNCs
Madi_Outputs:
3 x MADI outputs via 75 ohm BNCs
Pci_Form_Factor:
Single half length PCIe x4Â board
Audio_Channels:
Total of 192 inputs and outputs
Bit_Depth_And_Sample_Rate:
24 bit / 48kHz
Hardware_Requirements:
Requires Fairlight Audio Accelerator.
Pcie_Requirements:
Connection to Fairlight Audio Accelerator using three SATA cables. Fairlight Audio MADI Upgrade board requires no additional PCIe bandwidth.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-audio-madi-upgrade-sm.jpg?_v=1601698661
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-audio-madi-upgrade-md.jpg?_v=1601698660
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-audio-madi-upgrade-xl.jpg?_v=1601698660
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-audio-madi-upgrade-sm.jpg?_v=1601698661

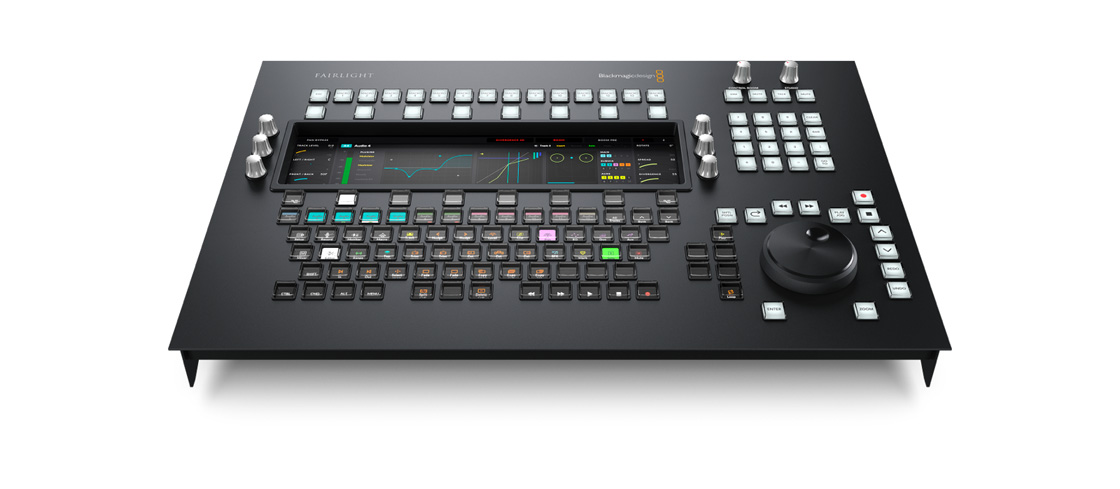

Fairlight Console Audio Editor
Add to Compare
View Details
Fairlight Console Audio Editor
Price:
HK$37,150
Description:
As part of a full console, Fairlight Console Audio Editor provides incredible speed and control for professional sound editors working on tight deadlines! You get quick access controls for high speed precision audio editing that let you work much faster than you could with a traditional mouse. The elegant design features an interactive LCD screen, touch sensitive control knobs, macro buttons, number pad, high quality search dial with electronic clutch and full keyboard with multi function picture keys that change based on your current task! Simply connect Fairlight Console Audio Editor by ethernet directly to your console. The menus and controls are designed with more than 20 years of professional audio engineer guidance and use, so itâs optimized for any project you can throw at it!
Power_Supply:
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power_Usage:
20W max.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
Ethernet Ethernet supports 10/100/1000 BaseT. Updates and Configuration 1 x USB TypeâC for software configuration and software updates.
Power_Requirements:
Power Supply Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. Power Usage 20W max.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11 Windows 11 for ARM Rocky Linux 8.6
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Fairlight Console Audio Editor
Warranty:
1 Year Limited Manufacturerâs Warranty.
Updates_And_Configuration:
1 x USB TypeâC for software configuration and software updates.
Ethernet:
Ethernet supports 10/100/1000Â BaseT.
Software:
Internal software upgrade via updater application.
Settings_Control:
Fairlight Studio and Console setup utility software when connected by USB.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-audio-editor-sm.jpg?_v=1604553738
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-audio-editor-md.jpg?_v=1604553738
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-audio-editor-xl.jpg?_v=1604553737
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-audio-editor-sm.jpg?_v=1604553738

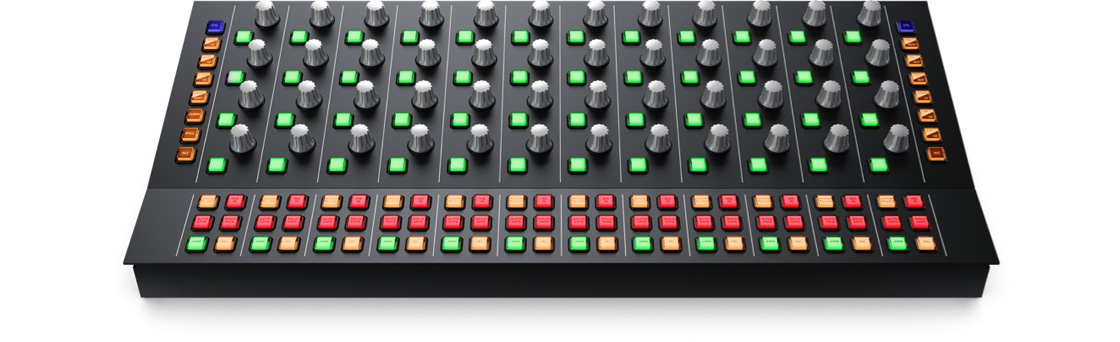

Fairlight Console Channel Control
Add to Compare
View Details
Fairlight Console Channel Control
Price:
HK$20,450
Description:
Fairlight Console Channel Control is a multi function panel designed to extend the functionality of your channel faders. You get 12 groups of touch sensitive control knobs and illuminated buttons that can be assigned to a single channel, the 12 adjacent fader channels or the master bus. This gives you fast access to 192 different parameter controls per channel! Your selections control the LCD monitor so you have a precise display of your changes as you make them.
Power_Supply:
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power_Usage:
20W max.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
Ethernet Ethernet supports 10/100/1000Â BaseT.
Power_Requirements:
Power Supply Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. Power Usage 20W max.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11 Windows 11 for ARM Rocky Linux 8.6
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Fairlight Console Channel Control
Warranty:
1 Year Limited Manufacturerâs Warranty.
Updates_And_Configuration:
1 x USB TypeâC for software configuration and software updates.
Ethernet:
Ethernet supports 10/100/1000Â BaseT.
Software:
Internal software upgrade via updater application.
Settings_Control:
Fairlight Studio and Console setup utility software when connected by USB.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-channel-control-sm.jpg?_v=1603758598
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-channel-control-md.jpg?_v=1603758597
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-channel-control-xl.jpg?_v=1603758597
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-channel-control-sm.jpg?_v=1603758598

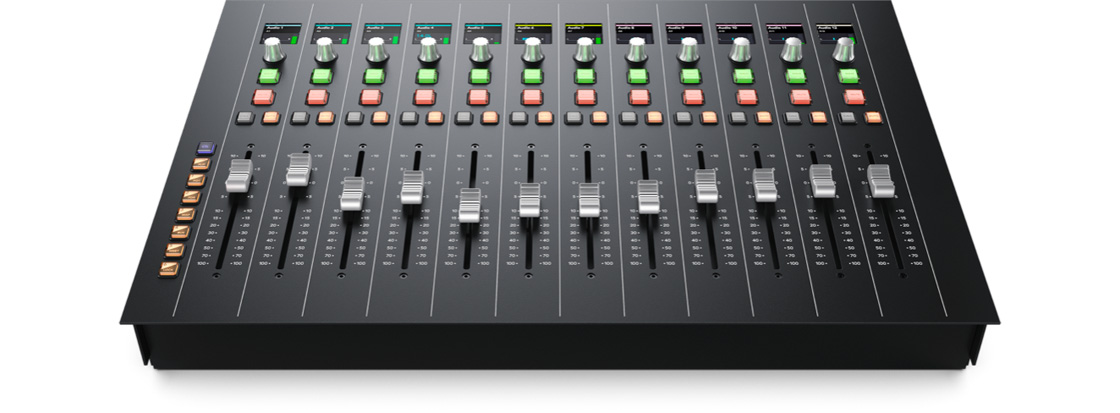

Fairlight Console Channel Fader
Add to Compare
View Details
Fairlight Console Channel Fader
Price:
HK$33,400
Description:
Fairlight Console Channel Fader gives you full mixing and automation control with 12 touch sensitive motorized faders, pan knobs, tally buttons and LCD displays for each channel, as well as automation controls and bank buttons for mapping tracks and buses to the faders! The faders are sculpted and weighted for comfort and feature smooth gliding, high precision motors that provide the sensitivity and feedback you need for the most sophisticated mixing sessions! Each channel strip features an LED display for track status along with mute, solo, call and automation buttons, and a customizable soft knob for panning.
Power_Supply:
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power_Usage:
20W max.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
Ethernet Ethernet supports 10/100/1000 BaseT. Updates and Configuration 1 x USB TypeâC for software configuration and software updates. Software Internal software upgrade via updater application. Settings Control Fairlight Studio and Console setup utility software when connected by USB.
Power_Requirements:
Power Supply Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. Power Usage 20W max.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11 Windows 11 for ARM Rocky Linux 8.6
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Fairlight Console Channel Fader
Warranty:
1 Year Limited Manufacturerâs Warranty.
Updates_And_Configuration:
1 x USB TypeâC for software configuration and software updates.
Ethernet:
Ethernet supports 10/100/1000Â BaseT.
Software:
Internal software upgrade via updater application.
Settings_Control:
Fairlight Studio and Console setup utility software when connected by USB.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-channel-fader-sm.jpg?_v=1603758598
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-channel-fader-md.jpg?_v=1603758598
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-channel-fader-xl.jpg?_v=1603758598
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-channel-fader-sm.jpg?_v=1603758598

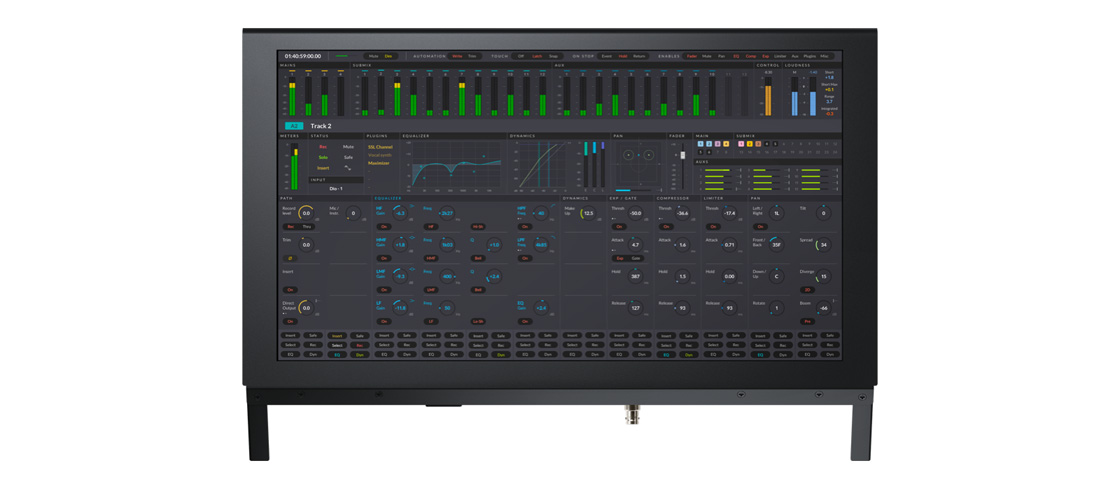

Fairlight Console LCD Monitor
Add to Compare
View Details
Fairlight Console LCD Monitor
Price:
HK$10,650
Description:
Add a high resolution LCD monitor to every bay of your Fairlight console with Fairlight Console LCD Monitor! When installed above channel faders and controls you get instant graphic feedback for that channel, access to additional controls and more. Featuring an ethernet interface to display channel information, there is also an HDMI interface you can connect to your computer to see native plugâin interfaces and an SDI BNC for video program or studio camera previews.
Power_Supply:
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power_Usage:
20W max.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
Ethernet Ethernet supports 10/100/1000 BaseT. HDMI Video Input HDMI Type A. SDI Inputs 1 x 3GâSDI. SDI Rates 1.5G, 3G.
Power_Requirements:
Power Supply Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. Power Usage 20W max.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11 Windows 11 for ARM Rocky Linux 8.6
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Fairlight Console LCD Monitor
Warranty:
1 Year Limited Manufacturerâs Warranty.
Updates_And_Configuration:
1 x USB TypeâC for software configuration and software updates.
Ethernet:
Ethernet supports 10/100/1000Â BaseT.
Software:
Internal software upgrade via updater application.
Settings_Control:
Fairlight Studio and Console setup utility software when connected by USB.
Hdmi_Video_Input:
HDMI Type A.
Sdi_Inputs:
1 x 3GâSDI.
Sdi_Rates:
1.5G, 3G.
Hdmi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424MâB, SMPTE 425 Level A and Level B.
Sdi_Video_Sampling:
4:2:2
Sdi_Color_Precision:
10-bit
Sdi_Color_Space:
YUV
Standards:
HDMI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424MâB, SMPTE 425 Level A and Level B. SDI Video Sampling 4:2:2 SDI Color Precision 10-bit SDI Color Space YUV
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-lcd-monitor-sm.jpg?_v=1604879303
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-lcd-monitor-md.jpg?_v=1604879302
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-lcd-monitor-xl.jpg?_v=1604879301
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-console-lcd-monitor-sm.jpg?_v=1604879303

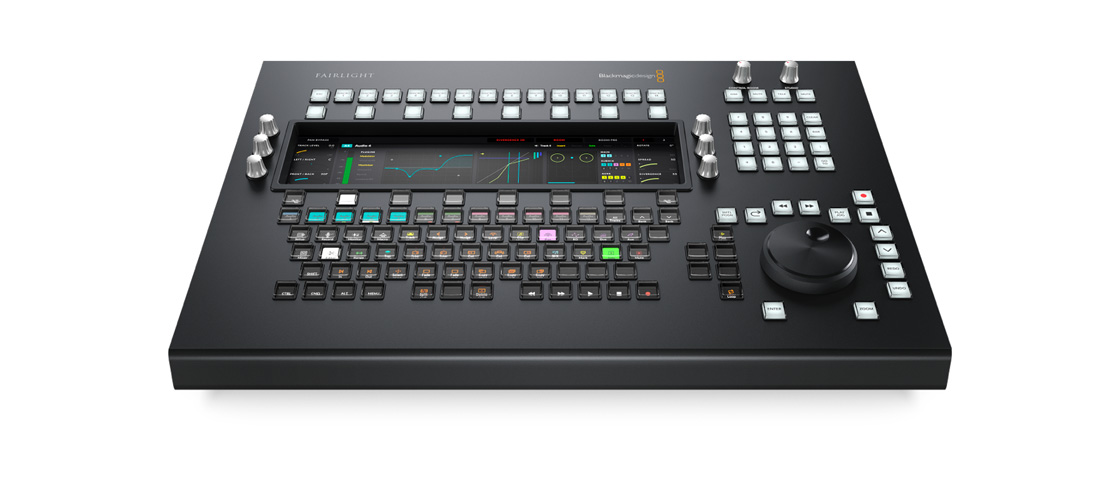

Fairlight Desktop Audio Editor
Add to Compare
View Details
Fairlight Desktop Audio Editor
Price:
HK$36,750
Description:
The stand alone desktop model of Fairlight Audio Desktop Editor provides incredible speed and control for professional sound editors working on tight deadlines! You get quick access controls for high speed precision audio editing that let you work much faster than you could with a traditional mouse. The elegant design features an interactive LCD screen, touch sensitive control knobs, macro buttons, number pad, high quality search dial with electronic clutch and full keyboard with multi function picture keys that change based on your current task! Simply connect Fairlight Audio Desktop Editor by ethernet directly to the DaVinci Resolve computer. The menus and controls are designed with more than 20 years of professional audio engineer guidance and use, so itâs optimized for any project you can throw at it!
Power_Supply:
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power_Usage:
20W max.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
Ethernet Ethernet supports 10/100/1000 BaseT. Updates and Configuration 1 x USB TypeâC for software configuration and software updates.
Power_Requirements:
Power Supply Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. Power Usage 20W max.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11 Windows 11 for ARM Rocky Linux 8.6
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Fairlight Desktop Audio Editor
Warranty:
1 Year Limited Manufacturerâs Warranty.
Updates_And_Configuration:
1 x USB TypeâC for software configuration and software updates.
Ethernet:
Ethernet supports 10/100/1000Â BaseT.
Software:
Internal software upgrade via updater application.
Settings_Control:
Fairlight Studio and Console setup utility software when connected by USB.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-desktop-audio-editor-sm.jpg?_v=1604553913
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-desktop-audio-editor-md.jpg?_v=1604553913
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-desktop-audio-editor-xl.jpg?_v=1604553913
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-desktop-audio-editor-sm.jpg?_v=1604553913

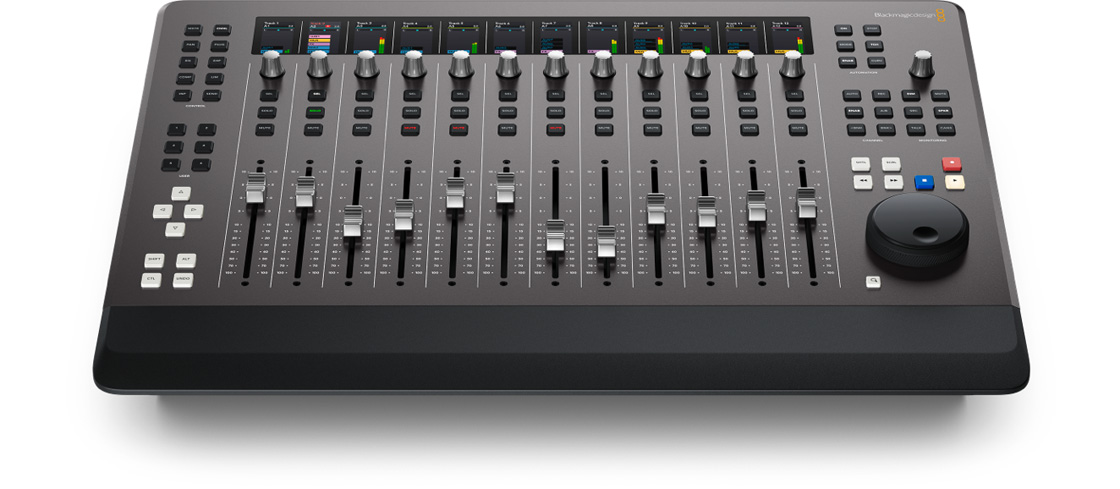

Fairlight Desktop Console
Add to Compare
View Details
Fairlight Desktop Console
Price:
HK$25,050
Description:
Fairlight Desktop Console is an audio mixing control surface that allows you to mix multiple tracks at once! You get a familiar mixer design with 12 motorized faders, touch sensitive encoder knobs and illuminated buttons. The faders are extremely smooth to move and provide the perfect amount of resistance, allowing subtle adjustments. The consoleâs controls can be used for functions including pan, solo, mute, dynamics, EQ, plugâin parameters and more. Each channel strip LCD displays meters, panning, track name and more. An HDMI output gives you instant graphic feedback for all channels, bus and effects from the desktop console.
Computer_Interface:
USB TypeâC.
Power_Supply:
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power_Usage:
20W max.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
Computer Interface USB TypeâC. Ethernet Ethernet supports 10/100/1000 BaseT. HDMI Video Output 1 x HDMI Type A. Updates and Configuration 1 x USB TypeâC for software configuration and software updates.
Power_Requirements:
Power Supply Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. Power Usage 20W max.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 Creators Update Windows 11 Rocky Linux 8.6
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Fairlight Desktop Console 1.5m USBâC Cable.
Warranty:
1 Year Limited Manufacturerâs Warranty.
Updates_And_Configuration:
1 x USB TypeâC for software configuration and software updates.
Ethernet:
Ethernet supports 10/100/1000Â BaseT.
Software:
Internal software upgrade via updater application.
Settings_Control:
Fairlight Studio and Console setup utility software when connected by USB.
Hdmi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Standards:
HDMI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Hdmi_Video_Output:
1 x HDMI Type A.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-desktop-console-sm.jpg?_v=1603852305
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-desktop-console-md.jpg?_v=1603852305
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-desktop-console-xl.jpg?_v=1603852304
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-desktop-console-sm.jpg?_v=1603852305

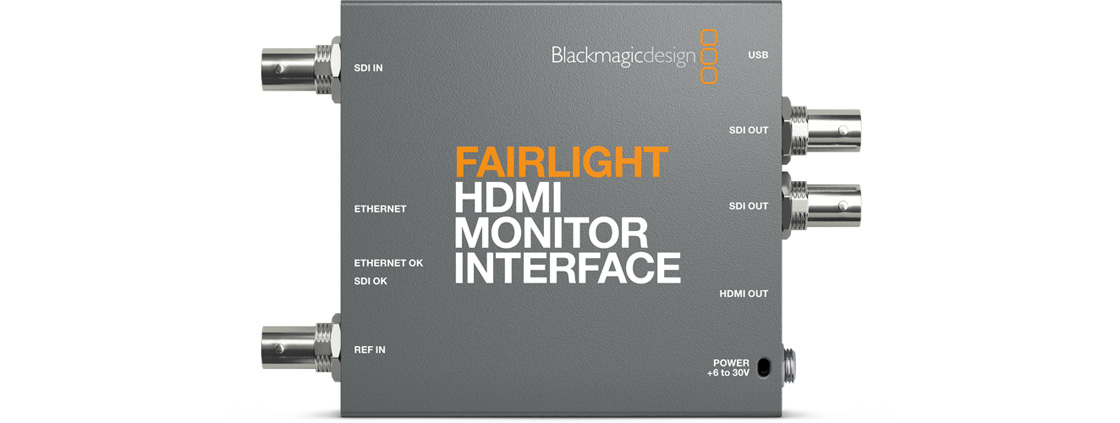

Fairlight HDMI Monitor Interface
Add to Compare
View Details
Fairlight HDMI Monitor Interface
Price:
HK$2,250
Description:
If you are using the Fairlight Console components in your own custom desk with HDMI monitors, you can use Fairlight HDMI Monitor Interface to generate the graphical feedback from Fairlight Console Channel Control! This compact converter can be placed discretely on the back of your HDMI monitor and converts the Fairlight console ethernet data to HDMI. You get instant graphic feedback for the channel control status just as you would with the Fairlight Console LCD Monitor! The interface input can also be switched to SDI so you can see the talent up close for checking lip sync while editing, and an SDI output that mirrors the HDMI output lets you connect the interface to a remote SDI monitor!
Power_Supply:
+12V universal power supply included with international socket adapters for most countries.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturer's Warranty.
Connections:
Ethernet Ethernet supports 10/100/1000 BaseT. HDMI Video Output HDMI Type A out. SDI Inputs 1 x 3GâSDI SDI Video Outputs 2 x 3GâSDI SDI Rates 1.5G, 3G. Updates and Configuration 1 x USB TypeâC for software configuration and software updates.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for most countries. Power Consumption 6W max. Operational Voltage Range 6 - 30V DC.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Fairlight HDMI Monitor Interface 12V universal power supply with international socket adapters for most countries.
Warranty:
1 Year Limited Manufacturer's Warranty.
Updates_And_Configuration:
1 x USB TypeâC for software configuration and software updates.
Ethernet:
Ethernet supports 10/100/1000Â BaseT.
Software:
Internal software upgrade via updater application.
Settings_Control:
Fairlight Studio and Console setup utility software when connected by USB.
Sdi_Inputs:
1 x 3GâSDI
Sdi_Rates:
1.5G, 3G.
Hdmi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Video_Standards:
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424MâB, SMPTE 425 Level A and Level B.
Sdi_Video_Sampling:
4:2:2
Sdi_Color_Precision:
10-bit
Sdi_Color_Space:
YUV
Standards:
HDMI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Video Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424MâB, SMPTE 425 Level A and Level B. SDI Video Sampling 4:2:2 SDI Color Precision 10-bit SDI Color Space YUV
Hdmi_Video_Output:
HDMI Type A out.
Sdi_Video_Outputs:
2 x 3GâSDI
Power_Consumption:
6W max.
Operational_Voltage_Range:
6 - 30VÂ DC.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-hdmi-monitor-interface-sm.jpg?_v=1601684841
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-hdmi-monitor-interface-md.jpg?_v=1601684840
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-hdmi-monitor-interface-xl.jpg?_v=1601684840
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/fairlight-hdmi-monitor-interface-sm.jpg?_v=1601684841
DaVinci Resolve Replay Editor
Add to Compare
View Details
DaVinci Resolve Replay Editor
Price:
HK$4,100
Description:
Editor panel specifically designed for multi-cam editing for news cutting and live sports replay. Includes buttons to make camera selection and editing extremely fast! Connects via Bluetooth or USBâC.
Computer_Interface:
USB TypeâC.
Bluetooth:
Bluetooth 5.1 LE
Power_Supply:
Internal battery with power switch. USB-C port for external power supply and battery charging.
Power_Usage:
6 W max.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Na:
1 Year Limited Manufacturerâs Warranty.
Connections:
Computer Interface USB TypeâC. Bluetooth Bluetooth 5.1 LE
Power_Requirements:
Power Supply Internal battery with power switch. USB-C port for external power supply and battery charging. Power Usage 6 W max.
Operating_Systems:
Mac 14.3 Sonoma or later. Windows 10 Creators Update Windows 11 Windows 11 for ARM Rocky Linux 8.6
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
DaVinci Resolve Replay Editor Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturerâs Warranty.
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-sm.jpg?_v=1721707845
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-md.jpg?_v=1721707844
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-xl.jpg?_v=1721707844
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-sm.jpg?_v=1721707845
DaVinci Resolve Replay Editor
Add to Compare
View Details
DaVinci Resolve Replay Editor
Price:
HK$4,100
Description:
Editor panel specifically designed for multi-cam editing for news cutting and live sports replay. Includes buttons to make camera selection and editing extremely fast! Connects via Bluetooth or USBâC.
Computer_Interface:
USB TypeâC.
Na:
1 Year Limited Manufacturerâs Warranty.
Power_Supply:
Internal battery with power switch. USB-C port for external power supply and battery charging.
Power_Usage:
6 W max.
Operating_Temperature:
0° to 40°C (32° to 104°F)
Storage_Temperature:
-20° to 60°C (-4° to 140°F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Computer Interface USB TypeâC. Bluetooth Bluetooth 5.1 LE
Operating_Systems:
Mac 14.3 Sonoma or later. Windows 10 Creators Update Windows 11 Windows 11 for ARM Rocky Linux 8.6
Power_Requirements:
Power Supply Internal battery with power switch. USB-C port for external power supply and battery charging. Power Usage 6 W max.
Environmental_Specifications:
Operating Temperature 0° to 40°C (32° to 104°F) Storage Temperature -20° to 60°C (-4° to 140°F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
DaVinci Resolve Replay Editor Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturerâs Warranty.
Bluetooth:
Bluetooth 5.1 LE
Src:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-sm.jpg?_v=1721707845
Col_1120w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-md.jpg?_v=1721707844
Col_1324w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-xl.jpg?_v=1721707844
Col_662w:
https://images.blackmagicdesign.com/images/products/davinciresolve/techspecs/hero/davinci-resolve-replay-editor-sm.jpg?_v=1721707845
×
