🧩 Blackmagic Products - Final Version
ENG / 中文
Professional Cameras
DaVinci Resolve and Fusion Software
ATEM Production Switchers
Ultimatte
Disk Recorders
Capture and Playback
Cintel Scanner
Standards Conversion
Broadcast Converters
Monitoring
Cloud and Network Storage
MultiView
Routing and Distribution
Streaming and Encoding
Compare Selected (max 4)
Clear Selection
Broadcast Converters

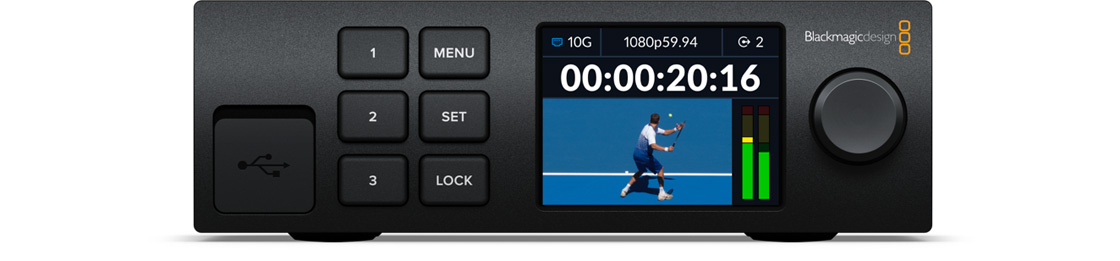

Blackmagic 2110 IP Converter 3x3G
Add to Compare
View Details
Blackmagic 2110 IP Converter 3x3G
Price:
HK$4,900
Description:
The new Blackmagic 2110 IP Converter 3x3G lets you convert 3 separate 3G-SDI devices to 2110 IP video systems. That’s because its 10G Ethernet connection can handle 3 separate video channels at the same time. Plus each channel has independent SDI inputs and SDI outputs, so you could even connect to 6 completely different SDI devices! All 3G-SDI inputs feature loop outputs so you can install the converter in line within existing SDI systems. There’s also a reference output, timed to the 2110 PTP clock! Blackmagic 2110 IP Converter 3x3G includes an elegant front panel with a color LCD for monitoring, menus and diagnostics. You can even route IP inputs from the panel!
Sdi_Inputs:
3.0
Sdi_Loop_Outputs:
3.0
Sdi_Outputs:
3.0
Sdi_Audio_Inputs:
16 channels embedded audio.
Smpte_2110_Input_Output:
10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data.
Col_10g_Ethernet_Port:
1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T.
Reference_Output:
Tri-Sync or Black Burst.
Computer_Interface:
USB-C for updates, configuration and control.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601.
Sdi_Metadata_Support:
RP 188/SMPTE 12M-2 and closed captioning.
Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Color_Precision:
8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
Color_Space:
REC 709
Smpte_211020_Uncompressedvideo:
IGMP v2
Smpte_211021_Trafficshaping:
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_211030_Pcm:
Audio Conformance level: Level C
Smpte_211040_Ancillarydata:
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision_Time_Protocol:
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer-to-peer via mDNS/DNS-SD
Nmos_Is05_Connection_Management:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Built_In_Control_Panel:
6 buttons with spin knob control and 2.2 inch color display for device control and menu settings.
External_Control:
RJ-45 10Gb/s Ethernet and USB-C.
Na:
Windows 10 and 11.
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz.
Power_Inputs:
1 x IEC C14 socket for AC power. 1 x RJ45 Ethernet connector for power from PoE+ power supplies.
Power_Usage:
20 W
Operating_Temperature:
5° to 40 ° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Inputs 3 SDI Loop Outputs 3 SDI Outputs 3 SDI Audio Inputs 16 channels embedded audio. SMPTE 2110 Input / Output 10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data. 10G Ethernet Port 1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T. Reference Output Tri-Sync or Black Burst. Computer Interface USB-C for updates, configuration and control.
Video_Standards:
HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz and 24 bit. Color Precision 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. Color Space REC 709
Ip_Video_Compliance:
SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Control:
Built in Control Panel 6 buttons with spin knob control and 2.2 inch color display for device control and menu settings. External Control RJ-45 10Gb/s Ethernet and USB-C.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. Power Inputs 1 x IEC C14 socket for AC power. 1 x RJ45 Ethernet connector for power from PoE+ power supplies. Power Usage 20 W
Environmental_Specifications:
Operating Temperature 5° to 40 ° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Blackmagic 2110 IP Converter 3x3G Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer's Warranty
Src:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-converter-3x3g-sm.jpg?_v=1680778534
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-converter-3x3g-md.jpg?_v=1680778534
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-converter-3x3g-xl.jpg?_v=1680778533
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-converter-3x3g-sm.jpg?_v=1680778534

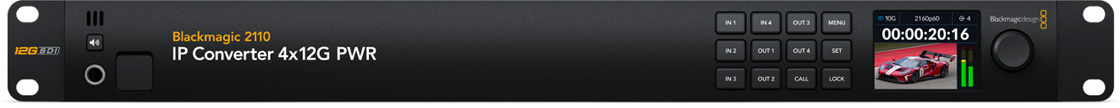

Blackmagic 2110 IP Converter 4x12G PWR
Add to Compare
View Details
Blackmagic 2110 IP Converter 4x12G PWR
Price:
HK$16,350
Description:
Blackmagic 2110 IP Converter 4x12G PWR lets you add SMPTE-2110 IP video to 12G-SDI broadcast equipment. It features 4 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections which can also provide power. Its 1RU design includes a control panel with LCD and supports HD and Ultra HD standards up to 2160p60.
Sdi_Audio_Inputs:
16 Ch embedded audio on SDI input.
Computer_Interface:
1 x USB-C 3.0 for configuration and firmware updates.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.
Smpte_211020_Uncompressedvideo:
IGMP v2
Smpte_211021_Trafficshaping:
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_211030_Pcm:
Audio Conformance level: Level C
Smpte_211040_Ancillarydata:
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision_Time_Protocol:
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer-to-peer via mDNS/DNS-SD
Nmos_Is05_Connection_Management:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Built_In_Control_Panel:
12 button control panel, 2.2 inch color display and spin knob for setup and menu settings.
Na:
Windows 10 and 11.
Power_Supply:
2 x Internal 100 ‑ 240V AC 50/60Hz with IEC C14 mains input.
Power_Usage:
410 W max. (including 4 x 90 W PoE supply to downstream devices)
Operating_Temperature:
5° to 40° C (41° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Total SDI Inputs 5 SDI Video Inputs 4 SDI Main Program Inputs 1 Total SDI Outputs 5 SDI Video Outputs 4 SDI Main Program Outputs 1 Loop Out. SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. SMPTE ST-2110 IP Video Inputs 4 x 10G Ethernet SMPTE ST-2110 IP Video Outputs 4 x 10G Ethernet Analog Audio Outputs 1 x 6.35 mm headphone socket. SDI Audio Inputs 16 Ch embedded audio on SDI input. SDI Audio Outputs 16 Ch embedded audio on SDI loop output. SMPTE ST 2110 IP Audio Inputs 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. SMPTE ST 2110 IP Audio Outputs 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. Multi Rate Support Auto detection of SD, HD, Ultra HD and 4K. Reclocking Yes Ethernet 4 x 10Gb/s RJ‑45 PoE++ connectors supporting 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out. PoE++ is power output only for powering connected PoE devices such as Blackmagic Cameras and Converters. 1 x 1Gb/s RJ‑45 connector supporting 10/100/1000 BASE-T for configuration and firmware updates. Computer Interface 1 x USB-C 3.0 for configuration and firmware updates.
Ip_Video_Compliance:
SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Control:
Built in Control Panel 12 button control panel, 2.2 inch color display and spin knob for setup and menu settings.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 2 x Internal 100 ‑ 240V AC 50/60Hz with IEC C14 mains input. Power Usage 410 W max. (including 4 x 90 W PoE supply to downstream devices)
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Blackmagic 2110 IP Converter 4x12G PWR Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Smpte_St2110_Ip_Video_Inputs:
4 x 10G Ethernet
Smpte_St_2110_Ip_Audio_Inputs:
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Ethernet:
4 x 10Gb/s RJ‑45 PoE++ connectors supporting 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out. PoE++ is power output only for powering connected PoE devices such as Blackmagic Cameras and Converters. 1 x 1Gb/s RJ‑45 connector supporting 10/100/1000 BASE-T for configuration and firmware updates.
Codec:
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Sdi_Video_Inputs:
4.0
Sdi_Video_Outputs:
4
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Analog_Audio_Outputs:
1 x 6.35 mm headphone socket.
Sdi_Audio_Outputs:
16 Ch embedded audio on SDI loop output.
Smpte_St_2110_Ip_Audio_Outputs:
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Multi_Rate_Support:
Auto detection of SD, HD, Ultra HD and 4K.
Reclocking:
Yes
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Sdi_Videorates:
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output.
Sdi_Video_Standards:
HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. SDI Video Rates SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output.
Total_Sdi_Inputs:
5.0
Sdi_Main_Program_Inputs:
1.0
Total_Sdi_Outputs:
5.0
Sdi_Main_Program_Outputs:
1 Loop Out.
Smpte_St2110_Ip_Video_Outputs:
4 x 10G Ethernet
Src:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-converter-4x12g-pwr-sm.jpg?_v=1712617281
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-converter-4x12g-pwr-md.jpg?_v=1712617281
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-converter-4x12g-pwr-xl.jpg?_v=1712617281
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-converter-4x12g-pwr-sm.jpg?_v=1712617281

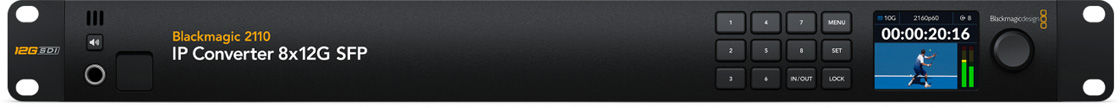

Blackmagic 2110 IP Converter 8x12G SFP
Add to Compare
View Details
Blackmagic 2110 IP Converter 8x12G SFP
Price:
HK$21,300
Description:
Blackmagic 2110 IP Converter 8x12G SFP lets you add SMPTE-2110 IP video to 12G-SDI broadcast equipment. It features 8 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using SFP modules for compatibility with optical fiber Ethernet modules for long distances. Its 1RU design includes and control panel with LCD and support HD and Ultra HD standards up to 2160p60.
Sdi_Audio_Inputs:
16 Ch embedded audio on SDI input.
Computer_Interface:
1 x USB-C 3.0 for configuration and firmware updates.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.
Smpte_211020_Uncompressedvideo:
IGMP v2
Smpte_211021_Trafficshaping:
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_211030_Pcm:
Audio Conformance level: Level C
Smpte_211040_Ancillarydata:
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision_Time_Protocol:
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer-to-peer via mDNS/DNS‑SD
Nmos_Is05_Connection_Management:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Built_In_Control_Panel:
12 button control panel, 2.2 inch color display and spin knob for setup and menu settings.
Na:
Windows 10 and 11.
Power_Supply:
2 x Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power_Usage:
70 W max.
Operating_Temperature:
5° to 40° C (41° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Total SDI Inputs 9 SDI Video Inputs 8 SDI Main Program Inputs 1 Total SDI Outputs 9 SDI Video Outputs 8 SDI Main Program Outputs 1 Loop Out. SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. SMPTE ST-2110 IP Video Inputs/Outputs 8 x 10G Ethernet Analog Audio Outputs 1 x 6.35 mm headphone socket. SDI Audio Inputs 16 Ch embedded audio on SDI input. SDI Audio Outputs 16 Ch embedded audio on SDI loop output. SMPTE ST 2110 IP Audio Inputs 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. SMPTE ST 2110 IP Audio Outputs 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. Analog Audio Outputs 1 x 6.35 mm headphone socket. Multi Rate Support Auto detection of SD, HD, Ultra HD and 4K. Reclocking Yes Ethernet 8 x 10Gb/s SFP sockets supporting up to 10G BASE-T for SMPTE 2110 IP video in and out. 1 x 1Gb/s RJ‑45 connector supporting 10/100/1000 BASE-T for configuration and firmware updates. Computer Interface 1 x USB-C 3.0 for configuration and firmware updates.
Ip_Video_Compliance:
SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS‑SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Control:
Built in Control Panel 12 button control panel, 2.2 inch color display and spin knob for setup and menu settings.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 2 x Internal 100 - 240V AC 50/60Hz with IEC C14 mains input. Power Usage 70 W max.
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Blackmagic 2110 IP Converter 8x12G SFP
Warranty:
1 Year Limited Manufacturer’s Warranty.
Smpte_St_2110_Ip_Audio_Inputs:
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Ethernet:
8 x 10Gb/s SFP sockets supporting up to 10G BASE-T for SMPTE 2110 IP video in and out. 1 x 1Gb/s RJ‑45 connector supporting 10/100/1000 BASE-T for configuration and firmware updates.
Codec:
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Sdi_Video_Inputs:
8.0
Sdi_Video_Outputs:
8
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Smpte_St2110_Ip_Video_Inputsoutputs:
8 x 10G Ethernet
Analog_Audio_Outputs:
1 x 6.35 mm headphone socket.
Sdi_Audio_Outputs:
16 Ch embedded audio on SDI loop output.
Smpte_St_2110_Ip_Audio_Outputs:
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Multi_Rate_Support:
Auto detection of SD, HD, Ultra HD and 4K.
Reclocking:
Yes
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Sdi_Videorates:
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G‑SDI output.
Sdi_Video_Standards:
HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. SDI Video Rates SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G‑SDI output.
Total_Sdi_Inputs:
9.0
Sdi_Main_Program_Inputs:
1.0
Total_Sdi_Outputs:
9.0
Sdi_Main_Program_Outputs:
1 Loop Out.
Src:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-converter-8x12g-sfp-sm.jpg?_v=1712617283
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-converter-8x12g-sfp-md.jpg?_v=1712617282
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-converter-8x12g-sfp-xl.jpg?_v=1712617282
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-converter-8x12g-sfp-sm.jpg?_v=1712617283

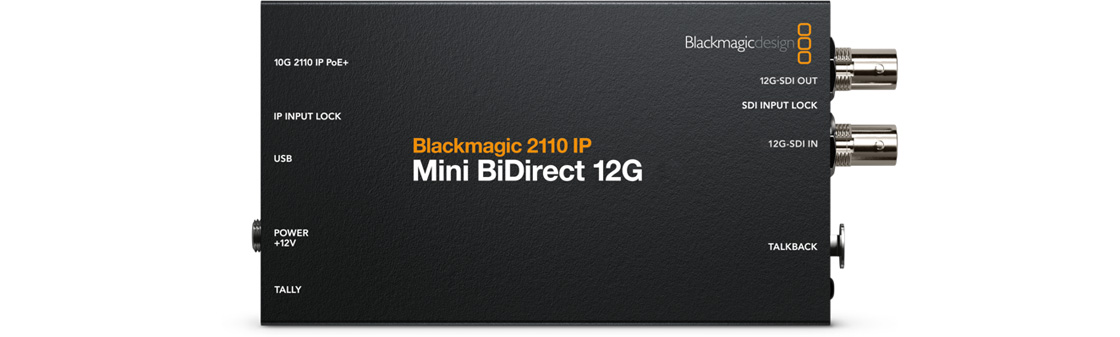

Blackmagic 2110 IP Mini BiDirect 12G
Add to Compare
View Details
Blackmagic 2110 IP Mini BiDirect 12G
Price:
HK$3,000
Description:
Blackmagic 2110 IP Mini BiDirect 12G lets you convert broadcast cameras with SDI connections to SMPTE-2110 IP video systems. Its 12G-SDI connection supports SD, HD and Ultra HD standards up to 2160p60 and even handles the SDI program return. Blackmagic 2110 IP Mini BiDirect 12G also has a 5 pin XLR talkback headset connection with talkback volume control and a press to talk button. It connects and powers from 10G Ethernet or the included DC power supply.
Sdi_Audio_Inputs:
16 Ch embedded audio on SDI input.
Computer_Interface:
1 x USB‑C for configuration and firmware updates.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.
Smpte_211020_Uncompressedvideo:
IGMP v2
Smpte_211021_Trafficshaping:
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_211030_Pcm:
Audio Conformance level: Level C
Smpte_211040_Ancillarydata:
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision_Time_Protocol:
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer-to-peer via mDNS/DNS‑SD
Nmos_Is05_Connection_Management:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Na:
Windows 10 and 11.
Power_Supply:
1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries. 1 x RJ45 Ethernet connector for power from PoE++ power supplies.
Power_Usage:
18W
Operating_Temperature:
5° to 40° C (41° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 SDI Video Outputs 1 SDI Rates 1.5G, 3G, 6G, 12G. SMPTE ST-2110 IP Video Inputs/Outputs 1 x 10G Ethernet Analog Audio Inputs 1 x 5 pin XLR Talkback. Analog Audio Outputs 1 x 5 pin XLR Talkback. SDI Audio Inputs 16 Ch embedded audio on SDI input. SDI Audio Outputs 16 Ch embedded audio on SDI output. SMPTE ST 2110 IP Audio Inputs 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. SMPTE ST 2110 IP Audio Outputs 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. Multi Rate Support Auto detection of HD, Ultra HD and 4K. Reclocking Yes Ethernet 1 x 10Gb/s RJ‑45 connector for SMPTE‑2110 IP video in and out. Computer Interface 1 x USB‑C for configuration and firmware updates.
Ip_Video_Compliance:
SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS‑SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries. 1 x RJ45 Ethernet connector for power from PoE++ power supplies. Operational Voltage Range 12 - 16 V Power Usage 18W
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Blackmagic 2110 IP Mini BiDirect 12G Plug Pack Power Supply with universal adaptor plugs
Warranty:
1 Year Limited Manufacturer’s Warranty.
Smpte_St_2110_Ip_Audio_Inputs:
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Ethernet:
1 x 10Gb/s RJ‑45 connector for SMPTE‑2110 IP video in and out.
Codec:
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Operational_Voltage_Range:
12 - 16 V
Sdi_Video_Inputs:
1.0
Sdi_Video_Outputs:
1
Smpte_St2110_Ip_Video_Inputsoutputs:
1 x 10G Ethernet
Analog_Audio_Inputs:
1 x 5 pin XLR Talkback.
Analog_Audio_Outputs:
1 x 5 pin XLR Talkback.
Sdi_Audio_Outputs:
16 Ch embedded audio on SDI output.
Smpte_St_2110_Ip_Audio_Outputs:
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Multi_Rate_Support:
Auto detection of HD, Ultra HD and 4K.
Reclocking:
Yes
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Sdi_Videorates:
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
SDI video connections are switchable between 720p, 1080i, 1080p, Ultra HD and 4K DCI.
Talkback:
5‑pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video.
Live_Tallyindicator:
Tally LED indicator light
Sdi_Video_Standards:
HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. SDI Video Rates SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching SDI video connections are switchable between 720p, 1080i, 1080p, Ultra HD and 4K DCI.
Talkback_And_Tally:
Talkback 5‑pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video. Live Tally Indicator Tally LED indicator light
Src:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-bidirect-12g-sm.jpg?_v=1712894540
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-bidirect-12g-md.jpg?_v=1712894540
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-bidirect-12g-xl.jpg?_v=1712894539
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-bidirect-12g-sm.jpg?_v=1712894540

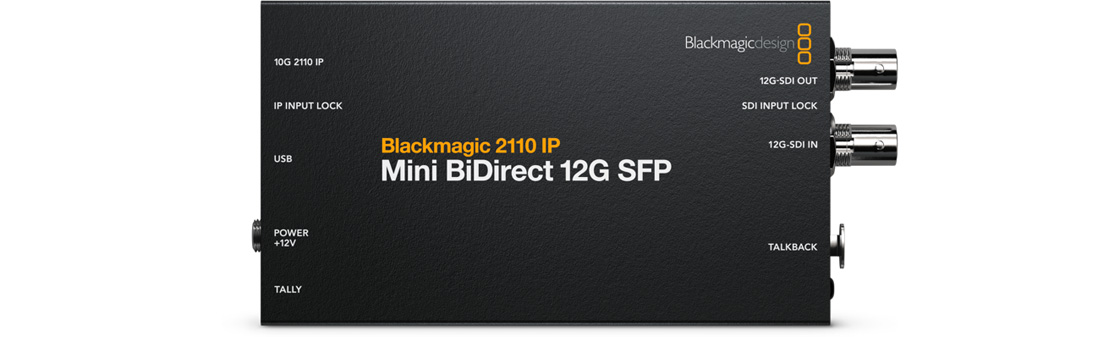

Blackmagic 2110 IP Mini BiDirect 12G SFP
Add to Compare
View Details
Blackmagic 2110 IP Mini BiDirect 12G SFP
Price:
HK$3,000
Description:
Blackmagic 2110 IP Mini BiDirect 12G SFP lets you convert broadcast cameras with SDI connections to SMPTE-2110 IP video systems over long distances using optical fiber. Its 12G-SDI connection supports SD, HD and Ultra HD standards up to 2160p60 and even handles the SDI program return. Blackmagic 2110 IP Mini BiDirect 12G SFP also has a 5 pin XLR talkback headset connection with talkback volume control and a press to talk button. The SFP socket will accept 10G Ethernet, 3G-SDI, 6G-SDI or 12G-SDI optical modules. It also includes a 12 DC power supply.
Sdi_Audio_Inputs:
16 Ch embedded audio on SDI input.
Computer_Interface:
1 x USB-C 3.0 for configuration and firmware updates.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30
Sdi_Compliance:
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.
Smpte_211020_Uncompressedvideo:
IGMP v2
Smpte_211021_Trafficshaping:
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_211030_Pcm:
Audio Conformance level: Level C
Smpte_211040_Ancillarydata:
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision_Time_Protocol:
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer-to-peer via mDNS/DNS-SD
Nmos_Is05_Connection_Management:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Na:
Windows 10 and 11.
Power_Supply:
1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries.
Power_Usage:
18W
Operating_Temperature:
5° to 40° C (41° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 SDI Video Outputs 1 SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. SMPTE ST-2110 IP Video Inputs/Outputs 1 x 10G Ethernet Analog Audio Inputs 1 x 5 pin XLR Talkback. Analog Audio Outputs 1 x 5 pin XLR Talkback. SDI Audio Inputs 16 Ch embedded audio on SDI input. SDI Audio Outputs 16 Ch embedded audio on SDI loop output. SMPTE ST 2110 IP Audio Inputs 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. SMPTE ST 2110 IP Audio Outputs 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. Multi Rate Support Auto detection of SD, HD, 2K, Ultra HD and 4K. Reclocking Yes Ethernet 1 x 10Gb/s SFP optical fibre sockets supporting up to 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates. Computer Interface 1 x USB-C 3.0 for configuration and firmware updates.
Ip_Video_Compliance:
SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries. Operational Voltage Range 12 - 16 V Power Usage 18W
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Blackmagic 2110 IP Mini BiDirect 12G SFP Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Smpte_St_2110_Ip_Audio_Inputs:
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Ethernet:
1 x 10Gb/s SFP optical fibre sockets supporting up to 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates.
Codec:
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Operational_Voltage_Range:
12 - 16 V
Sdi_Video_Inputs:
1.0
Sdi_Video_Outputs:
1
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Smpte_St2110_Ip_Video_Inputsoutputs:
1 x 10G Ethernet
Analog_Audio_Inputs:
1 x 5 pin XLR Talkback.
Analog_Audio_Outputs:
1 x 5 pin XLR Talkback.
Sdi_Audio_Outputs:
16 Ch embedded audio on SDI loop output.
Smpte_St_2110_Ip_Audio_Outputs:
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Multi_Rate_Support:
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Reclocking:
Yes
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Sdi_Videorates:
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G‑SDI input and user selectable on 3G‑SDI output.
Talkback:
5‑pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video.
Live_Tallyindicator:
Tally LED indicator light
Sdi_Video_Standards:
HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. SDI Compliance SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. SDI Video Rates SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G‑SDI input and user selectable on 3G‑SDI output.
Talkback_And_Tally:
Talkback 5‑pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video. Live Tally Indicator Tally LED indicator light
Src:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-bidirect-12g-sfp-sm.jpg?_v=1712617285
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-bidirect-12g-sfp-md.jpg?_v=1712617285
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-bidirect-12g-sfp-xl.jpg?_v=1712617284
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-bidirect-12g-sfp-sm.jpg?_v=1712617285

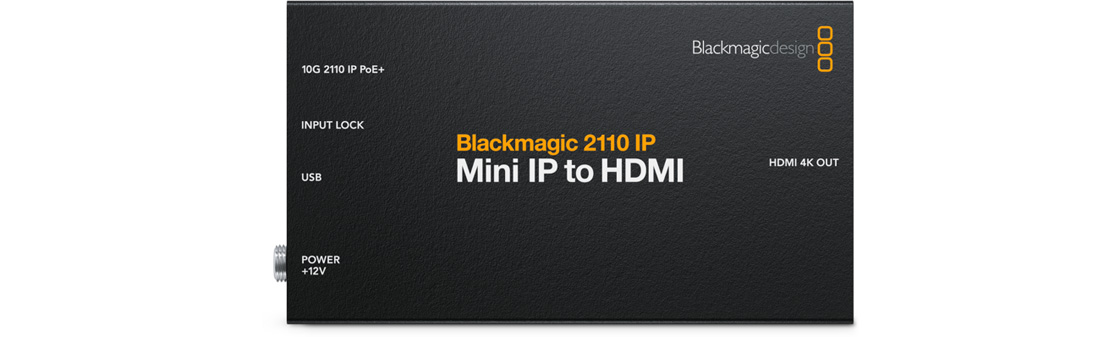

Blackmagic 2110 IP Mini IP to HDMI
Add to Compare
View Details
Blackmagic 2110 IP Mini IP to HDMI
Price:
HK$2,450
Description:
Blackmagic 2110 IP Mini IP to HDMI lets you monitor 2110 IP video and audio on any HDMI monitor or TV. Its compact design means it can be placed behind displays, while it connects and powers from 10G Ethernet and supports HD and Ultra HD standards to 2160p60. Also includes DC power supply.
Computer_Interface:
1 x USB-C 3.0 for configuration and firmware updates.
Smpte_211020_Uncompressedvideo:
IGMP v2
Smpte_211021_Trafficshaping:
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_211030_Pcm:
Audio Conformance level: Level C
Smpte_211040_Ancillarydata:
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision_Time_Protocol:
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer-to-peer via mDNS/DNS‑SD
Nmos_Is05_Connection_Management:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Na:
Windows 10 and 11.
Power_Supply:
1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries. 1 x RJ45 Ethernet connector for power from PoE++ power supplies.
Power_Usage:
18W
Operating_Temperature:
5° to 40° C (41° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
HDMI Video Outputs 1 HDMI Audio Outputs 1 SMPTE ST-2110 IP Video Inputs 1 x 10G Ethernet SMPTE ST 2110 IP Audio Inputs 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. Ethernet 1 x 10Gb/s RJ‑45 PoE++ connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates. Computer Interface 1 x USB-C 3.0 for configuration and firmware updates.
Video_Standards:
HDMI HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 HDMI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 HDMI 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. SMPTE Compliance SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. HDMI Color Precision 4:2:2 HDMI Color Space YUV
Ip_Video_Compliance:
SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS‑SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries. 1 x RJ45 Ethernet connector for power from PoE++ power supplies. Operational Voltage Range 12 - 16 V Power Usage 18W
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Blackmagic 2110 IP Mini IP to HDMI Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Hdmi_Video_Outputs:
1.0
Hdmi_Audio_Outputs:
1
Smpte_St2110_Ip_Video_Inputs:
1 x 10G Ethernet
Smpte_St_2110_Ip_Audio_Inputs:
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Ethernet:
1 x 10Gb/s RJ‑45 PoE++ connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
Hdmi_Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Hdmi_Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Hdmi_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Smpte_Compliance:
SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.
Hdmi_Color_Precision:
4:2:2
Hdmi_Color_Space:
YUV
Codec:
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Operational_Voltage_Range:
12 - 16 V
Displays:
1 x IP Input Lock LED indicator light
Src:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-ip-to-hdmi-sm.jpg?_v=1712617287
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-ip-to-hdmi-md.jpg?_v=1712617287
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-ip-to-hdmi-xl.jpg?_v=1712617286
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-ip-to-hdmi-sm.jpg?_v=1712617287

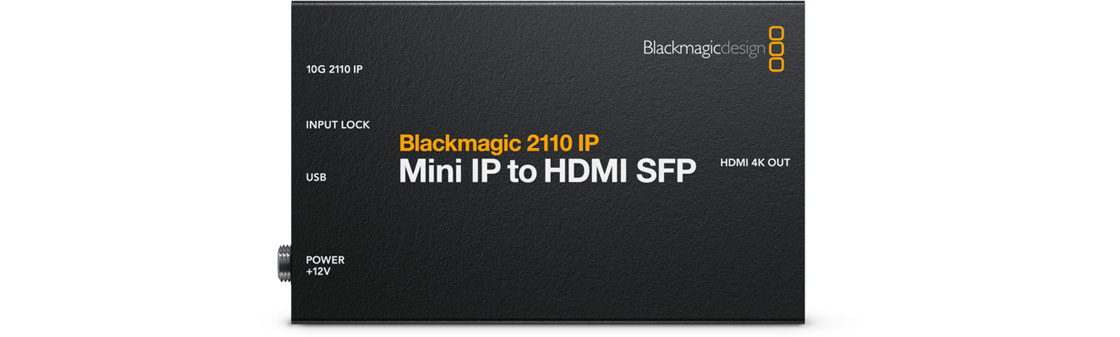

Blackmagic 2110 IP Mini IP to HDMI SFP
Add to Compare
View Details
Blackmagic 2110 IP Mini IP to HDMI SFP
Price:
HK$2,450
Description:
Blackmagic 2110 IP Mini IP to HDMI SFP lets you monitor 2110 IP video and audio on any HDMI monitor or TV over long distances. Its compact design means it can be placed behind displays, while it connects to a standard SFP socket that supports a 10G optical fiber Ethernet module, so you connect it over long distances. Blackmagic 2110 UP Mini IP to HDMI SFP also supports 3G, 6G and 12G optical fiber SDI modules for regular SDI video compatibility. Powers from the included 12V DC power supply.
Computer_Interface:
1 x USB-C 3.0 for configuration and firmware updates.
Smpte_211020_Uncompressedvideo:
IGMP v2
Smpte_211021_Trafficshaping:
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_211030_Pcm:
Audio Conformance level: Level C
Smpte_211040_Ancillarydata:
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision_Time_Protocol:
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer-to-peer via mDNS/DNS‑SD
Nmos_Is05_Connection_Management:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Na:
Windows 10 and 11.
Power_Supply:
1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries.
Power_Usage:
TBA
Operating_Temperature:
5° to 40° C (41° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
HDMI Video Outputs 1 HDMI Audio Outputs 8 Ch embedded audio on SDI loop output. SMPTE ST-2110 IP Video Inputs 1 x 10G Ethernet SMPTE ST 2110 IP Audio Inputs 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. Ethernet 1 x 10Gb/s SFP optical fibre sockets supporting up to 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates. Computer Interface 1 x USB-C 3.0 for configuration and firmware updates.
Video_Standards:
HDMI HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 HDMI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 HDMI 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. SMPTE Compliance SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. HDMI Color Precision 4:2:2 HDMI Color Space YUV
Ip_Video_Compliance:
SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS‑SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries. Operational Voltage Range 12 - 16 V Power Usage TBA
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Blackmagic 2110 IP Mini IP to HDMI SFP Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Hdmi_Video_Outputs:
1.0
Hdmi_Audio_Outputs:
8 Ch embedded audio on SDI loop output.
Smpte_St2110_Ip_Video_Inputs:
1 x 10G Ethernet
Smpte_St_2110_Ip_Audio_Inputs:
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Ethernet:
1 x 10Gb/s SFP optical fibre sockets supporting up to 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
Hdmi_Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Hdmi_Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Hdmi_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Smpte_Compliance:
SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.
Hdmi_Color_Precision:
4:2:2
Hdmi_Color_Space:
YUV
Codec:
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Operational_Voltage_Range:
12 - 16 V
Displays:
1 x IP Input Lock LED indicator light
Src:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-ip-to-hdmi-sfp-sm.jpg?_v=1712617289
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-ip-to-hdmi-sfp-md.jpg?_v=1712617289
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-ip-to-hdmi-sfp-xl.jpg?_v=1712617288
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-mini-ip-to-hdmi-sfp-sm.jpg?_v=1712617289

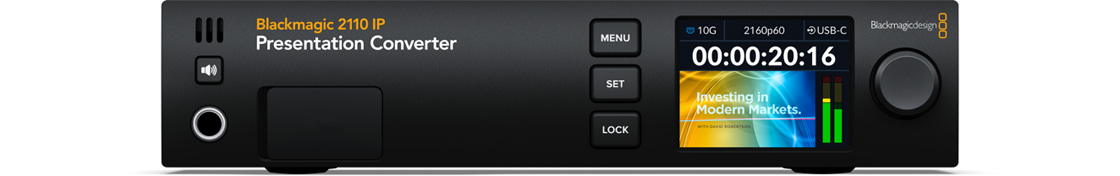

Blackmagic 2110 IP Presentation Converter
Add to Compare
View Details
Blackmagic 2110 IP Presentation Converter
Price:
HK$6,950
Description:
Blackmagic 2110 IP Presentation Converter is designed for speaker podiums with connections for laptops, projectors and microphones all in the one converter. Computers can connect via USB-C for both video and power and there is an HDMI output for projectors that can be switched to the video input or the 2110 IP return feed. For audio, there are XLR microphone inputs and an XLR audio out for PA speakers. The RJ-45 10G Ethernet video connection can power the whole converter, even when charging a USB computer!
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Sdi_Compliance:
SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑10, SMPTE ST2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.
Sdi_Metadata_Support:
RP 188/SMPTE 12M-2 and closed captioning.
Smpte_211020_Uncompressedvideo:
IGMP v2
Smpte_211021_Trafficshaping:
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_211030_Pcm:
Audio Conformance level: Level C
Smpte_211040_Ancillarydata:
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision_Time_Protocol:
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer-to-peer via mDNS/DNS-SD
Nmos_Is05_Connection_Management:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Built_In_Control_Panel:
3 buttons, spin knob and 2.2 inch color display for menu and settings. Front speaker on/off button.
Na:
Windows 10 and 11.
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz with IEC C14 socket.
Power_Usage:
TBA
Operating_Temperature:
5° to 40° C (41° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
PC Video Inputs 1 x front USB‑C plus 1 x rear USB‑C with 45W host charging capability. HDMI 2.0 Video Inputs 1 HDMI 2.0 Video Outputs 1 SDI Video Outputs 1 Automatically standards converted to destination SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. SMPTE ST-2110 IP Video Inputs 1 x 10G Ethernet SMPTE ST-2110 IP Video Outputs 1 x 10G Ethernet Analog Audio Inputs 2 x Combination 3-pin XLR / TRS 1/4 inch Jack connectors, switchable between +24dB line and mic level with support for +48V phantom power. Analog Audio Outputs 2 channels of professional balanced analog audio with 3-pin XLR connectors. 1 x 6.35 mm headphone jack. SDI Audio Outputs 16 Channels embedded in SD/HD/2K/UHD/4K. HDMI Audio Inputs 8 Channels embedded in SD/HD/UHD/4K. HDMI Audio Outputs 8 Channels embedded in SD/HD/UHD/4K. USB 2 x USB‑C 3.1 Gen 1 (up to 5 Gb/s). Ethernet 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates.
Ip_Video_Compliance:
SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Control:
Built in Control Panel 3 buttons, spin knob and 2.2 inch color display for menu and settings. Front speaker on/off button.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz with IEC C14 socket. Power Usage TBA
Environmental_Specifications:
Operating Temperature 5° to 40° C (41° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Blackmagic 2110 IP Presentation Converter Blackmagic 2110 IP Presentation Converter Mounting Plate Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Hdmi_Audio_Outputs:
8 Channels embedded in SD/HD/UHD/4K.
Smpte_St2110_Ip_Video_Inputs:
1 x 10G Ethernet
Ethernet:
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates.
Hdmi_Color_Precision:
8, 10 and 12-bit
Hdmi_Color_Space:
REC 709 and REC 2020
Codec:
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Sdi_Video_Outputs:
1 Automatically standards converted to destination
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Analog_Audio_Inputs:
2 x Combination 3-pin XLR / TRS 1/4 inch Jack connectors, switchable between +24dB line and mic level with support for +48V phantom power.
Analog_Audio_Outputs:
2 channels of professional balanced analog audio with 3-pin XLR connectors. 1 x 6.35 mm headphone jack.
Sdi_Audio_Outputs:
16 Channels embedded in SD/HD/2K/UHD/4K.
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Sdi_Color_Precision:
8, 10, 12-bit RGB 4:4:4 in 2D modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all 2D modes. 8, 10, 12-bit RGB 4:4:4 in 3D modes up to 2Kp60 DCI and 8, 10-bit YUV 4:2:2 in all 3D modes.
Sdi_Color_Space:
REC 709 and REC 2020
Sdi_Video_Standards:
HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SDI Compliance SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑10, SMPTE ST2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Multiple Rate Support SDI video connections are switchable between HD/2K/UHD and 4K. SDI Audio Sampling Television standard sample rate of 48 kHz and 24‑bit. SDI Video Sampling 4:2:2, 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in 2D modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all 2D modes. 8, 10, 12-bit RGB 4:4:4 in 3D modes up to 2Kp60 DCI and 8, 10-bit YUV 4:2:2 in all 3D modes. SDI Color Space REC 709 and REC 2020 HDR Support HDR static metadata packing, HLG and PQ transfer characteristics.
Smpte_St2110_Ip_Video_Outputs:
1 x 10G Ethernet
Pc_Video_Inputs:
1 x front USB‑C plus 1 x rear USB‑C with 45W host charging capability.
Hdmi_20_Video_Inputs:
1.0
Hdmi_20_Video_Outputs:
1.0
Hdmi_Audio_Inputs:
8 Channels embedded in SD/HD/UHD/4K.
Usb:
2 x USB‑C 3.1 Gen 1 (up to 5 Gb/s).
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Multiple_Rate_Support:
HDMI video connections are switchable between HD/UHD and 4K.
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24‑bit.
Sdi_Video_Sampling:
4:2:2, 4:4:4
Hdr_Support:
HDR static metadata packing, HLG and PQ transfer characteristics.
Hdmi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24-bit.
Hdmi_Video_Sampling:
4:4:4, 4:2:2 and 4:2:0
Hdr_Configuration:
HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Hdmi_Video_Standards:
HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI HDMI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. HDMI Video Sampling 4:4:4, 4:2:2 and 4:2:0 HDMI Color Precision 8, 10 and 12-bit HDMI Color Space REC 709 and REC 2020 HDR Support HDR static metadata packing, HLG and PQ transfer characteristics. HDR Configuration HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display. Multiple Rate Support HDMI video connections are switchable between HD/UHD and 4K. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Src:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-presentation-converter-sm.jpg?_v=1728431937
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-presentation-converter-md.jpg?_v=1728431937
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-presentation-converter-xl.jpg?_v=1728431936
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-presentation-converter-sm.jpg?_v=1728431937

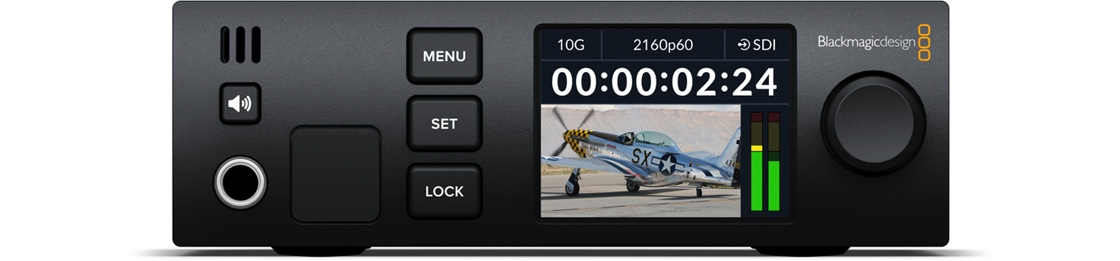

Blackmagic 2110 IP SDI to HDMI 12G
Add to Compare
View Details
Blackmagic 2110 IP SDI to HDMI 12G
Price:
HK$4,100
Description:
Blackmagic 2110 IP SDI to HDMI 12G converts 12G-SDI or SMPTE-2110 video to HDMI in a rack mount design. You get the highest quality conversion between all SD, HD and Ultra HD video standards with 3D LUTs for accurate calibration of HDMI displays. Includes front panel LCD with video, meters and menus, 2 channel XLR monitoring outputs with variable gain and delay, speaker and headphone connector.
Sdi_Inputs:
1.0
Sdi_Loop_Outputs:
1.0
Sdi_Audio_Inputs:
16 channels embedded audio.
Smpte_2110_Input_Output:
1 x 10G Ethernet
Computer_Interface:
USB‑C for webcam out, updates and configuration
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Sdi_Metadata_Support:
RP 188/SMPTE 12M‑2 and closed captioning.
Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Color_Precision:
8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10‑bit YUV 4:2:2 in all modes.
Color_Space:
Rec. 601, Rec. 709, Rec. 2020
Smpte_211020_Uncompressedvideo:
IGMP v2
Smpte_211021_Trafficshaping:
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_211030_Pcm:
Audio Conformance level: Level C
Smpte_211040_Ancillarydata:
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M‑2, closed captioning and HDR static metadata.
Precision_Time_Protocol:
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer-to-peer via mDNS/DNS‑SD
Nmos_Is05_Connection_Management:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Built_In_Control_Panel:
Built in control panel including 4 buttons, spin knob control and 2.2 inch color display.
External_Control:
RJ-45 10Gb/s Ethernet and USB‑C. REST API over Ethernet for external control via HTTP when used with REST client applications.
Na:
Windows 10 and 11.
Power_Supply:
1 x IEC C14 socket for AC power. 1 x Locking 5.5mm barrel +12V DC input for external power supply or battery use.
Power_Usage:
TBC
Operating_Temperature:
0° C to 40° C (32° - 104°F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Inputs 1 SDI Loop Outputs 1 SDI Rates SD, 1.5G, 3G, 6G and 12G HDMI 2.0 Video Outputs 1 SMPTE 2110 Input / Output 1 x 10G Ethernet SMPTE ST 2110 IP Audio Inputs / Outputs 16 channels embedded input and output audio on ST‑2110 IP video via 10G Ethernet. SDI Audio Inputs 16 channels embedded audio. SDI Audio Outputs 16 channels embedded audio. HDMI Audio Inputs 8 channels embedded audio. HDMI Audio Outputs 8 channels embedded audio. Analog Audio Outputs 2 channels of professional balanced analog audio with 3‑pin XLR connectors. 1 x 6.35 mm headphone jack. Webcam Outputs 1 x USB‑C up to 1080p60 Ethernet Ethernet supports 10/100/1000/10G BASE‑T for SMPTE 2110 IP video in and out, configuration and software updates. Computer Interface USB‑C for webcam out, updates and configuration
Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SMPTE Compliance SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1 SDI Metadata Support RP 188/SMPTE 12M‑2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz and 24 bit. Color Precision 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10‑bit YUV 4:2:2 in all modes. Color Space Rec. 601, Rec. 709, Rec. 2020 HDMI HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 HDMI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 HDMI 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI HDMI Color Precision 4:2:2 HDMI Color Space YUV
Ip_Video_Compliance:
SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M‑2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec used when converting 2160p59.94 and 2160p60 to 10G 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS‑SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Control:
Built in Control Panel Built in control panel including 4 buttons, spin knob control and 2.2 inch color display. External Control RJ-45 10Gb/s Ethernet and USB‑C. REST API over Ethernet for external control via HTTP when used with REST client applications.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. Power Supply 1 x IEC C14 socket for AC power. 1 x Locking 5.5mm barrel +12V DC input for external power supply or battery use. Power Usage TBC
Environmental_Specifications:
Operating Temperature 0° C to 40° C (32° - 104°F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Blackmagic 2110 IP SDI to HDMI 12G Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Hdmi_Audio_Outputs:
8 channels embedded audio.
Ethernet:
Ethernet supports 10/100/1000/10G BASE‑T for SMPTE 2110 IP video in and out, configuration and software updates.
Hdmi_Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Hdmi_Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Hdmi_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
Smpte_Compliance:
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1
Hdmi_Color_Precision:
4:2:2
Hdmi_Color_Space:
YUV
Codec:
Blackmagic IP10 codec used when converting 2160p59.94 and 2160p60 to 10G 2110 IP video.
Displays:
Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings.
Sdi_Rates:
SD, 1.5G, 3G, 6G and 12G
Analog_Audio_Outputs:
2 channels of professional balanced analog audio with 3‑pin XLR connectors. 1 x 6.35 mm headphone jack.
Sdi_Audio_Outputs:
16 channels embedded audio.
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Hdmi_20_Video_Outputs:
1.0
Hdmi_Audio_Inputs:
8 channels embedded audio.
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Smpte_St_2110_Ip_Audio_Inputs_Outputs:
16 channels embedded input and output audio on ST‑2110 IP video via 10G Ethernet.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Local_Audio_Monitoring:
Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.
Audio:
Local Audio Monitoring Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.
Webcam_Outputs:
1 x USB‑C up to 1080p60
Src:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-sdi-to-hdmi-12g-sm.jpg?_v=1747356671
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-sdi-to-hdmi-12g-md.jpg?_v=1747356671
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-sdi-to-hdmi-12g-xl.jpg?_v=1747356671
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-sdi-to-hdmi-12g-sm.jpg?_v=1747356671

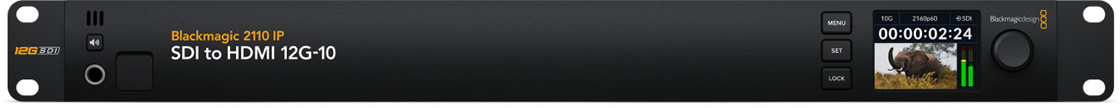

Blackmagic 2110 IP SDI to HDMI 12G-10
Add to Compare
View Details
Blackmagic 2110 IP SDI to HDMI 12G-10
Price:
HK$6,550
Description:
Blackmagic 2110 IP SDI to HDMI 12G-10 converts 12G‑SDI or SMPTE-2110 video to HDMI in a rack mount design. You get the highest quality conversion between all SD, HD and Ultra HD video standards with 3D LUTs for accurate calibration of HDMI displays. Blackmagic 2110 IP SDI to HDMI 12G-10 has 10 independent XLR audio outputs with remote level control and customizable delay for sync with TVs and projectors. Includes front panel LCD with video, meters and menus, speaker and headphone connector.
Sdi_Inputs:
1.0
Sdi_Loop_Outputs:
1.0
Sdi_Audio_Inputs:
16 channels embedded audio.
Smpte_2110_Input_Output:
1 x 10G Ethernet
Computer_Interface:
USB‑C for webcam out, updates and configuration
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Sdi_Metadata_Support:
RP 188/SMPTE 12M‑2 and closed captioning.
Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Color_Precision:
8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10‑bit YUV 4:2:2 in all modes.
Color_Space:
Rec. 601, Rec. 709, Rec. 2020
Smpte_211020_Uncompressedvideo:
IGMP v2
Smpte_211021_Trafficshaping:
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_211030_Pcm:
Audio Conformance level: Level C
Smpte_211040_Ancillarydata:
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M‑2, closed captioning and HDR static metadata.
Precision_Time_Protocol:
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer-to-peer via mDNS/DNS‑SD
Nmos_Is05_Connection_Management:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Built_In_Control_Panel:
Built in control panel including 4 buttons, spin knob control and 2.2 inch color display.
External_Control:
RJ-45 10Gb/s Ethernet and USB‑C. REST API over Ethernet for external control via HTTP when used with REST client applications.
Na:
Windows 10 and 11.
Power_Supply:
1 x IEC C14 socket for AC power. 1 x 4‑pin XLR for +12V DC input for external power supply or battery use.
Power_Usage:
TBC
Operating_Temperature:
0° C to 40° C (32° - 104°F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Inputs 1 SDI Loop Outputs 1 SDI Rates SD, 1.5G, 3G, 6G and 12G HDMI 2.0 Video Outputs 1 SMPTE 2110 Input / Output 1 x 10G Ethernet SMPTE ST 2110 IP Audio Inputs / Outputs 16 channels embedded input and output audio on ST‑2110 IP video via 10G Ethernet. SDI Audio Inputs 16 channels embedded audio. SDI Audio Outputs 16 channels embedded audio. HDMI Audio Inputs 8 channels embedded audio. HDMI Audio Outputs 8 channels embedded audio. Analog Audio Outputs 10 channels of professional balanced analog audio with 3‑pin XLR connectors. 1 x 6.35 mm headphone jack. Webcam Outputs 1 x USB‑C up to 1080p60 Ethernet Ethernet supports 10/100/1000/10G BASE‑T for SMPTE 2110 IP video in and out, configuration and software updates. Computer Interface USB‑C for webcam out, updates and configuration
Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SMPTE Compliance SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1 SDI Metadata Support RP 188/SMPTE 12M‑2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz and 24 bit. Color Precision 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10‑bit YUV 4:2:2 in all modes. Color Space Rec. 601, Rec. 709, Rec. 2020 HDMI HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 HDMI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 HDMI 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. HDMI Color Precision 4:2:2 HDMI Color Space YUV
Ip_Video_Compliance:
SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M‑2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec used when converting 2160p59.94 and 2160p60 to 10G 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS‑SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Control:
Built in Control Panel Built in control panel including 4 buttons, spin knob control and 2.2 inch color display. External Control RJ-45 10Gb/s Ethernet and USB‑C. REST API over Ethernet for external control via HTTP when used with REST client applications.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. Power Supply 1 x IEC C14 socket for AC power. 1 x 4‑pin XLR for +12V DC input for external power supply or battery use. Power Usage TBC
Environmental_Specifications:
Operating Temperature 0° C to 40° C (32° - 104°F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Blackmagic 2110 IP SDI to HDMI 12G-10 Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Hdmi_Audio_Outputs:
8 channels embedded audio.
Ethernet:
Ethernet supports 10/100/1000/10G BASE‑T for SMPTE 2110 IP video in and out, configuration and software updates.
Hdmi_Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Hdmi_Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Hdmi_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Smpte_Compliance:
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1
Hdmi_Color_Precision:
4:2:2
Hdmi_Color_Space:
YUV
Codec:
Blackmagic IP10 codec used when converting 2160p59.94 and 2160p60 to 10G 2110 IP video.
Displays:
Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings.
Sdi_Rates:
SD, 1.5G, 3G, 6G and 12G
Analog_Audio_Outputs:
10 channels of professional balanced analog audio with 3‑pin XLR connectors. 1 x 6.35 mm headphone jack.
Sdi_Audio_Outputs:
16 channels embedded audio.
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Hdmi_20_Video_Outputs:
1.0
Hdmi_Audio_Inputs:
8 channels embedded audio.
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Smpte_St_2110_Ip_Audio_Inputs_Outputs:
16 channels embedded input and output audio on ST‑2110 IP video via 10G Ethernet.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Local_Audio_Monitoring:
Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.
Audio:
Local Audio Monitoring Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.
Webcam_Outputs:
1 x USB‑C up to 1080p60
Src:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-sdi-to-hdmi-12g-10-sm.jpg?_v=1747356671
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-sdi-to-hdmi-12g-10-md.jpg?_v=1747356671
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-sdi-to-hdmi-12g-10-xl.jpg?_v=1747356671
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-sdi-to-hdmi-12g-10-sm.jpg?_v=1747356671
Blackmagic 2110 IP UpDownCross 12G
Add to Compare
View Details
Blackmagic 2110 IP UpDownCross 12G
Price:
HK$4,500
Description:
Blackmagic 2110 IP UpDownCross 12G is a professional standards converter that lets you convert between any equipment with SMPTE-2110 IP video, 12G‑SDI and HDMI video connections. You get the highest quality conversion between all SD, HD or Ultra HD video standards plus reference input for built in re-sync and redundant power supplies.
Sdi_Inputs:
1.0
Sdi_Loop_Outputs:
1.0
Sdi_Outputs:
2.0
Sdi_Audio_Inputs:
16 channels embedded audio.
Smpte_2110_Input_Output:
1 x 10G Ethernet
Reference_Output:
1
Computer_Interface:
USB‑C for configuration and firmware updates.
Sdi_Metadata_Support:
RP 188/SMPTE 12M-2 and closed captioning.
Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Color_Precision:
8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
Color_Space:
Rec. 601, Rec. 709, Rec. 2020
Smpte_211020_Uncompressedvideo:
IGMP v2
Smpte_211021_Trafficshaping:
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
Smpte_211030_Pcm:
Audio Conformance level: Level C
Smpte_211040_Ancillarydata:
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision_Time_Protocol:
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
Nmos_Is04_Discovery_And_Registration:
v1.3.2 Peer-to-peer via mDNS/DNS‑SD
Nmos_Is05_Connection_Management:
v1.1.2
Nmos_Bcp00201:
Natural Grouping
Nmos_Bcp00401:
Receiver capabilities
Built_In_Control_Panel:
Built in control panel including 3 buttons, spin knob control and 2.2 inch color display.
External_Control:
RJ-45 10Gb/s Ethernet and USB-C. REST API over Ethernet for external control via HTTP when used with REST client applications.
Na:
Windows 10 and 11.
Power_Supply:
1 x Internal 100 - 240V AC 50/60Hz.
Power_Inputs:
1 x IEC C14 socket for AC power. 1 x 12V DC Input
Power_Usage:
30 W max.
Operating_Temperature:
0° C to 40° C (32° ‑ 104°F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Inputs 1 SDI Loop Outputs 1 SDI Outputs 2 SDI Rates SD, 1.5G, 3G, 6G and 12G HDMI 2.0 Video Inputs 1 HDMI 2.0 Video Outputs 1 SMPTE 2110 Input / Output 1 x 10G Ethernet SMPTE ST 2110 IP Audio Inputs / Outputs 16 channels embedded input and output audio on ST‑2110 IP video via 10G Ethernet. SDI Audio Inputs 16 channels embedded audio. SDI Audio Outputs 16 channels embedded audio. HDMI Audio Inputs 8 channels embedded audio. HDMI Audio Outputs 8 channels embedded audio. Analog Audio Outputs 1 x 6.35 mm headphone jack. Reference In 1 Reference Output 1 Ethernet Ethernet supports 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out, configuration and software updates. Computer Interface USB‑C for configuration and firmware updates.
Video_Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL 2K Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI SMPTE Compliance SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1 SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. Audio Sampling Television standard sample rate of 48 kHz and 24 bit. Color Precision 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. Color Space Rec. 601, Rec. 709, Rec. 2020 HDMI HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 HDMI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 HDMI 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. HDMI Color Precision 4:2:2 HDMI Color Space YUV
Ip_Video_Compliance:
SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec used when converting 2160p59.94 and 2160p60 to 10G 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS‑SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Control:
Built in Control Panel Built in control panel including 3 buttons, spin knob control and 2.2 inch color display. External Control RJ-45 10Gb/s Ethernet and USB-C. REST API over Ethernet for external control via HTTP when used with REST client applications.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Power_Requirements:
Power Supply 1 x Internal 100 - 240V AC 50/60Hz. Power Inputs 1 x IEC C14 socket for AC power. 1 x 12V DC Input Power Usage 30 W max.
Environmental_Specifications:
Operating Temperature 0° C to 40° C (32° ‑ 104°F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Blackmagic 2110 IP UpDownCross 12G Welcome wallet with QR code for software download
Warranty:
1 Year Limited Manufacturer’s Warranty.
Hdmi_Audio_Outputs:
8 channels embedded audio.
Ethernet:
Ethernet supports 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out, configuration and software updates.
Hdmi_Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Hdmi_Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Hdmi_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Smpte_Compliance:
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1
Hdmi_Color_Precision:
4:2:2
Hdmi_Color_Space:
YUV
Codec:
Blackmagic IP10 codec used when converting 2160p59.94 and 2160p60 to 10G 2110 IP video.
Displays:
Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings.
Sdi_Rates:
SD, 1.5G, 3G, 6G and 12G
Analog_Audio_Outputs:
1 x 6.35 mm headphone jack.
Sdi_Audio_Outputs:
16 channels embedded audio.
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Hdmi_20_Video_Inputs:
1.0
Hdmi_20_Video_Outputs:
1.0
Hdmi_Audio_Inputs:
8 channels embedded audio.
Col_2k_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Smpte_St_2110_Ip_Audio_Inputs_Outputs:
16 channels embedded input and output audio on ST‑2110 IP video via 10G Ethernet.
Reference_In:
1.0
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Local_Audio_Monitoring:
Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.
Audio:
Local Audio Monitoring Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.
Src:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-updowncross-12g-sm.jpg?_v=1743131363
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-updowncross-12g-md.jpg?_v=1743131363
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-updowncross-12g-xl.jpg?_v=1743131362
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagic2110ipconverter/techspecs/hero/blackmagic-2110-ip-updowncross-12g-sm.jpg?_v=1743131363
Blackmagic Studio Fiber Converter
Add to Compare
View Details
Blackmagic Studio Fiber Converter
Price:
HK$27,250
Description:
Work with remote cameras up to 2 km away from your studio or outside broadcast truck using SMPTE fiber. The Blackmagic Studio Fiber Converter converts SDI video, audio, and remote camera control connections into a single optical fiber cable, which connects to a Blackmagic Camera Fiber Converter attached to a remote camera. All video and data are transmitted using standard IP for extremely low latency broadcast quality video. You get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections for camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds. The Blackmagic Studio Fiber Converter also provides power for your remote cameras and accessories.
Optical_Fiber_Input:
1x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector.
Sdi_Video_Output:
2x 12G SDI for Ultra HD up to 60p.
Talkback_Audio:
SDI Channels 15 and 16 for Production, Analogue in and out supported via 25-pin connector for Production and Engineering talkback support.
Computer_Interface:
1x USB-C.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M.
Audio_Sampling:
Television standard sample rate of 48Khz, 24 bit A/D conversion.
Video_Sampling:
4:2:2
Color_Precision:
10-bit
Color_Space:
REC 709, REC 2020.
Multiple_Rate_Support:
SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.
Software_Included:
Camera Utility for firmware update.
Na:
Windows 10 and 11.
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
Optical Fiber Input 1x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector. SDI Video Input 3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1. SDI Video Output 2x 12G SDI for Ultra HD up to 60p. Talkback Audio SDI Channels 15 and 16 for Production, Analogue in and out supported via 25-pin connector for Production and Engineering talkback support. Balanced XLR Audio Outputs 4x camera analogue audio outputs. Optical Fiber Outputs 1x Optical I/O via 10 Gb-E (not currently active). Computer Interface 1x USB-C.
Standards:
HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Compliance SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M. Audio Sampling Television standard sample rate of 48Khz, 24 bit A/D conversion. Video Sampling 4:2:2 Color Precision 10-bit Color Space REC 709, REC 2020. Multiple Rate Support SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.
Software:
Software Included Camera Utility for firmware update.
Operating_Systems:
Mac 13.0 Ventura, Mac 14.0 Sonoma or later. Windows 10 and 11.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Sdi_Video_Input:
3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1.
Balanced_Xlr_Audio_Outputs:
4x camera analogue audio outputs.
Optical_Fiber_Outputs:
1x Optical I/O via 10 Gb-E (not currently active).
Power_Supply:
100 - 240V AC input.
Power_Requirements:
Power Supply 100 - 240V AC input.
Src:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-studio-fiber-converter-sm.jpg?_v=1574048849
Col_1120w:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-studio-fiber-converter-md.jpg?_v=1574048848
Col_1324w:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-studio-fiber-converter-xl.jpg?_v=1574048848
Col_662w:
https://images.blackmagicdesign.com/images/products/blackmagicfiberconverters/techspecs/hero/blackmagic-studio-fiber-converter-sm.jpg?_v=1574048849
Micro Converter BiDirectional SDI/HDMI 12G
Add to Compare
View Details
Micro Converter BiDirectional SDI/HDMI 12G
Price:
HK$1,400
Description:
Now you can convert SDI to HDMI and HDMI to SDI in all SD, HD and Ultra HD formats up to 2160p60! Each conversion direction can be a different SD, HD or Ultra HD video standard, it’s like getting two converters in one! The all metal durable design is perfect for live production and broadcast. Plus it’s small enough to be hidden and used anywhere. It can be powered from any USB-C socket!
Sdi_Video_Inputs:
1
Sdi_Video_Outputs:
Automatically matches the HDMI video input.
Hdmi_20_Video_Outputs:
1 x type A.
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Multi_Rate_Support:
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Updates_Configurations_And_Power:
USB Type‑C.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
Sdi_Videorates:
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
Sdi_Color_Precision:
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output.
Hdmi_Video_Standards:
525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Hdmi_Color_Precision:
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
Hdmi_Color_Space:
YUV
Na:
Internal software upgrade via USB.
Power_Consumption:
5W max.
Operational_Voltage_Range:
4.4V to 5.25V DC
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 SDI Video Outputs Automatically matches the HDMI video input. HDMI 2.0 Video Inputs 1 x type A. HDMI 2.0 Video Outputs 1 x type A. SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Multi Rate Support Auto detection of SD, HD, 2K, Ultra HD and 4K. Updates, Configurations and Power USB Type‑C. Reclocking Yes
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 SDI Video Rates SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. SDI Color Precision 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output. HDMI Video Standards 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. HDMI Color Precision 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. HDMI Color Space YUV
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Consumption 5W max. Operational Voltage Range 4.4V to 5.25V DC
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Hdmi_20_Video_Inputs:
1 x type A.
Reclocking:
Yes
Src:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-12g-sm.jpg?_v=1621827720
Col_1120w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-12g-md.jpg?_v=1621827720
Col_1324w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-12g-xl.jpg?_v=1621827720
Col_662w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-12g-sm.jpg?_v=1621827720
Micro Converter BiDirectional SDI/HDMI 12G wPSU
Add to Compare
View Details
Micro Converter BiDirectional SDI/HDMI 12G wPSU
Price:
HK$1,500
Description:
Now you can convert in both directions simultaneously! Convert SDI to HDMI and HDMI to SDI in any combination of SD, HD or Ultra HD formats all at the same time! Micro Converter BiDirectional SDI/HDMI 12G lets you simultaneously convert SDI to HDMI and HDMI to SDI in all SD, HD and Ultra HD formats up to 2160p60! Each conversion direction can be a different SD, HD or Ultra HD video standard, it’s like getting two converters in one! With multi-rate 12G-SDI input and output connections, Micro Converter BiDirectional SDI/HDMI 12G is compatible with virtually all professional broadcast equipment, including level A and B devices. It even automatically detects all SD, HD and Ultra HD formats! Micro Converter BiDirectional SDI/HDMI 12G has all you need to convert HDMI consumer gear to SDI. Use the input to convert HDMI computers or consumer cameras into 12G-SDI, while using the output for monitoring with big screen televisions or projectors! The all metal durable design is perfect for live production and broadcast. Plus it’s small enough to be hidden and used anywhere. It can be powered from any USB-C socket, or with the included power supply and international socket adapters!
Sdi_Video_Inputs:
1
Sdi_Video_Outputs:
Automatically matches the HDMI video input.
Hdmi_20_Video_Outputs:
1 x type A.
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Multi_Rate_Support:
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Updates_Configurations_And_Power:
USB Type‑C.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
Sdi_Videorates:
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
Sdi_Color_Precision:
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output.
Hdmi_Video_Standards:
525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Hdmi_Color_Precision:
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
Hdmi_Color_Space:
YUV
Na:
Internal software upgrade via USB.
Power_Consumption:
5W max.
Operational_Voltage_Range:
4.4V to 5.25V DC
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 SDI Video Outputs Automatically matches the HDMI video input. HDMI 2.0 Video Inputs 1 x type A. HDMI 2.0 Video Outputs 1 x type A. SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Multi Rate Support Auto detection of SD, HD, 2K, Ultra HD and 4K. Updates, Configurations and Power USB Type‑C. Reclocking Yes
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 SDI Video Rates SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. SDI Color Precision 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output. HDMI Video Standards 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. HDMI Color Precision 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. HDMI Color Space YUV
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply +5V universal power supply included with international socket adapters for most countries. Power Consumption 5W max. Operational Voltage Range 4.4V to 5.25V DC
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Micro Converter BiDirectional SDI/HDMI 12G wPSU +5V universal power supply with international socket adapters.
Hdmi_20_Video_Inputs:
1 x type A.
Reclocking:
Yes
Power_Supply:
+5V universal power supply included with international socket adapters for most countries.
Src:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-12g-w-psu-sm.jpg?_v=1621827720
Col_1120w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-12g-w-psu-md.jpg?_v=1621827720
Col_1324w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-12g-w-psu-xl.jpg?_v=1621827720
Col_662w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-12g-w-psu-sm.jpg?_v=1621827720
Micro Converter BiDirectional SDI/HDMI 3G
Add to Compare
View Details
Micro Converter BiDirectional SDI/HDMI 3G
Price:
HK$600
Description:
Get the world’s smallest bidirectional broadcast quality converter! Convert SDI to HDMI and at the same time HDMI to SDI, even in different formats! Plus it supports camera control protocol conversion, so you can use Blackmagic Pocket Cinema Cameras with professional SDI live production switchers!
Sdi_Video_Inputs:
1 x SD, HD or 3G-SDI.
Sdi_Video_Outputs:
Automatically matches the HDMI video input.
Multi_Rate_Support:
Auto detection of SD or HD.
Updates_Configurations_And_Power:
USB Type‑C.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD and 3G-SDI
Hdmi_Video_Standards:
525i29.97 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hdmi_Color_Precision:
4:2:2
Hdmi_Color_Space:
YUV
Na:
Internal software upgrade via USB.
Power_Consumption:
2.5 W
Operational_Voltage_Range:
4.4 to 5.25V DC
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 x SD, HD or 3G-SDI. SDI Video Outputs Automatically matches the HDMI video input. HDMI Video Inputs HDMI Type A in. HDMI Outputs HDMI Type A out. Multi Rate Support Auto detection of SD or HD. Updates, Configurations and Power USB Type‑C. Reclocking Yes
Standards:
SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M SDI Video Rates SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD and 3G-SDI HDMI Video Standards 525i29.97 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HDMI Color Precision 4:2:2 HDMI Color Space YUV
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Consumption 2.5 W Operational Voltage Range 4.4 to 5.25V DC
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Reclocking:
Yes
Hdmi_Outputs:
HDMI Type A out.
Sdi_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Sdi_Video_Rates:
SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility.
Hdmi_Video_Inputs:
HDMI Type A in.
Src:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-3g-sm.jpg?_v=1597709767
Col_1120w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-3g-md.jpg?_v=1597709767
Col_1324w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-3g-xl.jpg?_v=1597709766
Col_662w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-3g-sm.jpg?_v=1597709767
Micro Converter BiDirectional SDI/HDMI 3G wPSU
Add to Compare
View Details
Micro Converter BiDirectional SDI/HDMI 3G wPSU
Price:
HK$650
Description:
Get the world’s smallest bidirectional broadcast quality converter! Convert SDI to HDMI and at the same time HDMI to SDI, even in different formats! Plus it supports camera control protocol conversion, so you can use Blackmagic Pocket Cinema Cameras with professional SDI live production switchers! Includes 100 to 240V AC power supply with international socket adapters.
Sdi_Video_Inputs:
1 x SD, HD or 3G-SDI.
Sdi_Video_Outputs:
Automatically matches the HDMI video input.
Multi_Rate_Support:
Auto detection of SD or HD.
Updates_Configurations_And_Power:
USB Type‑C.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD and 3G-SDI
Hdmi_Video_Standards:
525i29.97 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hdmi_Color_Precision:
4:2:2
Hdmi_Color_Space:
YUV
Na:
Internal software upgrade via USB.
Power_Consumption:
2.5 W
Operational_Voltage_Range:
4.4 to 5.25V DC
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 x SD, HD or 3G-SDI. SDI Video Outputs Automatically matches the HDMI video input. HDMI Video Inputs HDMI Type A in. HDMI Outputs HDMI Type A out. Multi Rate Support Auto detection of SD or HD. Updates, Configurations and Power USB Type‑C. Reclocking Yes
Standards:
SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M SDI Video Rates SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD and 3G-SDI HDMI Video Standards 525i29.97 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HDMI Color Precision 4:2:2 HDMI Color Space YUV
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply +5V universal power supply included with international socket adapters for most countries. Power Consumption 2.5 W Operational Voltage Range 4.4 to 5.25V DC
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Reclocking:
Yes
Power_Supply:
+5V universal power supply included with international socket adapters for most countries.
Hdmi_Outputs:
HDMI Type A out.
Sdi_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Sdi_Video_Rates:
SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility.
Hdmi_Video_Inputs:
HDMI Type A in.
Src:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-3g-w-psu-sm.jpg?_v=1597709767
Col_1120w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-3g-w-psu-md.jpg?_v=1597709767
Col_1324w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-3g-w-psu-xl.jpg?_v=1597709766
Col_662w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-bidirectional-sdi-hdmi-3g-w-psu-sm.jpg?_v=1597709767
Micro Converter HDMI to SDI 12G
Add to Compare
View Details
Micro Converter HDMI to SDI 12G
Price:
HK$1,050
Description:
The world’s smallest HDMI to 12G-SDI broadcast quality converter! Blackmagic Micro Converter HDMI to SDI 12G is a miniaturized broadcast quality video converter that’s perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 12G-SDI outputs which can be set to level A or B for 3G-SDI signals. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080i, 2160p rates, including 4Kp24/47.95/48 DCI. You can power it over USB from a laptop or a mobile phone charger!
Sdi_Video_Outputs:
2 Automatically matches the HDMI input.
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Multi_Rate_Support:
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Updates_Configurations_And_Power:
USB Type‑C.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
Sdi_Videorates:
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
Sdi_Color_Precision:
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD, Ultra HD and 4K DCI. Level A and B is user selectable on output for 3G‑SDI.
Hdmi_Video_Standards:
525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Hdmi_Color_Precision:
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
Hdmi_Color_Space:
YUV
Na:
Internal software upgrade via USB.
Power_Consumption:
4W max.
Operational_Voltage_Range:
4.4V to 5.25V DC
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Outputs 2 Automatically matches the HDMI input. HDMI 2.0 Video Inputs 1 x type A. SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Multi Rate Support Auto detection of SD, HD, 2K, Ultra HD and 4K. Updates, Configurations and Power USB Type‑C. Reclocking Yes
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 SDI Video Rates SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. SDI Color Precision 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD, Ultra HD and 4K DCI. Level A and B is user selectable on output for 3G‑SDI. HDMI Video Standards 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. HDMI Color Precision 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. HDMI Color Space YUV
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Consumption 4W max. Operational Voltage Range 4.4V to 5.25V DC
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Micro Converter HDMI to SDI 12G
Warranty:
3 Year Limited Manufacturer’s Warranty.
Hdmi_20_Video_Inputs:
1 x type A.
Reclocking:
Yes
Src:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-12g-sm.jpg?_v=1621827831
Col_1120w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-12g-md.jpg?_v=1621827831
Col_1324w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-12g-xl.jpg?_v=1621827831
Col_662w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-12g-sm.jpg?_v=1621827831
Micro Converter HDMI to SDI 12G wPSU
Add to Compare
View Details
Micro Converter HDMI to SDI 12G wPSU
Price:
HK$1,150
Description:
The world’s smallest HDMI to 12G-SDI broadcast quality converter! Blackmagic Micro Converter HDMI to SDI 12G is a miniaturized broadcast quality video converter that’s perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 12G-SDI outputs which can be set to level A or B for 3G-SDI signals. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080i, 2160p rates, including 4Kp24/ 47.95/48 DCI. You get a universal power supply with international AC plug adapters, or you can power it over USB from a laptop or a mobile phone charger.
Sdi_Video_Outputs:
2 Automatically matches the HDMI input.
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Multi_Rate_Support:
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Updates_Configurations_And_Power:
USB Type‑C.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
Sdi_Videorates:
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
Sdi_Color_Precision:
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD, Ultra HD and 4K DCI. Level A and B is user selectable on output for 3G‑SDI.
Hdmi_Video_Standards:
525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Hdmi_Color_Precision:
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
Hdmi_Color_Space:
YUV
Na:
Internal software upgrade via USB.
Power_Consumption:
4W max.
Operational_Voltage_Range:
4.4V to 5.25V DC
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Outputs 2 Automatically matches the HDMI input. HDMI 2.0 Video Inputs 1 x type A. SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Multi Rate Support Auto detection of SD, HD, 2K, Ultra HD and 4K. Updates, Configurations and Power USB Type‑C. Reclocking Yes
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 SDI Video Rates SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. SDI Color Precision 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD, Ultra HD and 4K DCI. Level A and B is user selectable on output for 3G‑SDI. HDMI Video Standards 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. HDMI Color Precision 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. HDMI Color Space YUV
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply +5V universal power supply included with international socket adapters for most countries. Power Consumption 4W max. Operational Voltage Range 4.4V to 5.25V DC
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Micro Converter HDMI to SDI 12G wPSU +5V universal power supply with international socket adapters.
Warranty:
3 Year Limited Manufacturer’s Warranty.
Hdmi_20_Video_Inputs:
1 x type A.
Reclocking:
Yes
Power_Supply:
+5V universal power supply included with international socket adapters for most countries.
Src:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-12g-w-psu-sm.jpg?_v=1621827831
Col_1120w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-12g-w-psu-md.jpg?_v=1621827831
Col_1324w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-12g-w-psu-xl.jpg?_v=1621827831
Col_662w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-12g-w-psu-sm.jpg?_v=1621827831
Micro Converter HDMI to SDI 3G
Add to Compare
View Details
Micro Converter HDMI to SDI 3G
Price:
HK$500
Description:
This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.
Sdi_Video_Outputs:
2 x SD, HD or 3G‑SDI. Automatically matches the HDMI input.
Multi_Rate_Support:
Auto detection of SD or HD.
Updates_Configurations_And_Power:
USB Type‑C.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD and 3G-SDI
Hdmi_Video_Standards:
525i29.97 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hdmi_Color_Precision:
4:2:2
Hdmi_Color_Space:
YUV
Na:
Internal software upgrade via USB.
Power_Consumption:
2 W
Operational_Voltage_Range:
4.4 to 5.25V DC
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Outputs 2 x SD, HD or 3G‑SDI. Automatically matches the HDMI input. HDMI Video Inputs HDMI Type A in. Multi Rate Support Auto detection of SD or HD. Updates, Configurations and Power USB Type‑C. Reclocking Yes
Standards:
SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M SDI Video Rates SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G‑SDI via setup utility. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD and 3G-SDI HDMI Video Standards 525i29.97 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HDMI Color Precision 4:2:2 HDMI Color Space YUV
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Consumption 2 W Operational Voltage Range 4.4 to 5.25V DC
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Micro Converter HDMI to SDI 3G
Warranty:
3 Year Limited Manufacturer’s Warranty.
Reclocking:
Yes
Sdi_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Sdi_Video_Rates:
SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G‑SDI via setup utility.
Hdmi_Video_Inputs:
HDMI Type A in.
Src:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-3g-sm.jpg?_v=1605503370
Col_1120w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-3g-md.jpg?_v=1605503370
Col_1324w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-3g-xl.jpg?_v=1605503370
Col_662w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-3g-sm.jpg?_v=1605503370
Micro Converter HDMI to SDI 3G wPSU
Add to Compare
View Details
Micro Converter HDMI to SDI 3G wPSU
Price:
HK$550
Description:
This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48. Includes 100 to 240V AC power supply with international socket adapters.
Sdi_Video_Outputs:
2 x SD, HD or 3G‑SDI. Automatically matches the HDMI input.
Multi_Rate_Support:
Auto detection of SD or HD.
Updates_Configurations_And_Power:
USB Type‑C.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD and 3G-SDI
Hdmi_Video_Standards:
525i29.97 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hdmi_Color_Precision:
4:2:2
Hdmi_Color_Space:
YUV
Na:
Internal software upgrade via USB.
Power_Consumption:
2 W
Operational_Voltage_Range:
4.4 to 5.25V DC
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Outputs 2 x SD, HD or 3G‑SDI. Automatically matches the HDMI input. HDMI Video Inputs HDMI Type A in. Multi Rate Support Auto detection of SD or HD. Updates, Configurations and Power USB Type‑C. Reclocking Yes
Standards:
SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M SDI Video Rates SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G‑SDI via setup utility. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD and 3G-SDI HDMI Video Standards 525i29.97 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HDMI Color Precision 4:2:2 HDMI Color Space YUV
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply +5V universal power supply included with international socket adapters for most countries. Power Consumption 2 W Operational Voltage Range 4.4 to 5.25V DC
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Micro Converter HDMI to SDI 3G wPSU +5V universal power supply with international socket adapters
Warranty:
3 Year Limited Manufacturer’s Warranty.
Reclocking:
Yes
Power_Supply:
+5V universal power supply included with international socket adapters for most countries.
Sdi_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Sdi_Video_Rates:
SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G‑SDI via setup utility.
Hdmi_Video_Inputs:
HDMI Type A in.
Src:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-3g-w-psu-sm.jpg?_v=1605503370
Col_1120w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-3g-w-psu-md.jpg?_v=1605503370
Col_1324w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-3g-w-psu-xl.jpg?_v=1605503370
Col_662w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-hdmi-to-sdi-3g-w-psu-sm.jpg?_v=1605503370
Micro Converter SDI to HDMI 12G
Add to Compare
View Details
Micro Converter SDI to HDMI 12G
Price:
HK$1,200
Description:
The world’s smallest 12G-SDI to HDMI broadcast quality converter! Blackmagic Micro Converter SDI to HDMI 12G is a miniaturized broadcast quality video converter that’s been specifically designed for professional monitoring. It includes a 33 point 3D LUT for color calibrating any monitor, projector or television. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080PsF, 1080i and 2160p rates, including 4K DCI at 24/47.95/48. You can power it over USB from a television or a mobile phone charger!
Sdi_Video_Inputs:
1
Sdi_Video_Outputs:
1 x loop out.
Hdmi_20_Video_Outputs:
1 x type A.
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Multi_Rate_Support:
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Updates_Configurations_And_Power:
USB Type‑C.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
Sdi_Videorates:
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
Sdi_Color_Precision:
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD level A or B for 3G‑SDI, 2K DCI, Ultra HD and 4K DCI.
Hdmi_Video_Standards:
525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Hdmi_Color_Precision:
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
Hdmi_Color_Space:
YUV
Na:
Internal software upgrade via USB.
Power_Consumption:
4W max.
Operational_Voltage_Range:
4.4V to 5.25V DC
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 SDI Video Outputs 1 x loop out. HDMI 2.0 Video Outputs 1 x type A. SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Multi Rate Support Auto detection of SD, HD, 2K, Ultra HD and 4K. Updates, Configurations and Power USB Type‑C.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 SDI Video Rates SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. SDI Color Precision 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD level A or B for 3G‑SDI, 2K DCI, Ultra HD and 4K DCI. HDMI Video Standards 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. HDMI Color Precision 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. HDMI Color Space YUV
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Consumption 4W max. Operational Voltage Range 4.4V to 5.25V DC
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Micro Converter SDI to HDMI 12G
Warranty:
3 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-12g-sm.jpg?_v=1621827832
Col_1120w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-12g-md.jpg?_v=1621827832
Col_1324w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-12g-xl.jpg?_v=1621827832
Col_662w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-12g-sm.jpg?_v=1621827832
Micro Converter SDI to HDMI 12G wPSU
Add to Compare
View Details
Micro Converter SDI to HDMI 12G wPSU
Price:
HK$1,350
Description:
The world’s smallest 12G-SDI to HDMI broadcast quality converter! Blackmagic Micro Converter SDI to HDMI 12G is a miniaturized broadcast quality video converter that’s been specifically designed for professional monitoring. It includes a 33 point 3D LUT for color calibrating any monitor, projector or television. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080PsF, 1080i and 2160p rates, including 4K DCI at 24/47.95/48. You get a universal power supply with international AC plug adapters, or you can power it over USB from a television or a mobile phone charger.
Sdi_Video_Inputs:
1
Sdi_Video_Outputs:
1 x loop out.
Hdmi_20_Video_Outputs:
1 x type A.
Sdi_Rates:
270Mb, 1.5G, 3G, 6G, 12G.
Multi_Rate_Support:
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Updates_Configurations_And_Power:
USB Type‑C.
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
Sdi_Videorates:
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
Sdi_Color_Precision:
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD level A or B for 3G‑SDI, 2K DCI, Ultra HD and 4K DCI.
Hdmi_Video_Standards:
525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Hdmi_Color_Precision:
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
Hdmi_Color_Space:
YUV
Na:
Internal software upgrade via USB.
Power_Consumption:
4W max.
Operational_Voltage_Range:
4.4V to 5.25V DC
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 SDI Video Outputs 1 x loop out. HDMI 2.0 Video Outputs 1 x type A. SDI Rates 270Mb, 1.5G, 3G, 6G, 12G. Multi Rate Support Auto detection of SD, HD, 2K, Ultra HD and 4K. Updates, Configurations and Power USB Type‑C.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 SDI Video Rates SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. SDI Color Precision 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD level A or B for 3G‑SDI, 2K DCI, Ultra HD and 4K DCI. HDMI Video Standards 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. HDMI Color Precision 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. HDMI Color Space YUV
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply +5V universal power supply included with international socket adapters for most countries. Power Consumption 4W max. Operational Voltage Range 4.4V to 5.25V DC
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Micro Converter SDI to HDMI 12G wPSU +5V universal power supply with international socket adapters.
Warranty:
3 Year Limited Manufacturer’s Warranty.
Power_Supply:
+5V universal power supply included with international socket adapters for most countries.
Src:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-12g-w-psu-sm.jpg?_v=1621827832
Col_1120w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-12g-w-psu-md.jpg?_v=1621827832
Col_1324w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-12g-w-psu-xl.jpg?_v=1621827832
Col_662w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-12g-w-psu-sm.jpg?_v=1621827832
Micro Converter SDI to HDMI 3G
Add to Compare
View Details
Micro Converter SDI to HDMI 3G
Price:
HK$500
Description:
This model has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48.
Sdi_Video_Inputs:
1 x SD, HD or 3G-SDI.
Sdi_Video_Outputs:
1 x SDI loop out.
Multi_Rate_Support:
Auto detection of SD or HD.
Updates_Configurations_And_Power:
USB Type‑C.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD and level A or B for 3G‑SDI.
Hdmi_Video_Standards:
525i29.97 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hdmi_Color_Precision:
4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.
Hdmi_Color_Space:
YUV
Na:
Internal software upgrade via USB.
Power_Consumption:
1.6 W
Operational_Voltage_Range:
4.4V to 5.25V DC
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 x SD, HD or 3G-SDI. SDI Video Outputs 1 x SDI loop out. HDMI Outputs HDMI Type A out. Multi Rate Support Auto detection of SD or HD. Updates, Configurations and Power USB Type‑C.
Standards:
SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M SDI Video Rates SDI video connections are switchable between standard definition, 720p, 1080i, 1080p and DCI high definition. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD and level A or B for 3G‑SDI. HDMI Video Standards 525i29.97 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HDMI Color Precision 4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color. HDMI Color Space YUV
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Consumption 1.6 W Operational Voltage Range 4.4V to 5.25V DC
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Micro Converter SDI to HDMI 3G
Warranty:
3 Year Limited Manufacturer’s Warranty.
Hdmi_Outputs:
HDMI Type A out.
Sdi_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Sdi_Video_Rates:
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p and DCI high definition.
Src:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-3g-sm.jpg?_v=1605503371
Col_1120w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-3g-md.jpg?_v=1605503371
Col_1324w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-3g-xl.jpg?_v=1605503371
Col_662w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-3g-sm.jpg?_v=1605503371
Micro Converter SDI to HDMI 3G wPSU
Add to Compare
View Details
Micro Converter SDI to HDMI 3G wPSU
Price:
HK$600
Description:
This model has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48. Includes 100 to 240V AC power supply with international socket adapters.
Sdi_Video_Inputs:
1 x SD, HD or 3G-SDI.
Sdi_Video_Outputs:
1 x SDI loop out.
Multi_Rate_Support:
Auto detection of SD or HD.
Updates_Configurations_And_Power:
USB Type‑C.
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD and level A or B for 3G‑SDI.
Hdmi_Video_Standards:
525i29.97 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Hdmi_Color_Precision:
4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.
Hdmi_Color_Space:
YUV
Na:
Internal software upgrade via USB.
Power_Consumption:
1.6 W
Operational_Voltage_Range:
4.4V to 5.25V DC
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 60° C (-4° to 140° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 x SD, HD or 3G-SDI. SDI Video Outputs 1 x SDI loop out. HDMI Outputs HDMI Type A out. Multi Rate Support Auto detection of SD or HD. Updates, Configurations and Power USB Type‑C.
Standards:
SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M SDI Video Rates SDI video connections are switchable between standard definition, 720p, 1080i, 1080p and DCI high definition. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD and level A or B for 3G‑SDI. HDMI Video Standards 525i29.97 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HDMI Color Precision 4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color. HDMI Color Space YUV
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply +5V universal power supply included with international socket adapters for most countries. Power Consumption 1.6 W Operational Voltage Range 4.4V to 5.25V DC
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Micro Converter SDI to HDMI 3G wPSU +5V universal power supply with international socket adapters
Warranty:
3 Year Limited Manufacturer’s Warranty.
Power_Supply:
+5V universal power supply included with international socket adapters for most countries.
Hdmi_Outputs:
HDMI Type A out.
Sdi_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Sdi_Video_Rates:
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p and DCI high definition.
Src:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-3g-w-psu-sm.jpg?_v=1605503371
Col_1120w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-3g-w-psu-md.jpg?_v=1605503371
Col_1324w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-3g-w-psu-xl.jpg?_v=1605503371
Col_662w:
https://images.blackmagicdesign.com/images/products/microconverters/techspecs/hero/micro-converter-sdi-to-hdmi-3g-w-psu-sm.jpg?_v=1605503371
Mini Converter Analog to SDI
Add to Compare
View Details
Mini Converter Analog to SDI
Price:
HK$1,850
Description:
The ideal solution for converting analog component, s-video, NTSC/PAL composite to SDI video. Audio can be embedded from balanced analog or AES/EBU inputs. Now you can convert analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD-SDI video.
Sdivideo_Outputs:
2 x SDI Video Outputs.
Multi_Rate_Support:
Auto detection of SD or HD.
Updates_And_Configuration:
Via USB 2.0 high speed. (480 Mb/s)
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU‑R BT.656 and ITU‑R BT.601.
Sdivideo_Sampling:
4:2:2
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically follows format of analog input.
Software_Control:
Mac™ and Windows™ software upgrade via USB.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Operational_Voltage_Range:
12 ‑ 31V DC
Power_Consumption:
6.50 Watts
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Outputs 2 x SDI Video Outputs. Analog Video Inputs NTSC, PAL, S‑Video and Component SD/HD input. Analog Audio Inputs 2 channels of balanced analog audio. Digital Audio Inputs 2 channels of balanced AES/EBU audio. Multi Rate Support Auto detection of SD or HD. Updates and Configuration Via USB 2.0 high speed. (480 Mb/s) Reclocking Yes
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU‑R BT.656 and ITU‑R BT.601. SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically follows format of analog input. Analog Color Space YUV Analog Color Precision 4:2:2
Software:
Software Control Mac™ and Windows™ software upgrade via USB. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Mini Switches or USB software.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for most countries. Cable tie point. Power Consumption 6.50 Watts Operational Voltage Range 12 ‑ 31V DC
Environmental_Specifications:
Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Mini Converter Analog to SDI 12V AC adapter with international socket adapters for all countries.
Warranty:
3 Year Limited Manufacturer’s Warranty.
Analog_Audio_Inputs:
2 channels of balanced analog audio.
Digital_Audio_Inputs:
2 channels of balanced AES/EBU audio.
Power_Supply:
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
Operating_Temperature.1:
0° to 40° C (32° to 104° F)
Storage_Temperature.1:
-20° to 45° C (-4° to 113° F)
Analog_Color_Space:
YUV
Analog_Color_Precision:
4:2:2
Analog_Video_Inputs:
NTSC, PAL, S‑Video and Component SD/HD input.
Src:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-analog-to-sdi-sm.jpg?_v=1518999895
Col_1120w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-analog-to-sdi-md.jpg?_v=1518999895
Col_1324w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-analog-to-sdi-xl.jpg?_v=1518999895
Col_662w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-analog-to-sdi-sm.jpg?_v=1518999895
Mini Converter Audio to SDI
Add to Compare
View Details
Mini Converter Audio to SDI
Price:
HK$1,800
Description:
Embed audio into any SDI source in SD and HD formats up to 1080p60! Audio is input as balanced analog or AES/EBU using¼ inchconnectors from equipment such as mixers and analog decks. Mini Converter Audio to SDI is the ideal SD/HD SDI audio embedder for when you don’t need the cost of theUltra HD model!
Sdivideo_Inputs:
1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
Sdivideo_Outputs:
1 x Embedded SDI Output.
Sdi_Redundant_Input:
Automatically switches over if main SDI input is lost.
Multi_Rate_Support:
Auto detection of SD, HD or 3G‑SDI.
Updates_And_Configuration:
Via USB 2.0 high speed. (480 Mb/s)
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Videorates:
SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI.
Sdivideo_Sampling:
4:2:2, 4:4:4
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Sdi_Color_Precision:
4:2:2, 4:4:4
Sdi_Color_Space:
YUV, RGB
Sdi_Auto_Switching:
Automatically selects between SD, HD, and 3G‑SDI.
Software_Control:
Mac™ and Windows™ software upgrade via USB.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Operational_Voltage_Range:
12V DC
Power_Consumption:
8.40 Watts
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs 1 x Embedded SDI Output. Analog Audio Inputs 4 channels of balanced analog audio. Digital Audio Inputs 8 channels of balanced AES/EBU audio. SDI Redundant Input Automatically switches over if main SDI input is lost. Multi Rate Support Auto detection of SD, HD or 3G‑SDI. Updates and Configuration Via USB 2.0 high speed. (480 Mb/s) Reclocking Yes
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601 SDI Video Rates SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI. SDI Video Sampling 4:2:2, 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2, 4:4:4 SDI Color Space YUV, RGB SDI Auto Switching Automatically selects between SD, HD, and 3G‑SDI.
Software:
Software Control Mac™ and Windows™ software upgrade via USB. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Mini Switches or USB software.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for most countries. Cable tie point. Power Consumption 8.40 Watts Operational Voltage Range 12V DC
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Mini Converter Audio to SDI 12V universal power supply with international socket adapters
Warranty:
3 Year Limited Manufacturer’s Warranty.
Analog_Audio_Inputs:
4 channels of balanced analog audio.
Digital_Audio_Inputs:
8 channels of balanced AES/EBU audio.
Power_Supply:
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
Src:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-audio-to-sdi-sm.jpg?_v=1518999897
Col_1120w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-audio-to-sdi-md.jpg?_v=1518999896
Col_1324w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-audio-to-sdi-xl.jpg?_v=1518999897
Col_662w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-audio-to-sdi-sm.jpg?_v=1518999897
Mini Converter Audio to SDI 4K
Add to Compare
View Details
Mini Converter Audio to SDI 4K
Price:
HK$2,700
Description:
Mini Converter Audio to SDI 4K includes everything you need to embed 4 channels of analog audio or 8 channels of AES/EBUdigital audiointo any SDI video connection. Now you can embed professional audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers anddecks or to addextra audio channels to video converters!
Sdivideo_Inputs:
1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
Sdivideo_Outputs:
1 x Embedded SDI Output.
Sdi_Redundant_Input:
Automatically switches over if main SDI input is lost.
Multi_Rate_Support:
Auto detection SD, HD or 6G‑SDI.
Updates_And_Configuration:
Via USB 2.0 high speed. (480 Mb/s)
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultrahd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Col_4k_Video_Standards:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Videorates:
SDI video inputs are automatically detected between standard definition and high definition.
Sdivideo_Sampling:
4:2:2, 4:4:4
Sdi_Audio_Sampling:
Television standard sample rate of 48kHz and 24‑bit.
Sdi_Color_Precision:
4:2:2, 4:4:4
Sdi_Color_Space:
YUV, RGB
Sdi_Auto_Switching:
Automatically selects between SD, HD, 3G and 6G‑SDI.
Software_Control:
Mac™ and Windows™ software upgrade via USB.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Operational_Voltage_Range:
12 ‑ 31V DC
Power_Consumption:
8.40 Watts
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs 1 x Embedded SDI Output. Analog Audio Inputs 4 channels of professional balanced analog audio with standard 1/4 inch jack connections. Digital Audio Inputs 8 channels of professional balanced digital with standard 1/4 inch jack connections. SDI Redundant Input Automatically switches over if main SDI input is lost. Multi Rate Support Auto detection SD, HD or 6G‑SDI. Updates and Configuration Via USB 2.0 high speed. (480 Mb/s) Reclocking Yes
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601 SDI Video Rates SDI video inputs are automatically detected between standard definition and high definition. SDI Video Sampling 4:2:2, 4:4:4 SDI Audio Sampling Television standard sample rate of 48kHz and 24‑bit. SDI Color Precision 4:2:2, 4:4:4 SDI Color Space YUV, RGB SDI Auto Switching Automatically selects between SD, HD, 3G and 6G‑SDI.
Software:
Software Control Mac™ and Windows™ software upgrade via USB. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Mini Switches or USB software.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for most countries. Cable tie point. Power Consumption 8.40 Watts Operational Voltage Range 12 ‑ 31V DC
Environmental_Specifications:
Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Mini Converter Audio to SDI 4K 12V universal power supply with international socket adapters
Warranty:
3 Year Limited Manufacturer’s Warranty.
Analog_Audio_Inputs:
4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
Digital_Audio_Inputs:
8 channels of professional balanced digital with standard 1/4 inch jack connections.
Power_Supply:
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
Operating_Temperature.1:
0° to 40° C (32° to 104° F)
Storage_Temperature.1:
-20° to 45° C (-4° to 113° F)
Src:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-audio-to-sdi-4k-sm.jpg?_v=1518999896
Col_1120w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-audio-to-sdi-4k-md.jpg?_v=1518999896
Col_1324w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-audio-to-sdi-4k-xl.jpg?_v=1518999896
Col_662w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-audio-to-sdi-4k-sm.jpg?_v=1518999896
Mini Converter HDMI to SDI 6G
Add to Compare
View Details
Mini Converter HDMI to SDI 6G
Price:
HK$1,300
Description:
Mini Converter HDMI to SDI 6G includes everything you need to convert from HDMI devices to SDI video in SD, HD and Ultra HD video formats. With independent audio connections you can also embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Mini Converter HDMI to SDI 6G is the perfect solution to convert HDMI consumer cameras or computers to broadcast quality SDI!
Sdivideo_Outputs:
2 x SDI Video Outputs. Automatically matches the SD, HD and 6G‑SDI HDMI video input.
Multi_Rate_Support:
Auto detection of SD, HD or 6G‑SDI.
Updates_And_Configuration:
USB
Reclocking:
Yes
Sd_Video_Standards:
625i50 PAL, 525i29.97 NTSC
Hd_Video_Standards:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultrahd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Col_4k_Video_Standards:
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
Sdivideo_Sampling:
4:2:2
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD or 6G‑SDI.
Hdmi_Video_Standards:
625i50 PAL, 525i29.97 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Hdmi_Color_Space:
YUV and RGB
Hdmi_Color_Precision:
4:2:2 and 4:4:4
Software_Control:
Mac OS and Windows software upgrade via USB.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Operational_Voltage_Range:
12 ‑ 18V DC
Power_Consumption:
4.44 Watts
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (‑4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Outputs 2 x SDI Video Outputs. Automatically matches the SD, HD and 6G‑SDI HDMI video input. HDMI Video Inputs HDMI type A in Analog Audio Inputs 2 channels of professional balanced analog audio with standard 1/4 inch jack connections. Digital Audio Inputs 2 channels of AES/EBU digital audio. Multi Rate Support Auto detection of SD, HD or 6G‑SDI. Updates and Configuration USB Reclocking Yes
Standards:
SD Video Standards 625i50 PAL, 525i29.97 NTSC HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601 SDI Video Rates SDI video inputs are automatically detected between standard definition, high definition, 3G‑SDI and 6G-SDI. HDMI to SDI 6G supports level B only on 3G-SDI output. SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD or 6G‑SDI. HDMI Video Standards 625i50 PAL, 525i29.97 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 HDMI Color Space YUV and RGB HDMI Color Precision 4:2:2 and 4:4:4 Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Software:
Software Control Mac OS and Windows software upgrade via USB. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Mini Switches or USB software.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for most countries. Cable tie point. Power Consumption 4.44 Watts Operational Voltage Range 12 ‑ 18V DC
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (‑4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Mini Converter HDMI to SDI 6G 12V universal power supply with international socket adapters
Warranty:
3 Year Limited Manufacturer’s Warranty.
Hdmi_Video_Inputs:
HDMI type A in
Analog_Audio_Inputs:
2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
Digital_Audio_Inputs:
2 channels of AES/EBU digital audio.
Sdivideo_Rates:
SDI video inputs are automatically detected between standard definition, high definition, 3G‑SDI and 6G-SDI. HDMI to SDI 6G supports level B only on 3G-SDI output.
Copy_Protection:
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Power_Supply:
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
Format_Conversion:
HD down conversion
Src:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-hdmi-to-sdi-6g-sm.jpg?_v=1518999897
Col_1120w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-hdmi-to-sdi-6g-md.jpg?_v=1518999897
Col_1324w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-hdmi-to-sdi-6g-xl.jpg?_v=1518999898
Col_662w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-hdmi-to-sdi-6g-sm.jpg?_v=1518999897
Mini Converter Optical Fiber 12G
Add to Compare
View Details
Mini Converter Optical Fiber 12G
Price:
HK$1,400
Description:
Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, you can even have different video standards going in each direction! The 12G‑SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. You can install any standard 3G, 6G or 12G‑SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.
Sdivideo_Outputs:
Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber.
Multi_Rate_Support:
Auto detection of SD, HD or 12G-SDI.
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Col_4k_Video_Standards:
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24-bit.
Sdi_Color_Precision:
4:2:2 and 4:4:4
Sdi_Color_Space:
YUV and RGB
Sdi_Auto_Switching:
Automatically detects SD, HD or 12G-SDI.
Na:
Windows 10, 64-bit.
Operational_Voltage_Range:
6 - 36V DC
Power_Consumption:
2 Watts
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input. SDI Video Outputs Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber. Optical Fiber Connection (optional) 1 x SMPTE optical fiber SFP socket. Optical fiber SFP module sold separately. Optical Fiber Video Inputs 1 x 10 bit SD/HD/12G-SDI switchable. Optical Fiber Video Outputs Automatically matches the SD, HD and 12G-SDI video input. Optical Fiber Audio Inputs 16 channel embedded. Optical Fiber Audio Outputs 16 channel embedded. Multi Rate Support Auto detection of SD, HD or 12G-SDI. Reclocking Yes
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI. SDI Video Rates SDI video inputs are automatically detected between standard definition, high definition, level A or level B 3G‑SDI, 6G-SDI and 12G-SDI. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Color Precision 4:2:2 and 4:4:4 SDI Color Space YUV and RGB SDI Auto Switching Automatically detects SD, HD or 12G-SDI. ASI Support Yes
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
No user controls.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for most countries. Cable tie point. Power Consumption 2 Watts Operational Voltage Range 6 - 36V DC
Environmental_Specifications:
Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Mini Converter Optical Fiber 12G +12V universal power supply with international socket adapters
Warranty:
3 Year Limited Manufacturer’s Warranty.
Sdivideo_Rates:
SDI video inputs are automatically detected between standard definition, high definition, level A or level B 3G‑SDI, 6G-SDI and 12G-SDI.
Power_Supply:
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
Operating_Temperature.1:
0° to 40° C (32° to 104° F)
Storage_Temperature.1:
-20° to 45° C (-4° to 113° F)
Asi_Support:
Yes
Sdi_Video_Inputs:
1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input.
Optical_Fiber_Connection_Optional:
1 x SMPTE optical fiber SFP socket. Optical fiber SFP module sold separately.
Optical_Fiber_Video_Inputs:
1 x 10 bit SD/HD/12G-SDI switchable.
Optical_Fiber_Video_Outputs:
Automatically matches the SD, HD and 12G-SDI video input.
Optical_Fiber_Audio_Inputs:
16 channel embedded.
Optical_Fiber_Audio_Outputs:
16 channel embedded.
Ultra_Hd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Sdi_Video_Sampling:
4:2:2 and 4:4:4
Src:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-optical-fiber-12g-sm.jpg?_v=1518999898
Col_1120w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-optical-fiber-12g-md.jpg?_v=1518999898
Col_1324w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-optical-fiber-12g-xl.jpg?_v=1518999898
Col_662w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-optical-fiber-12g-sm.jpg?_v=1518999898
Mini Converter SDI Distribution
Add to Compare
View Details
Mini Converter SDI Distribution
Price:
HK$1,400
Description:
Now you can distribute a single SD or HD‑SDI connectionto up to 8 differentSDI outputs at the same time! You get a true 3G‑SDI design with fully re‑clocked outputs and automatic switching between all SD and HD formats up to 1080p60. You also get support for all ASI, ancillary and embedded audio formats. Mini Converter SDI Distribution is the perfect SD/HD SDI distribution converter for when you don’t need the cost of the Ultra HD model!
Sdivideo_Inputs:
1 x SDI Video Input. Switchable between SD, HD and 3G‑SDI.
Sdivideo_Outputs:
8 outputs automatically match the SDI video input.
Multi_Rate_Support:
Auto detection of SD, HD or 3G‑SDI.
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60.
Col_2k_Video_Standards:
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Videorates:
SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI.
Sdivideo_Sampling:
4:2:2 and 4:4:4
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Sdi_Color_Precision:
4:2:2 and 4:4:4
Sdi_Color_Space:
YUV and RGB
Sdi_Auto_Switching:
Automatically detects SD, HD or 3G‑SDI.
Na:
Windows 10, 64-bit.
Operational_Voltage_Range:
12 ‑ 31V DC
Power_Consumption:
4.80 Watts
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 x SDI Video Input. Switchable between SD, HD and 3G‑SDI. SDI Video Outputs 8 outputs automatically match the SDI video input. Multi Rate Support Auto detection of SD, HD or 3G‑SDI. Reclocking Yes
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60. 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601 SDI Video Rates SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2 and 4:4:4 SDI Color Space YUV and RGB SDI Auto Switching Automatically detects SD, HD or 3G‑SDI. ASI Support Yes
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for most countries. Cable tie point. Power Consumption 4.80 Watts Operational Voltage Range 12 ‑ 31V DC
Environmental_Specifications:
Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Mini Converter SDI Distribution 12V universal power supply with international socket adapters
Warranty:
3 Year Limited Manufacturer’s Warranty.
Power_Supply:
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
Operating_Temperature.1:
0° to 40° C (32° to 104° F)
Storage_Temperature.1:
-20° to 45° C (-4° to 113° F)
Asi_Support:
Yes
Src:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-distribution-sm.jpg?_v=1518999902
Col_1120w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-distribution-md.jpg?_v=1518999902
Col_1324w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-distribution-xl.jpg?_v=1518999902
Col_662w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-distribution-sm.jpg?_v=1518999902
Mini Converter SDI Distribution 4K
Add to Compare
View Details
Mini Converter SDI Distribution 4K
Price:
HK$2,600
Description:
When you need to connect to multiple SDI devices,then Mini Converter SDIDistribution 4K is the perfect solution! Connect a single SDI source to 8 re‑clocked SDI outputs with automatic switching between all SD‑SDI, HD‑SDI, 3G‑SDI and 6G‑SDI video formats, plus all ASI, ancillary andembedded audio formats.
Sdivideo_Inputs:
Switchable between SD, HD and 6G‑SDI.
Sdivideo_Outputs:
8 outputs automatically match the SDI video input.
Multi_Rate_Support:
Auto detection of SD, HD or 6G‑SDI.
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
Col_2k_Video_Standards:
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultrahd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Col_4k_Video_Standards:
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Videorates:
SDI video inputs are automatically detected between standard definition and high definition.
Sdivideo_Sampling:
4:2:2 and 4:4:4
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Sdi_Color_Precision:
4:2:2 and 4:4:4
Sdi_Color_Space:
YUV and RGB
Sdi_Auto_Switching:
Automatically detects SD, HD or 6G‑SDI.
Na:
Windows 10, 64-bit.
Operational_Voltage_Range:
12 ‑ 31V DC
Power_Consumption:
4.80 Watts
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs Switchable between SD, HD and 6G‑SDI. Reclocking Yes SDI Video Outputs 8 outputs automatically match the SDI video input. Multi Rate Support Auto detection of SD, HD or 6G‑SDI.
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601 SDI Video Rates SDI video inputs are automatically detected between standard definition and high definition. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2 and 4:4:4 SDI Color Space YUV and RGB SDI Auto Switching Automatically detects SD, HD or 6G‑SDI. ASI Support Yes
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for most countries. Cable tie point. Power Consumption 4.80 Watts Operational Voltage Range 12 ‑ 31V DC
Environmental_Specifications:
Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Mini Converter SDI Distribution 4K 12V universal power supply with international socket adapters
Warranty:
3 Year Limited Manufacturer’s Warranty.
Power_Supply:
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
Operating_Temperature.1:
0° to 40° C (32° to 104° F)
Storage_Temperature.1:
-20° to 45° C (-4° to 113° F)
Asi_Support:
Yes
Src:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-distribution-4k-sm.jpg?_v=1518999901
Col_1120w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-distribution-4k-md.jpg?_v=1518999901
Col_1324w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-distribution-4k-xl.jpg?_v=1518999901
Col_662w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-distribution-4k-sm.jpg?_v=1518999901
Mini Converter SDI to Analog
Add to Compare
View Details
Mini Converter SDI to Analog
Price:
HK$1,800
Description:
The perfect way to convert from SD and HD‑SDI to analog component, s‑video or NTSC/PAL composite. Mini Converter SDI to analog supports all SD and HD input formats up to 1080p30 and includes a down converter for when you need to convert from HD to standard definition analog formats such as s‑video and composite. Audio can be de‑embedded to balanced analog or AES/EBU. Mini Converter SDI to Analog is ideal for converting to olderanalog equipmentwhen you don’t need the extra cost of the 6G‑SDI 4K model.
Sdivideo_Inputs:
1 x SD, HD or 1.5G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
Sdivideo_Outputs:
1 x SDI Loop Output.
Analog_Audio_Outputs:
2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
Digital_Audio_Outputs:
2 channels of balanced AES/EBU audio.
Sdi_Redundant_Input:
Automatically switches over if main SDI input is lost.
Multi_Rate_Support:
Auto detection of SD, HD or 1.5G‑SDI.
Updates_And_Configuration:
USB
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Videorates:
SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI.
Sdivideo_Sampling:
4:2:2
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Auto detection of SD, HD or 3G‑SDI.
Software_Control:
Mac™ and Windows™ software upgrade via USB.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Operational_Voltage_Range:
12 ‑ 15V DC
Power_Consumption:
8.04 Watts
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 x SD, HD or 1.5G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs 1 x SDI Loop Output. SDI Rates 270Mb, 1.5G Analog Video Outputs NTSC, PAL, S‑Video and component SD/HD from 1.5G‑SDI input. Analog Audio Outputs 2 channels of professional balanced analog audio with standard 1/4 inch jack connections. Digital Audio Outputs 2 channels of balanced AES/EBU audio. SDI Redundant Input Automatically switches over if main SDI input is lost. Multi Rate Support Auto detection of SD, HD or 1.5G‑SDI. Updates and Configuration USB Reclocking Yes
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601 SDI Video Rates SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI. SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Auto detection of SD, HD or 3G‑SDI. Analog Video Standards 525i29.97 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60 Analog Color Space YUV Analog Color Precision 4:2:2
Software:
Software Control Mac™ and Windows™ software upgrade via USB. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Mini Switches or USB software.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for most countries. Cable tie point. Power Consumption 8.04 Watts Operational Voltage Range 12 ‑ 15V DC
Environmental_Specifications:
Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Mini Converter SDI to Analog 12V universal power supply with international socket adapters
Warranty:
3 Year Limited Manufacturer’s Warranty.
Power_Supply:
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
Format_Conversion:
HD to SD down converter.
Operating_Temperature.1:
0° to 40° C (32° to 104° F)
Storage_Temperature.1:
-20° to 45° C (-4° to 113° F)
Analog_Video_Outputs:
NTSC, PAL, S‑Video and component SD/HD from 1.5G‑SDI input.
Analog_Color_Space:
YUV
Analog_Color_Precision:
4:2:2
Sdi_Rates:
270Mb, 1.5G
Analog_Video_Standards:
525i29.97 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60
Src:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-analog-sm.jpg?_v=1518999904
Col_1120w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-analog-md.jpg?_v=1518999904
Col_1324w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-analog-xl.jpg?_v=1518999904
Col_662w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-analog-sm.jpg?_v=1518999904
Mini Converter SDI to Analog 4K
Add to Compare
View Details
Mini Converter SDI to Analog 4K
Price:
HK$2,700
Description:
Mini Converter SDI to Analog 4K includes everything you needto convertfrom SD, HD, 3G and 6G‑SDI video to analog in HD/SD component, NTSC and PAL video. The built in down converter means you can even connect Ultra HD sources to component video in SD or HD as well as NTSC and PAL video! Easily connect any analog equipment such as Betacam SP, VHS, and video monitors!
Sdivideo_Inputs:
1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
Sdivideo_Outputs:
1 x SDI Video Loop Output.
Analog_Audio_Outputs:
2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
Digital_Audio_Outputs:
2 channels of professional balanced digital with standard 1/4 inch jack connections.
Sdi_Redundant_Input:
Automatically switches over if main SDI input is lost.
Multi_Rate_Support:
Auto detection of SD, HD or 6G‑SDI.
Updates_And_Configuration:
USB
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultrahd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Col_4k_Video_Standards:
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Videorates:
SDI video inputs are automatically detected between standard definition and high definition.
Sdivideo_Sampling:
4:2:2
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD and HD.
Software_Control:
Mac™ and Windows™ software upgrade via USB.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Operational_Voltage_Range:
12 ‑ 31V DC
Power_Consumption:
8.04 Watts
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs 1 x SDI Video Loop Output. Analog Video Outputs NTSC, PAL, S‑Video and component SD/HD from 6G‑SDI input. Analog Audio Outputs 2 channels of professional balanced analog audio with standard 1/4 inch jack connections. Digital Audio Outputs 2 channels of professional balanced digital with standard 1/4 inch jack connections. SDI Redundant Input Automatically switches over if main SDI input is lost. Multi Rate Support Auto detection of SD, HD or 6G‑SDI. Updates and Configuration USB Reclocking Yes
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601 SDI Video Rates SDI video inputs are automatically detected between standard definition and high definition. SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically detects SD and HD. Analog Format Support 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60 Analog Color Space YUV Analog Color Precision 4:2:2
Software:
Software Control Mac™ and Windows™ software upgrade via USB. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Mini Switches or USB software.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for most countries. Cable tie point. Power Consumption 8.04 Watts Operational Voltage Range 12 ‑ 31V DC
Environmental_Specifications:
Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Mini Converter SDI to Analog 4K Software CD 12V universal power supply with international socket adapters
Warranty:
3 Year Limited Manufacturer’s Warranty.
Power_Supply:
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
Format_Conversion:
HD down conversion
Operating_Temperature.1:
0° to 40° C (32° to 104° F)
Storage_Temperature.1:
-20° to 45° C (-4° to 113° F)
Analog_Video_Outputs:
NTSC, PAL, S‑Video and component SD/HD from 6G‑SDI input.
Analog_Format_Support:
525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60
Analog_Color_Space:
YUV
Analog_Color_Precision:
4:2:2
Src:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-analog-4k-sm.jpg?_v=1518999903
Col_1120w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-analog-4k-md.jpg?_v=1518999903
Col_1324w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-analog-4k-xl.jpg?_v=1518999903
Col_662w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-analog-4k-sm.jpg?_v=1518999903
Mini Converter SDI to Audio
Add to Compare
View Details
Mini Converter SDI to Audio
Price:
HK$1,800
Description:
The perfect way to de‑embed audio from any SDI source in SD and HD formats up to 1080p60! Audio is output on ¼" connectors for balanced analog and AES/EBU audio output to equipment such as mixers, analog decks, audio monitors and more. Mini Converter SDI to Audio is the ideal SD/HD SDI audio de‑embedder for when you don’t need the cost of the Ultra HD model!
Sdivideo_Inputs:
1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
Sdivideo_Outputs:
1 x SDI Loop Output.
Analog_Audio_Outputs:
4 channels of professional balanced analog audio.
Digital_Audio_Outputs:
8 channels of professional balanced AES/EBU audio.
Multi_Rate_Support:
Auto detection of SD, HD or 3G‑SDI.
Updates_And_Configuration:
Via USB 2.0 high speed. (480 Mb/s)
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Videorates:
SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI.
Sdivideo_Sampling:
4:2:2, 4:4:4
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Sdi_Color_Precision:
4:2:2, 4:4:4
Sdi_Color_Space:
YUV, RGB
Sdi_Auto_Switching:
Automatically selects between SD, HD, and 3G‑SDI.
Software_Control:
Mac™ and Windows™ software upgrade via USB.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Operational_Voltage_Range:
12 ‑ 15V DC
Power_Consumption:
5.52 Watts
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs 1 x SDI Loop Output. Analog Audio Outputs 4 channels of professional balanced analog audio. Digital Audio Outputs 8 channels of professional balanced AES/EBU audio. SDI Redundant Inputs Automatically switches over if main SDI input is lost. Multi Rate Support Auto detection of SD, HD or 3G‑SDI. Updates and Configuration Via USB 2.0 high speed. (480 Mb/s) Reclocking Yes
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601 SDI Video Rates SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI. SDI Video Sampling 4:2:2, 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2, 4:4:4 SDI Color Space YUV, RGB SDI Auto Switching Automatically selects between SD, HD, and 3G‑SDI.
Software:
Software Control Mac™ and Windows™ software upgrade via USB. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Mini Switches or USB software.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for most countries. Cable tie point. Power Consumption 5.52 Watts Operational Voltage Range 12 ‑ 15V DC
Environmental_Specifications:
Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Mini Converter SDI to Audio 12V universal power supply with international socket adapters
Warranty:
3 Year Limited Manufacturer’s Warranty.
Power_Supply:
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
Sdi_Redundant_Inputs:
Automatically switches over if main SDI input is lost.
Operating_Temperature.1:
0° to 40° C (32° to 104° F)
Storage_Temperature.1:
-20° to 45° C (-4° to 113° F)
Src:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-audio-sm.jpg?_v=1518999906
Col_1120w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-audio-md.jpg?_v=1518999905
Col_1324w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-audio-xl.jpg?_v=1518999906
Col_662w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-audio-sm.jpg?_v=1518999906
Mini Converter SDI to Audio 4K
Add to Compare
View Details
Mini Converter SDI to Audio 4K
Price:
HK$2,700
Description:
Mini Converter SDI to Audio 4K includes everything you need to de‑embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can accessthe audioin any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more!
Sdivideo_Inputs:
1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
Sdivideo_Outputs:
1 x SDI Video Loop Output.
Analog_Audio_Outputs:
4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
Digital_Audio_Outputs:
8 channels of professional balanced digital with standard 1/4 inch jack connections.
Updates_And_Configuration:
USB
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultrahd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Col_4k_Video_Standards:
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Videorates:
SDI video inputs are automatically detected between standard definition and high definition.
Sdivideo_Sampling:
4:2:2, 4:4:4
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Sdi_Color_Precision:
4:2:2, 4:4:4
Sdi_Color_Space:
YUV, RGB
Sdi_Auto_Switching:
Automatically selects between SD, HD, 3G and 6G‑SDI.
Software_Control:
Mac™ and Windows™ software upgrade via USB.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Operational_Voltage_Range:
12V ‑ 31V DC
Power_Consumption:
5.52 Watts
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs 1 x SDI Video Loop Output. SDI Redundant Inputs Automatically switches over if main SDI input is lost. Analog Audio Outputs 4 channels of professional balanced analog audio with standard 1/4 inch jack connections. Digital Audio Outputs 8 channels of professional balanced digital with standard 1/4 inch jack connections. Multi Rate Support Auto detection SD, HD or 6G‑SDI. Updates and Configuration USB Reclocking Yes
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601 SDI Video Rates SDI video inputs are automatically detected between standard definition and high definition. SDI Video Sampling 4:2:2, 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2, 4:4:4 SDI Color Space YUV, RGB SDI Auto Switching Automatically selects between SD, HD, 3G and 6G‑SDI.
Software:
Software Control Mac™ and Windows™ software upgrade via USB. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Mini Switches or USB software.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for most countries. Cable tie point. Power Consumption 5.52 Watts Operational Voltage Range 12V ‑ 31V DC
Environmental_Specifications:
Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Mini Converter SDI to Audio 4K 12V universal power supply with international socket adapters
Warranty:
3 Year Limited Manufacturer’s Warranty.
Power_Supply:
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
Sdi_Redundant_Inputs:
Automatically switches over if main SDI input is lost.
Multirate_Support:
Auto detection SD, HD or 6G‑SDI.
Operating_Temperature.1:
0° to 40° C (32° to 104° F)
Storage_Temperature.1:
-20° to 45° C (-4° to 113° F)
Src:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-audio-4k-sm.jpg?_v=1518999905
Col_1120w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-audio-4k-md.jpg?_v=1518999905
Col_1324w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-audio-4k-xl.jpg?_v=1518999905
Col_662w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-audio-4k-sm.jpg?_v=1518999905
Mini Converter SDI to HDMI 6G
Add to Compare
View Details
Mini Converter SDI to HDMI 6G
Price:
HK$1,650
Description:
Mini Converter SDI to HDMI 6G lets you convert from SDI to HDMI in SD, HD, and Ultra HD formats while de-embeding audio to HDMI, AES/EBU or balanced analog audio. You also get advanced features such as down conversion for monitoring Ultra HD on HD HDMI monitors as well as built in 3D LUTs plus HDMI instant lock forinstant videodisplay when an SDI input is connected!
Sdivideo_Inputs:
1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
Sdivideo_Outputs:
1 x SDI Video Loop Output.
Hdmi_Video_Outputs:
HDMI type A out.
Analog_Audio_Outputs:
2 channels of balanced analog audio.
Digital_Audio_Outputs:
2 channels of AES/EBU digital audio
Sdi_Redundant_Input:
Automatically switches over if main SDI input is lost.
Multi_Rate_Support:
Auto detection of SD, HD or 6G‑SDI.
Updates_And_Configuration:
USB
Reclocking:
Yes
Sd_Video_Standards:
625i50 PAL, 525i59.94 NTSC
Hd_Video_Standards:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
Col_2k_Video_Standards:
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultrahd_Video_Standards:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Col_4k_Video_Standards:
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Videorates:
SDI video inputs are automatically detected between standard definition and high definition.
Sdivideo_Sampling:
4:2:2 and 4:4:4
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Sdi_Color_Precision:
4:2:2 and 4:4:4
Sdi_Color_Space:
YUV and RGB
Sdi_Auto_Switching:
Automatically detects SD, HD or 6G‑SDI.
Hdmi_Video_Standards:
625i50 PAL, 525i59.94 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
Hdmi_Color_Space:
YUV and RGB
Hdmi_Color_Precision:
4:2:2 and 4:4:4
Software_Control:
Mac OS and Windows software upgrade via USB.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Operational_Voltage_Range:
12 ‑ 18V DC
Power_Consumption:
5.2 Watts
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non-condensing
Connections:
SDI Video Inputs 1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails. SDI Video Outputs 1 x SDI Video Loop Output. HDMI Video Outputs HDMI type A out. Analog Audio Outputs 2 channels of balanced analog audio. Digital Audio Outputs 2 channels of AES/EBU digital audio SDI Redundant Input Automatically switches over if main SDI input is lost. Multi Rate Support Auto detection of SD, HD or 6G‑SDI. Updates and Configuration USB Reclocking Yes
Standards:
SD Video Standards 625i50 PAL, 525i59.94 NTSC HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601 SDI Video Rates SDI video inputs are automatically detected between standard definition and high definition. SDI Video Sampling 4:2:2 and 4:4:4 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2 and 4:4:4 SDI Color Space YUV and RGB SDI Auto Switching Automatically detects SD, HD or 6G‑SDI. HDMI Video Standards 625i50 PAL, 525i59.94 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 HDMI Color Space YUV and RGB HDMI Color Precision 4:2:2 and 4:4:4
Software:
Software Control Mac OS and Windows software upgrade via USB. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Mini Switches or USB software.
Power_Requirements:
+12V universal power supply included with international socket adapters for most countries. Cable tie point. Operational Voltage Range 12 ‑ 18V DC Power Consumption 5.2 Watts
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Whats_Included:
Mini Converter SDI to HDMI 6G 12V universal power supply with international socket adapters
Warranty:
3 Year Limited Manufacturer’s Warranty.
Src:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-hdmi-6g-sm.jpg?_v=1518999906
Col_1120w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-hdmi-6g-md.jpg?_v=1518999906
Col_1324w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-hdmi-6g-xl.jpg?_v=1518999907
Col_662w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sdi-to-hdmi-6g-sm.jpg?_v=1518999906
Mini Converter Sync Generator
Add to Compare
View Details
Mini Converter Sync Generator
Price:
HK$1,800
Description:
Includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri‑Sync or standard definition Blackburst television standards.Perfect for smallstudios and outside broadcasts!
Multi_Rate_Support:
Via mini switches
Updates_And_Configuration:
USB
Software_Control:
Mac™ and Windows™ software upgrade via USB.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Operational_Voltage_Range:
12V DC
Power_Consumption:
3.00 Watts
Relative_Humidity:
0% to 90% non‑condensing
Connections:
Analog Video Outputs 6 x common Blackburst or Tri Level reference outputs. SDI Rates 270Mb, 1.5G. Multi Rate Support Via mini switches Updates and Configuration USB
Standards:
Analog Format Support 525i29.97 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
Software:
Software Control Mac™ and Windows™ software upgrade via USB. Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Settings_Control:
Mini Switches or USB software.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for most countries. Cable tie point. Power Consumption 3.00 Watts Operational Voltage Range 12V DC
Environmental_Specifications:
Operating temperature 0° to 40° C (32° to 104° F) Storage temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Whats_Included:
Mini Converter Sync Generator 12V universal power supply with international socket adapters
Warranty:
3 Year Limited Manufacturer’s Warranty.
Power_Supply:
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
Operating_Temperature.1:
0° to 40° C (32° to 104° F)
Storage_Temperature.1:
-20° to 45° C (-4° to 113° F)
Analog_Video_Outputs:
6 x common Blackburst or Tri Level reference outputs.
Analog_Format_Support:
525i29.97 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
Sdi_Rates:
270Mb, 1.5G.
Src:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sync-generator-sm.jpg?_v=1518999907
Col_1120w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sync-generator-md.jpg?_v=1518999907
Col_1324w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sync-generator-xl.jpg?_v=1518999907
Col_662w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-sync-generator-sm.jpg?_v=1518999907
Mini Converter UpDownCross HD
Add to Compare
View Details
Mini Converter UpDownCross HD
Price:
HK$1,350
Description:
Mini Converter UpDownCross HD is a full standards converter that lets you convert any SD or HD video format to any other SD or HD video format! You get both SDI and HDMI inputs and outputs,along with referenceinput for built in re‑sync, high qualityTeranex conversionalgorithms, automatic audio delay forperfect AV sync, internationalpower supply and more!
Sdivideo_Inputs:
1 x SD, HD or 3G‑SDI Video Input and 1 x External Reference Input.
Sdivideo_Outputs:
1 x loop out and 2 x outputs
Multi_Rate_Support:
Auto detection of HD or standard definition SDI inputs.
Updates_And_Configuration:
USB
Reclocking:
Yes
Sd_Video_Standards:
525i59.94 NTSC, 625i50 PAL
Hd_Video_Standards:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
Sdi_Compliance:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601
Sdi_Videorates:
SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI.
Sdivideo_Sampling:
4:2:2
Sdi_Audio_Sampling:
Television standard sample rate of 48 kHz and 24 bit.
Sdi_Color_Precision:
4:2:2
Sdi_Color_Space:
YUV
Sdi_Auto_Switching:
Automatically detects SD, HD or 3G‑SDI.
Internal_Software_Upgrade:
Via included updater application.
Na:
Windows 10, 64-bit.
Operational_Voltage_Range:
6 to 36 Vdc.
Power_Consumption:
5W
Operating_Temperature:
0° to 40° C (32° to 104° F)
Storage_Temperature:
-20° to 45° C (-4° to 113° F)
Relative_Humidity:
0% to 90% non‑condensing
Connections:
SDI Video Inputs 1 x SD, HD or 3G‑SDI Video Input and 1 x External Reference Input. HDMI Video Input 1 x HDMI type A connector. SDI Video Outputs 1 x loop out and 2 x outputs HDMI Video Output HDMI type A out. Output supports EDID of the monitor. SDI Rates 270Mb, 1.5G, 3G. Reference Input Black burst and Tri‑Sync for SD & HD. Multi Rate Support Auto detection of HD or standard definition SDI inputs. Updates and Configuration USB Reclocking Yes
Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 HDMI Input Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601 SDI Video Rates SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI. SDI Metadata Support Timecode and closed captioning. SDI Video Sampling 4:2:2 SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD or 3G‑SDI.
Software:
Internal Software Upgrade Via included updater application.
Operating_Systems:
Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit.
Power_Requirements:
Power Supply +12V universal power supply included with international socket adapters for most countries. Power Consumption 5W Operational Voltage Range 6 to 36 Vdc.
Environmental_Specifications:
Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non‑condensing
Power_Supply:
+12V universal power supply included with international socket adapters for most countries.
Format_Conversion:
Video Conversion Convert any SD and HD input to "720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60" Computer Scaling Scale DVI resolutions 640x480, 800x600, 1024x768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Sdi_Rates:
270Mb, 1.5G, 3G.
Hdmi_Video_Input:
1 x HDMI type A connector.
Hdmi_Video_Output:
HDMI type A out. Output supports EDID of the monitor.
Reference_Input:
Black burst and Tri‑Sync for SD & HD.
Hdmi_Input_Video_Standards:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Sdi_Metadata_Support:
Timecode and closed captioning.
Video_Conversion:
Convert any SD and HD input to "720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60"
Computer_Scaling:
Scale DVI resolutions 640x480, 800x600, 1024x768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Src:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-updowncross-hd-sm.jpg?_v=1519186932
Col_1120w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-updowncross-hd-md.jpg?_v=1519186932
Col_1324w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-updowncross-hd-xl.jpg?_v=1519186931
Col_662w:
https://images.blackmagicdesign.com/images/products/miniconverters/techspecs/hero/mini-converter-updowncross-hd-sm.jpg?_v=1519186932
×
